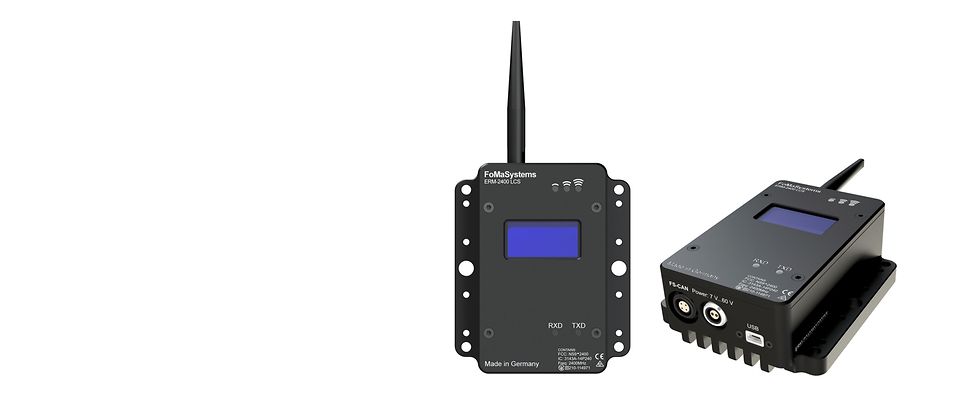

ERM-2400 LCS

Range Extender Solution

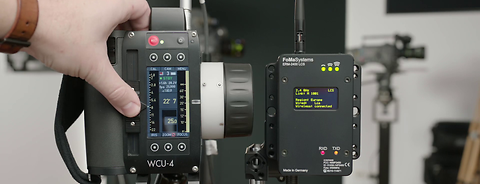

The ERM-2400 LCS radio module connects ARRI and cmotion hand units to cameras and motor controllers and extends an LCS, LBUS, EXT (CAN bus) cable connection over air.

Features

Best overall production value

Long-range wireless link for ECS devices
Point-to-point only connection (only one hand unit connecting to one camera device)
2.4 GHz spread spectrum for long range, robust radio connection
Typical range approx. 1.000 meters / 3.280 feet

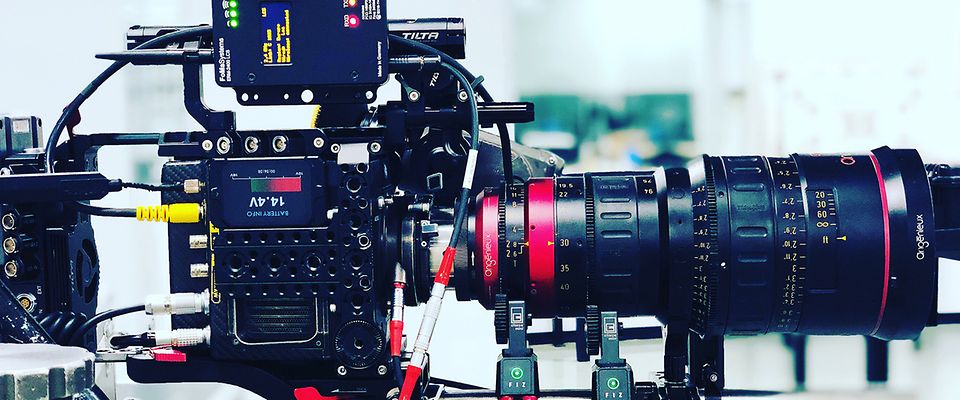

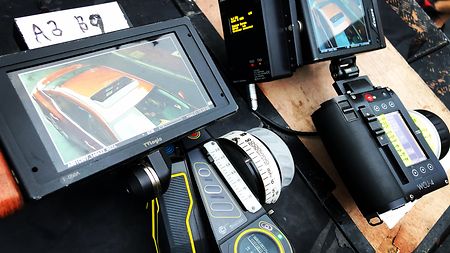

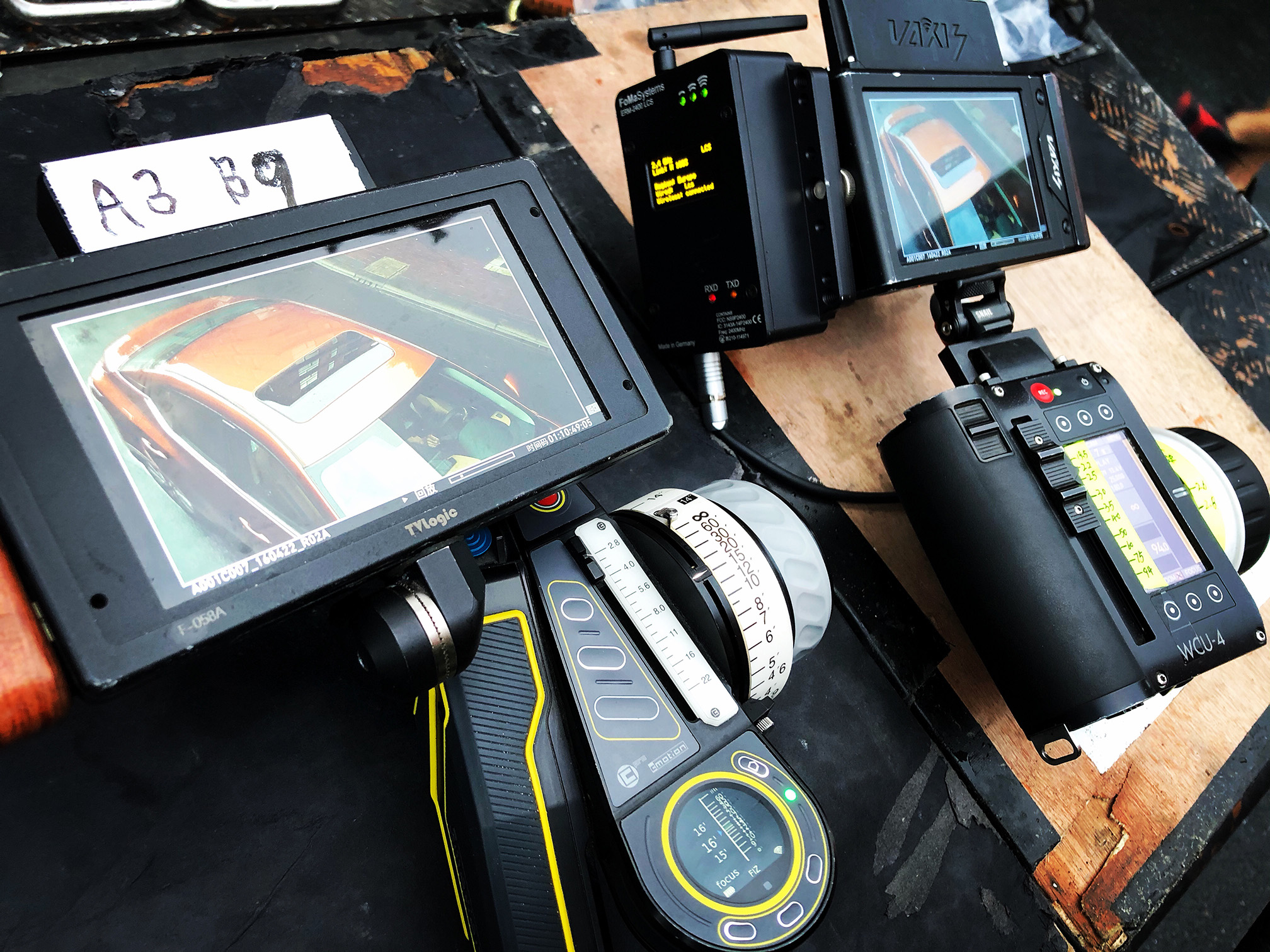

Useful for big car chase sequences where the camera is rigged on a car

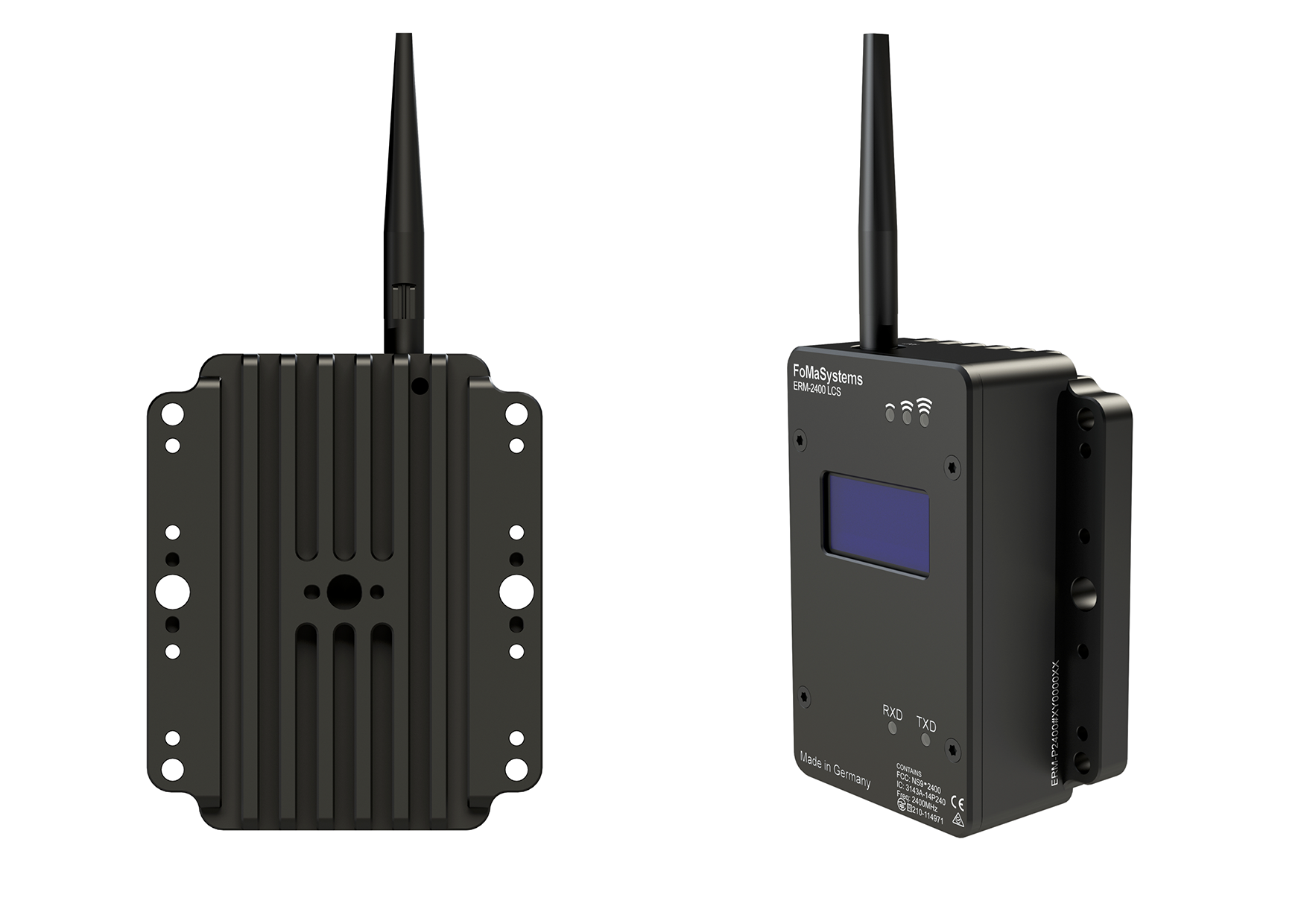

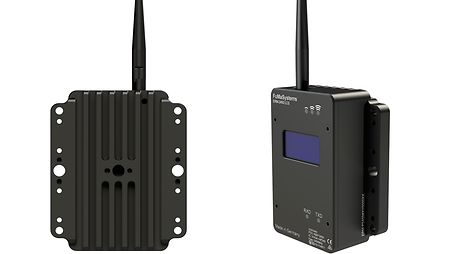

ERM 2400 LCS Best overall features Kopie

Credits

Quotes

During a challenging Steadicam shot throughout multiple rooms of a house, the ERM’s robust and reliable connection provided secure lens control where wireless signals may otherwise be compromised. The ERM provided reliability and exceptional range to a lead vehicle whilst the camera was mounted on the bonnet of a car. As iris control with the OCU‑1, the ERM provides the DP with a clear and precise electronic iris scale, allowing smooth and accurate adjustments.

1^stAC Pim Kulk (Known for: “Doctor Doctor” (Season 5) for Easy Tiger Productions and Nine Network Australia)

ERM-2400 is a Intelligent compatible connection for LCS,LBUS or EXT signal extend. More choose for Director, DP, DIT and first AC. Give you 1 kilometer distance readout of ultrasonic rangefinder, which is amazing!

1^st AC Lee Huailin (Known for: Commercials)

ERM-2400 LCS for the first time on set: 1^st AC Richard Copeman (Known for Blackbird, Anti Matter, Bridget Jones’s Baby, Jason Bourne, The Huntsman & the Ice Queen, Taking Stock, Dracula Untold and many more)

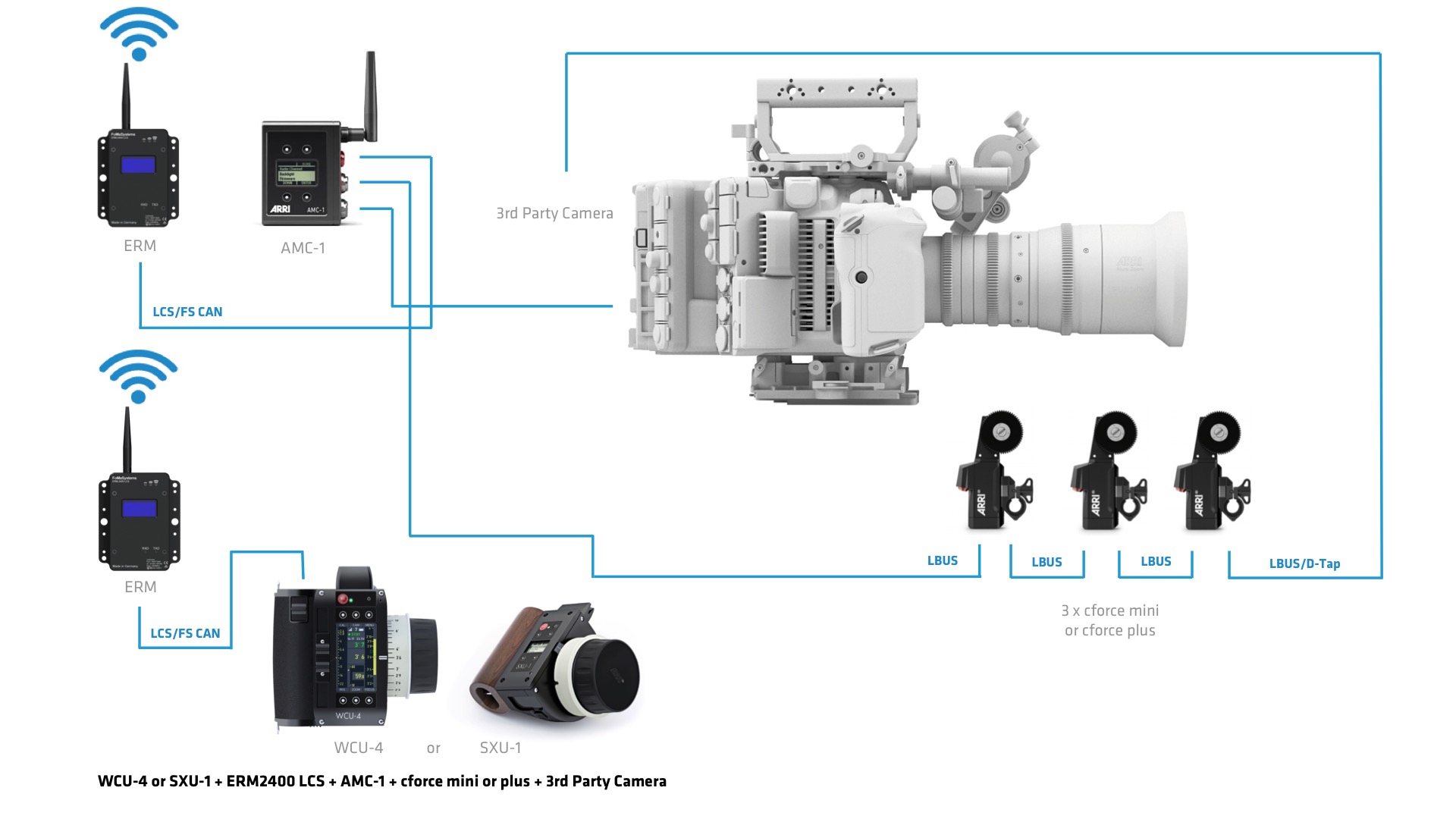

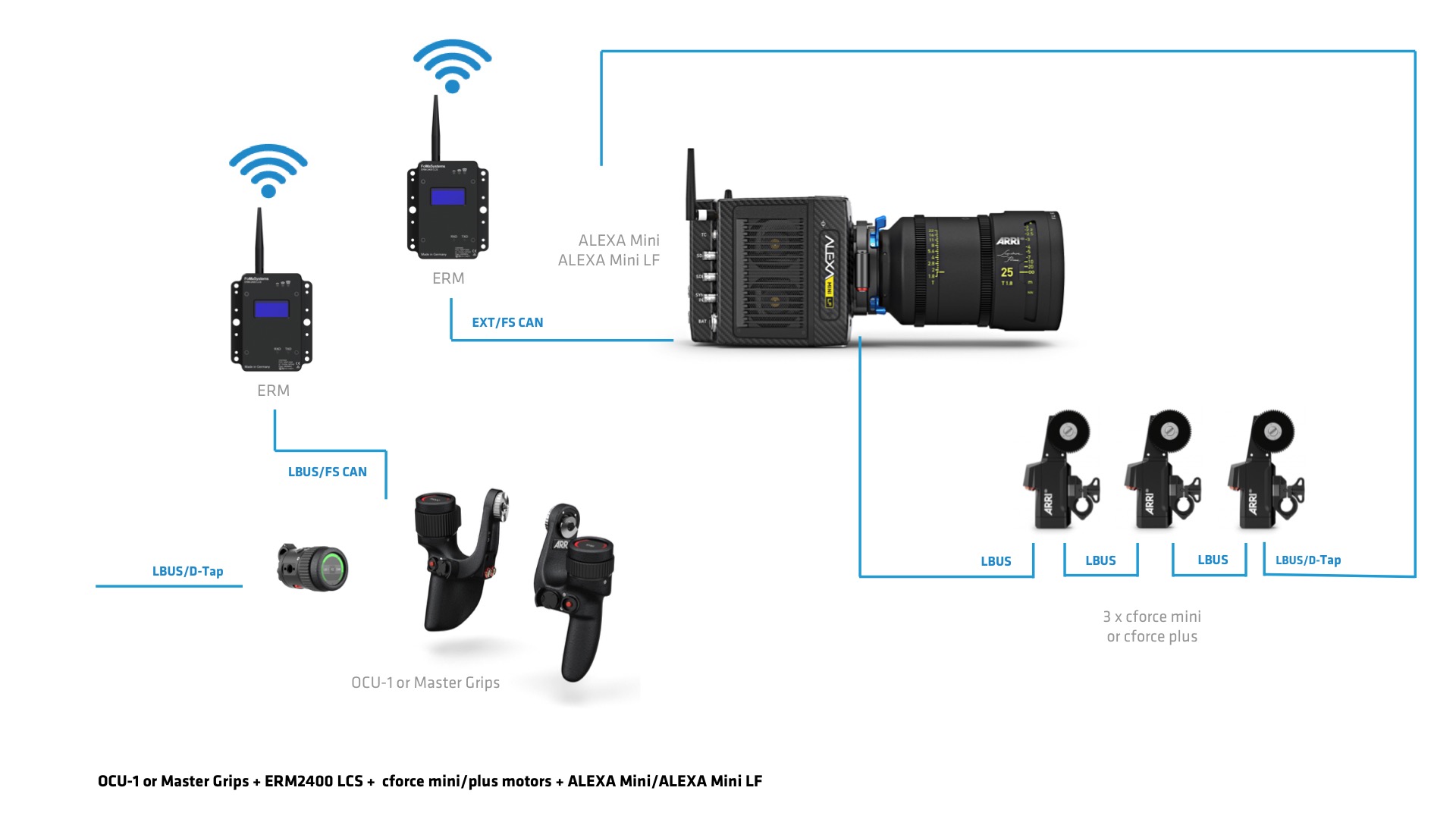

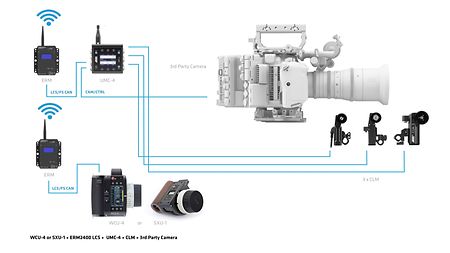

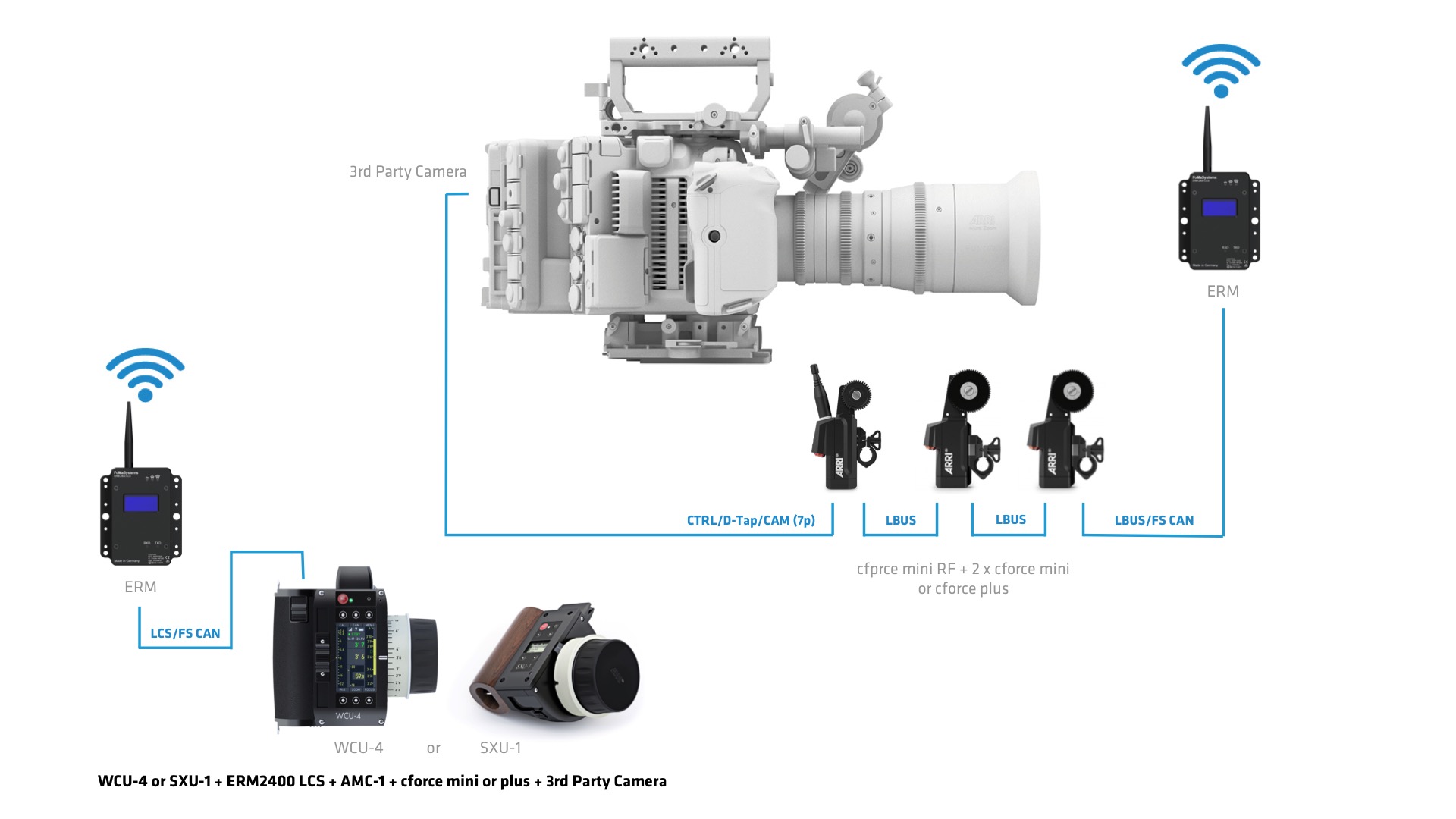

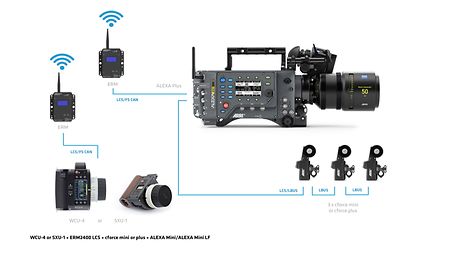

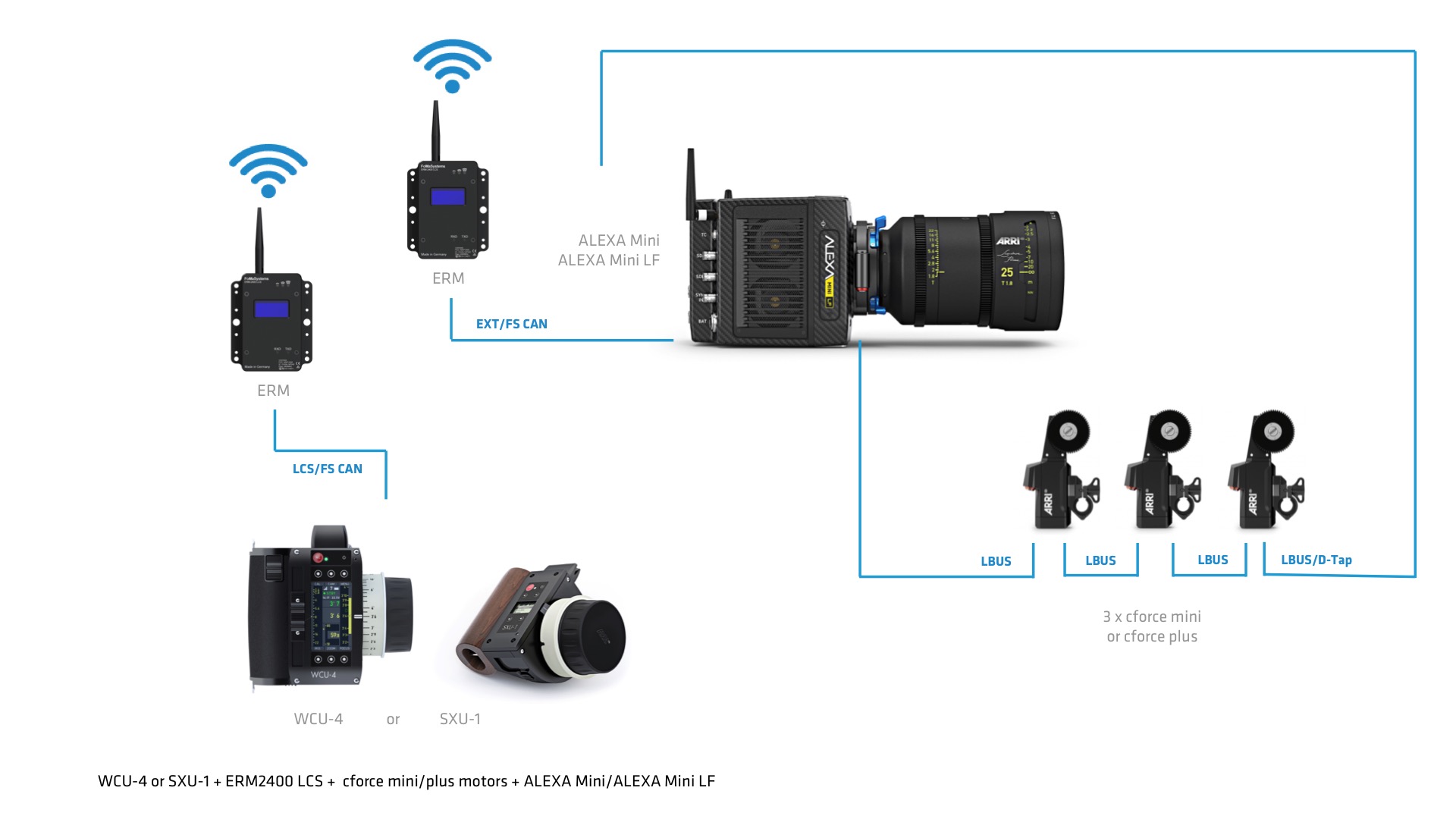

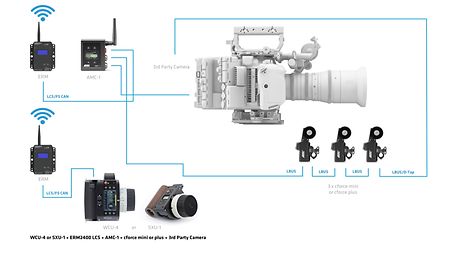

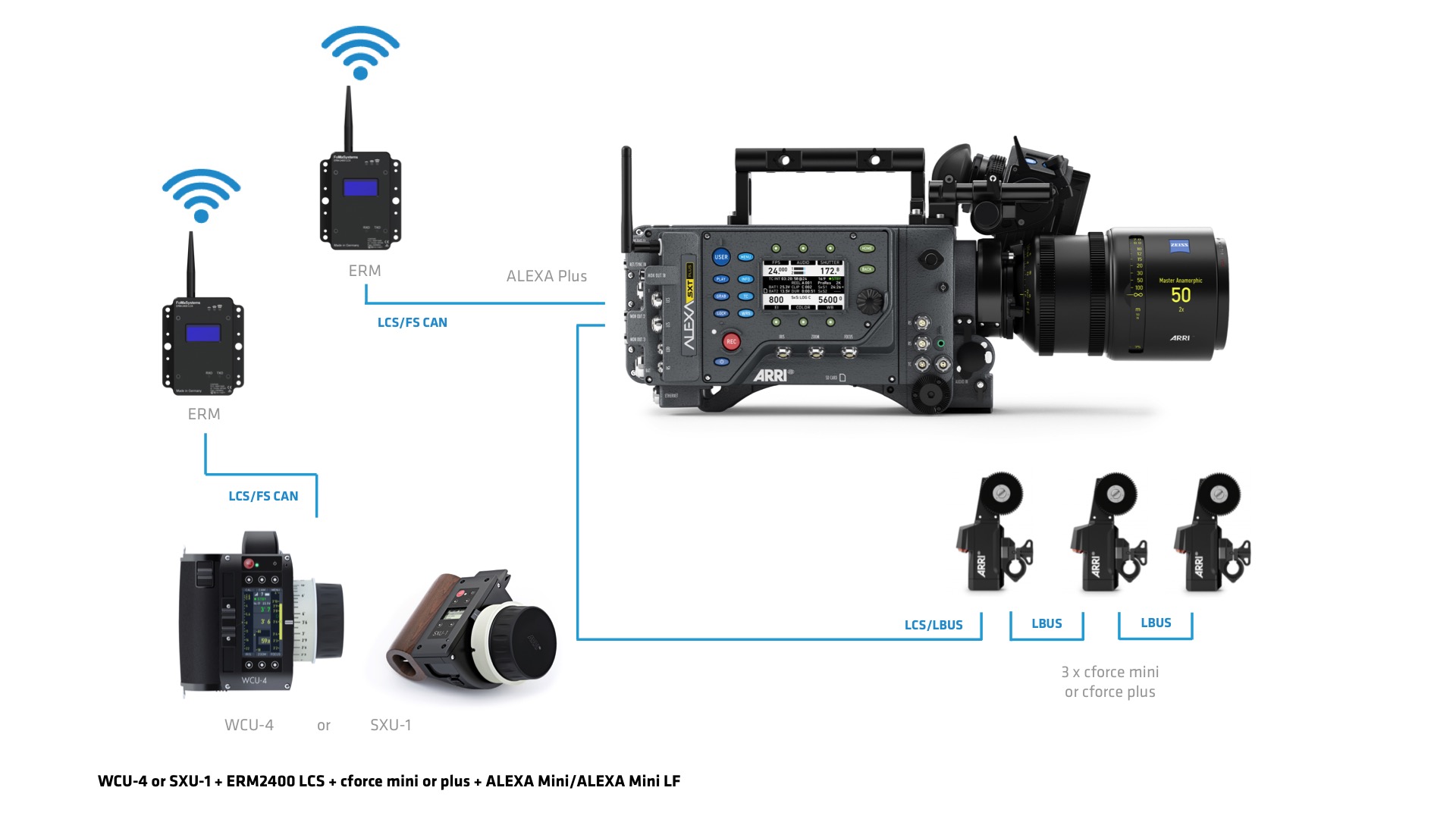

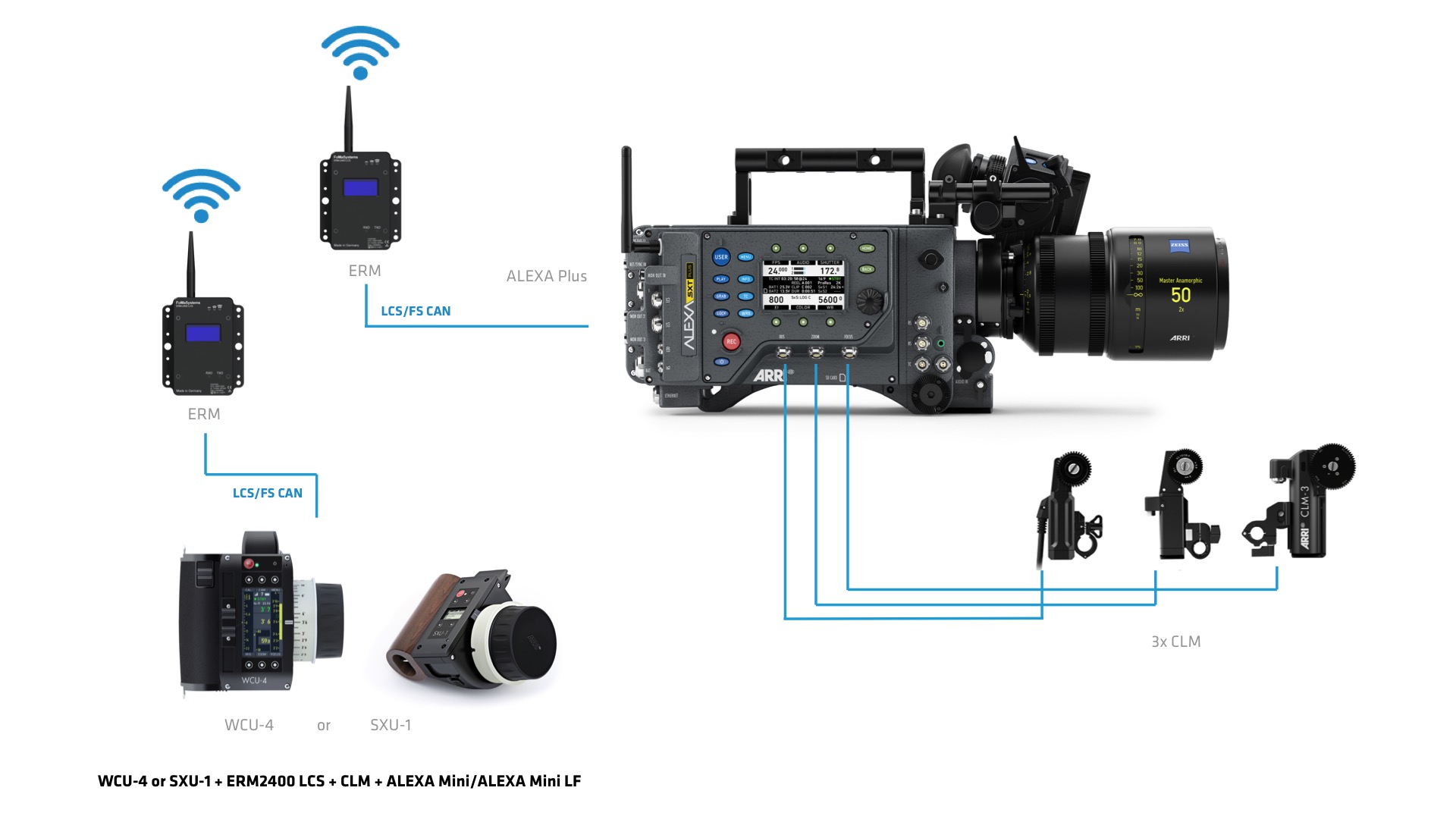

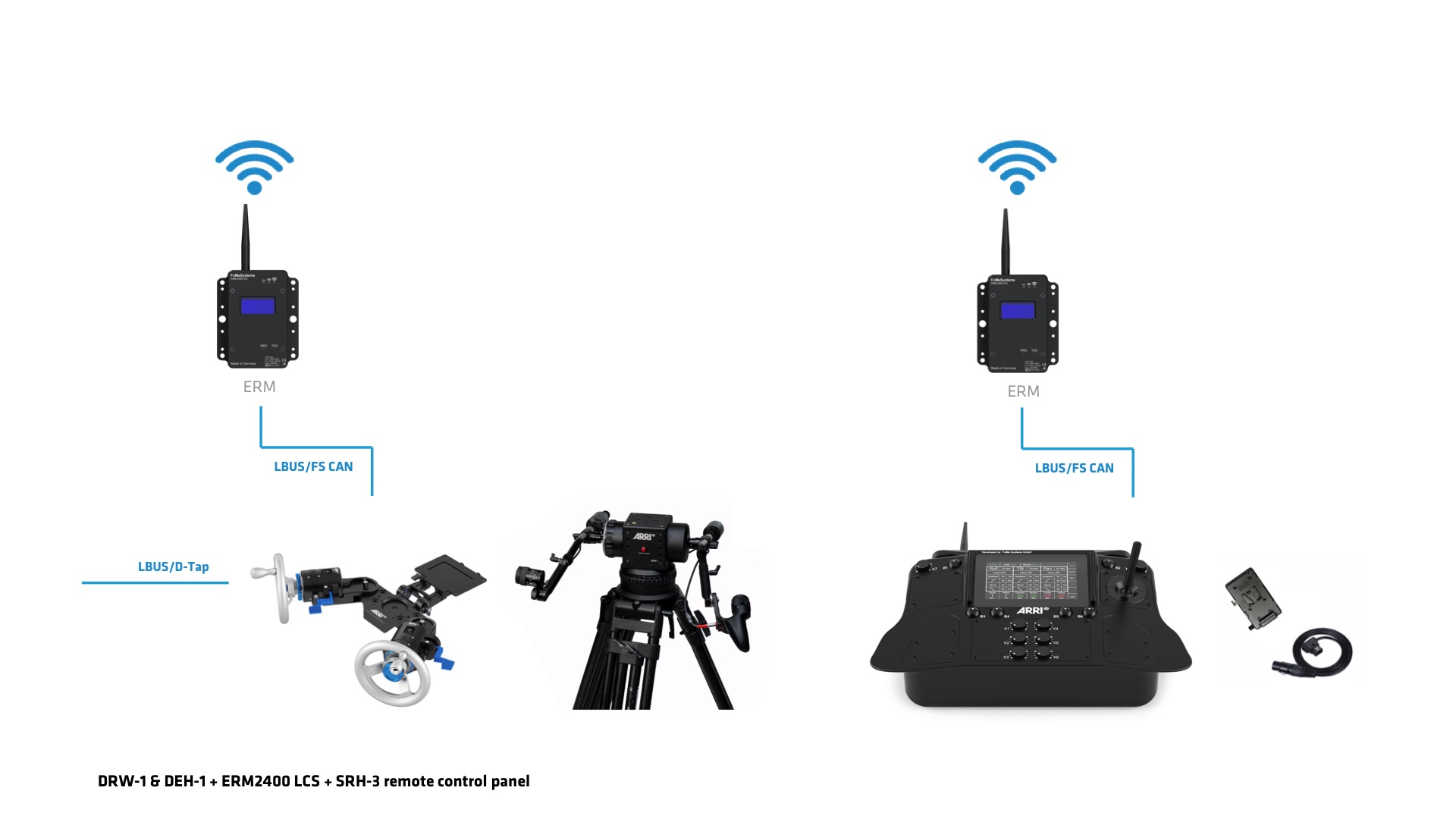

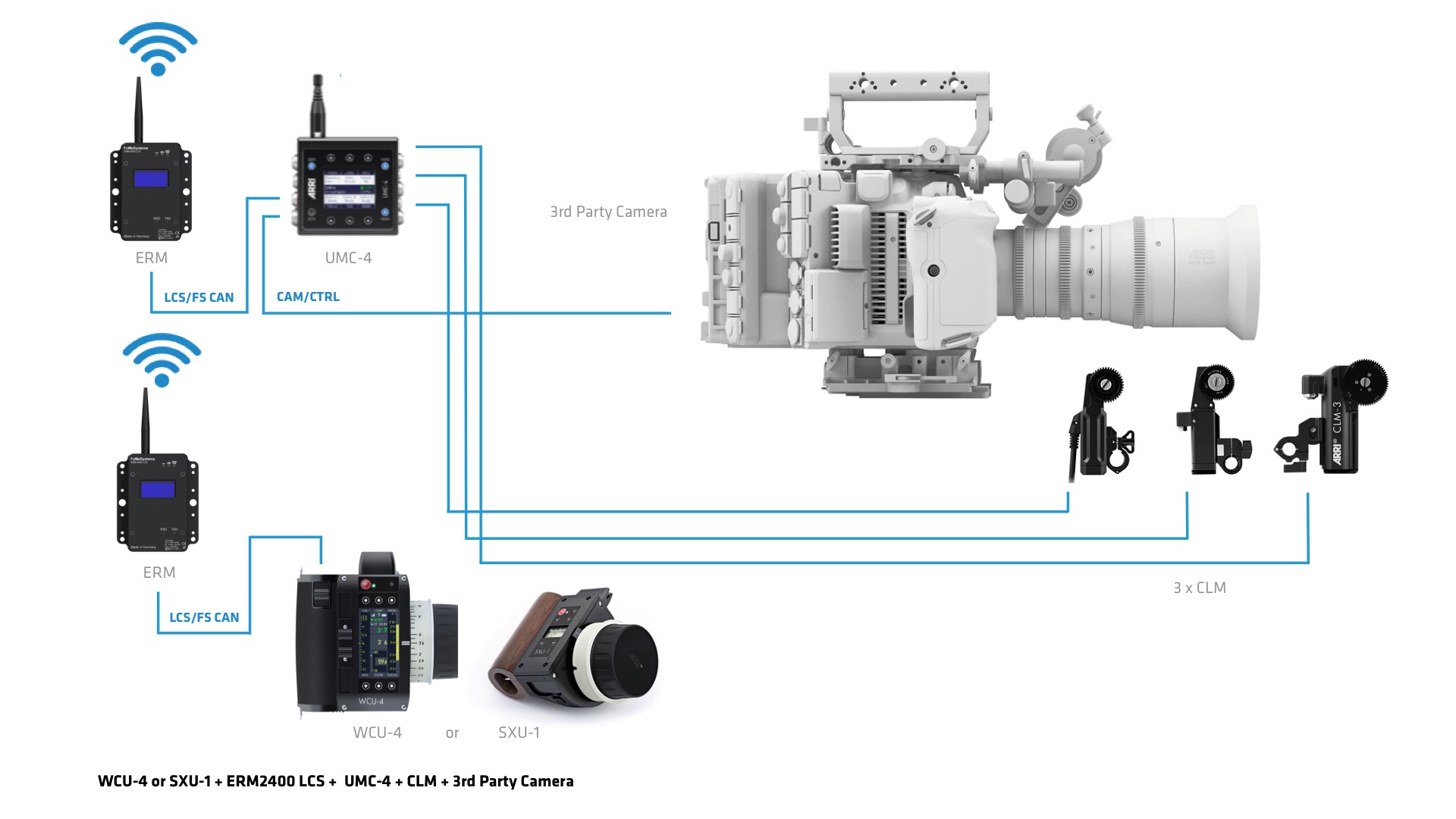

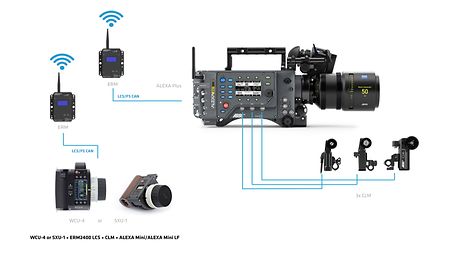

Compatibility

ERM-2400 LCS Pro Set

ERM-2400 Ext 2.4 GHz RXD-TXD Pro Set LCS

KK.0040048

An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras a...
- Show Components
ERM-2400 Rubber Duck Antenna

K2.0033763

Spare rubber duck antenna For ERM-2400 (K2.0033763) and RF-2400 Radio Module 2400 MHz FHSS (KK.0039984)
ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft

K2.0036900

Adapter cable to connect the ERM LCS to the WCU-4, SXU-1 UMC-4 and ALEXA Plus camera via the LCS socket. Recommended and required optional extension cables: SRH FS CAN Bu...
ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65ft

K2.0036903

Adapter cable to connect the ERM LCS to Master Grips, OCU-1, DRW-1 and DEH-1 via the LBUS socket. Recommended and required optional extension cables: SRH FS CAN Bus Cable...
ERM EXT. to FS CAN Bus Adapter Cable, 0.2m/0.65ft

K2.0036901

Adapter cable to connect the ERM LCS to ALEXA Mini, ALEXA Mini LF and Amira via the EXT. socket. Recommended and required additonl extension cables: SRH FS CAN Bus Cable,...
ERM D-Tap Pwr Cable, 0B Lemo 2pin to D-Tap, 1m/3.2ft

K2.0036902

ERM-2400 LCS Set

ERM-2400 Ext 2.4 GHz RXD-TXD Pro Set LCS

KK.0040048

An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras a...
- Show Components
ERM-2400 Rubber Duck Antenna

K2.0033763

Spare rubber duck antenna For ERM-2400 (K2.0033763) and RF-2400 Radio Module 2400 MHz FHSS (KK.0039984)

Required, optional extension cables

SRH FS CAN Bus Cable, 1 m/ 3.2'

K2.0033762

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...
SRH FS CAN Bus Cable, 5 m/16.4'

K2.0037701

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...
SRH FS CAN Bus Cable, 10 m/32.8'

K2.0019302

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...
SRH FS CAN Bus Cable, 25 m/82'

K2.0019301

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...

Recommended Cables

SRH FS CAN Bus Cable, 1 m/ 3.2'

K2.0033762

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...
SRH FS CAN Bus Cable, 10 m/32.8'

K2.0019302

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...
SRH FS CAN Bus Cable, 25 m/82'

K2.0019301

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.003375...

Recommended Mechanical Accessories

Rod Mounting Bracket RMB-3

K2.0006186

The RMB-3 supports a single 19 mm rod (15 mm rod via reduction insert K2.66255.0) and is well suited to accessories such as lens motors or lightweight viewfinder mounts.
Rod Mounting Bracket RMB-6

K2.0020163

The Rod Mounting Bracket RMB-6 expands camera set-ups opportunities by offering strong support to rod-mounted camera accessories such as lens motors, image transmitters or ...

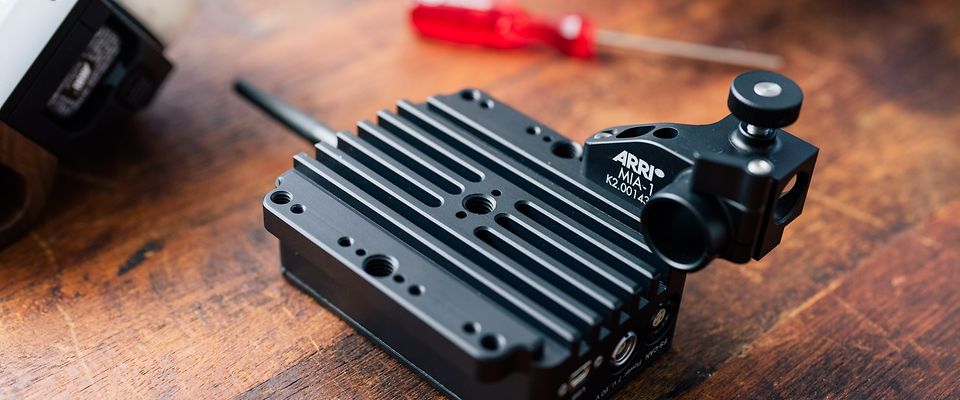

Multi Interface Adapter MIA-1

K2.0014323

An adapter that attaches to the Wireless Video Receiver WVR-1 or Wireless Video Transmitter WVT-1 and accepts a 5/8" lighting spigot or a 19 mm rod.
Support Rods 150mm/5.9in, Ø19mm

K2.0016090

One pair Ø 19 mm, stainless steel, lightweight
Support Rods 90mm/3.5in, Ø19 mm

K2.0016088

One pair Ø 19 mm, stainless steel, lightweight

ERM-2400 LCS FAQ

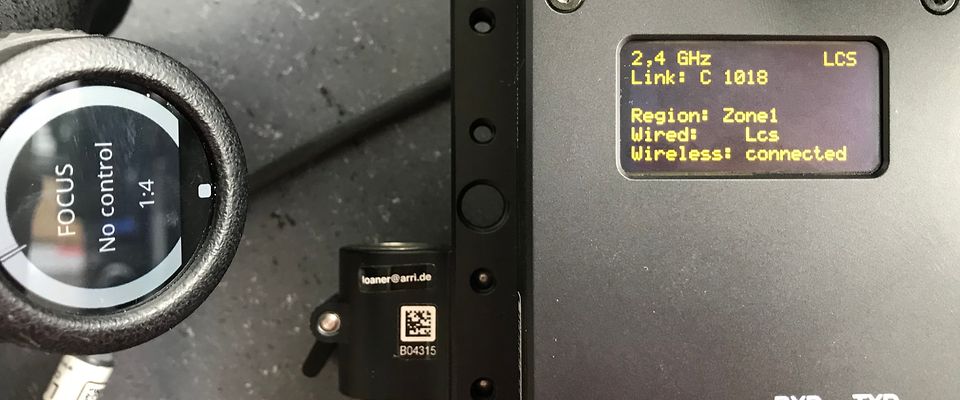

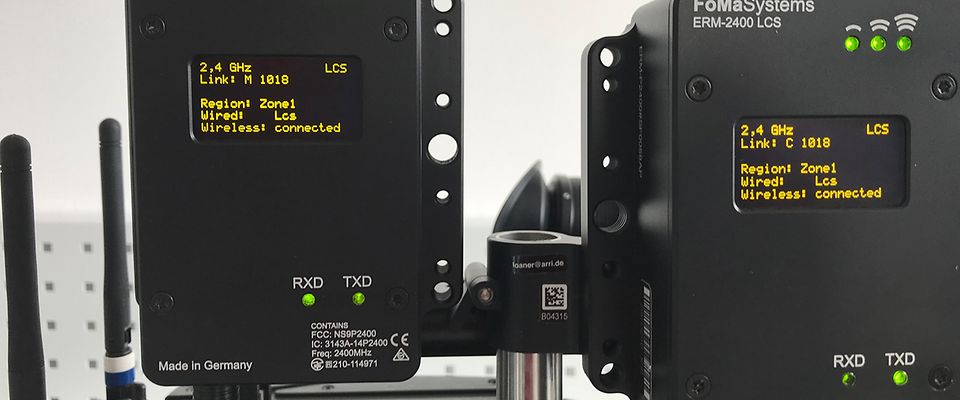

Yes. The ERM-2400 LCS comes as a pre-configured paired set of two radio modules.

If one ERM is damaged, you can use any other ERM-2400 LCS module but you need to get it paired as a new set with the remaining module done by ARRI Service.

No.

Tech Tips & Tech Talks

Feb. 4, 2021

ARRI TECH TALK Live: Electronic Control System

New possibilities for DPs, 1st ACs and DITs with the latest ECS accessories.
In this TECH TALK Live event, you will discover new possibilities with the latest ECS accessories, including the ERM-2400 LCS radio module and the Operator Control Unit OCU‑1.
Learn how to use the ERM-2400 LCS as a range extender solution for various devices like the WCU‑4 and SXU-1 hand units, ALEXA Mini LF and ALEXA LF, and the OCU‑1.

Nov. 13, 2020

ARRI Tech Talk: External Radio Modules for Camera and Lens Control

Join Sean Dooley, Sales Manager of ARRI Australia, as he demonstrates a variety of different ways you can use an ERM to extend your control on set: from common use cases on set to unusually flexible setups that allow your imagination to run free.
