ARRIMAX 18/12

More light, less work

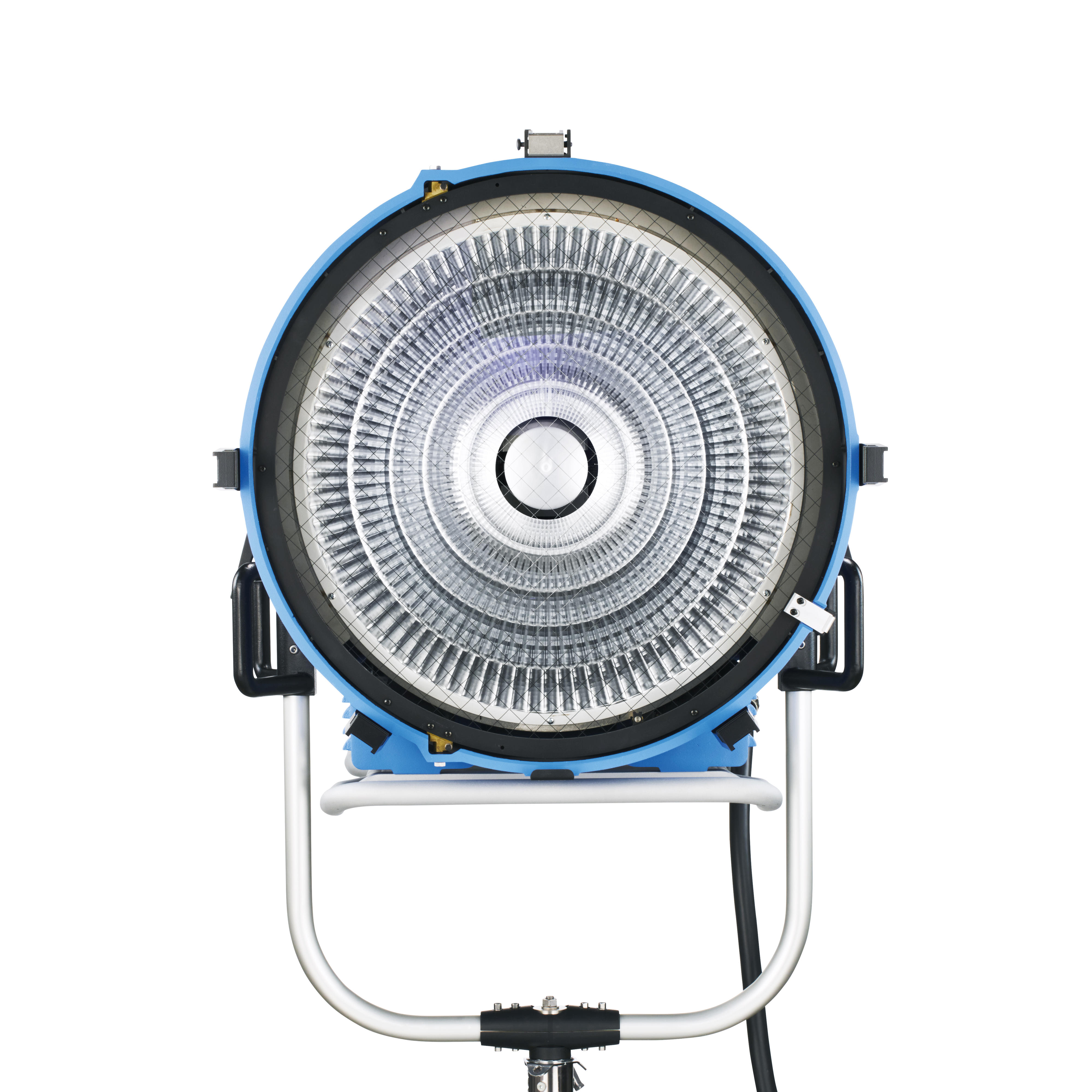

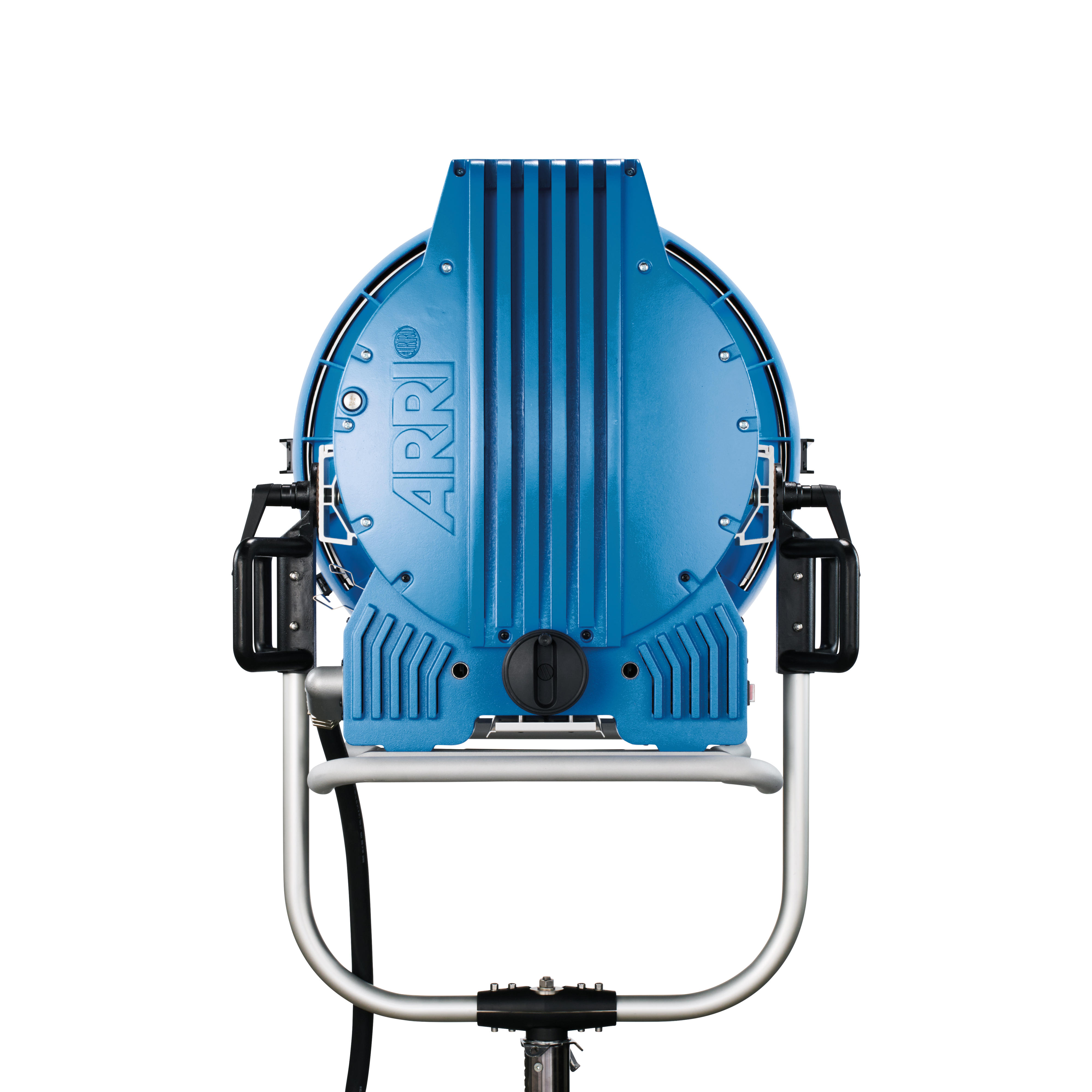

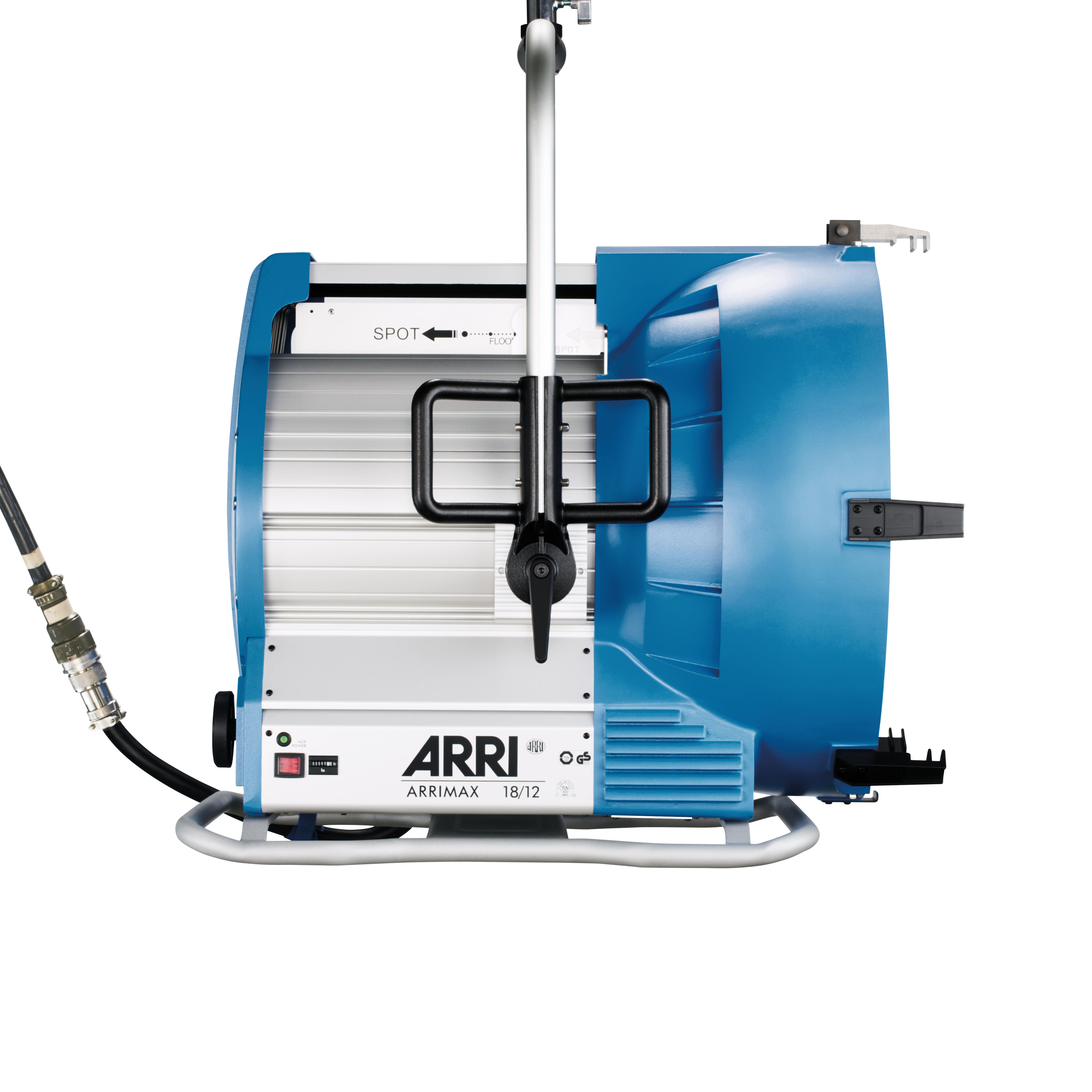

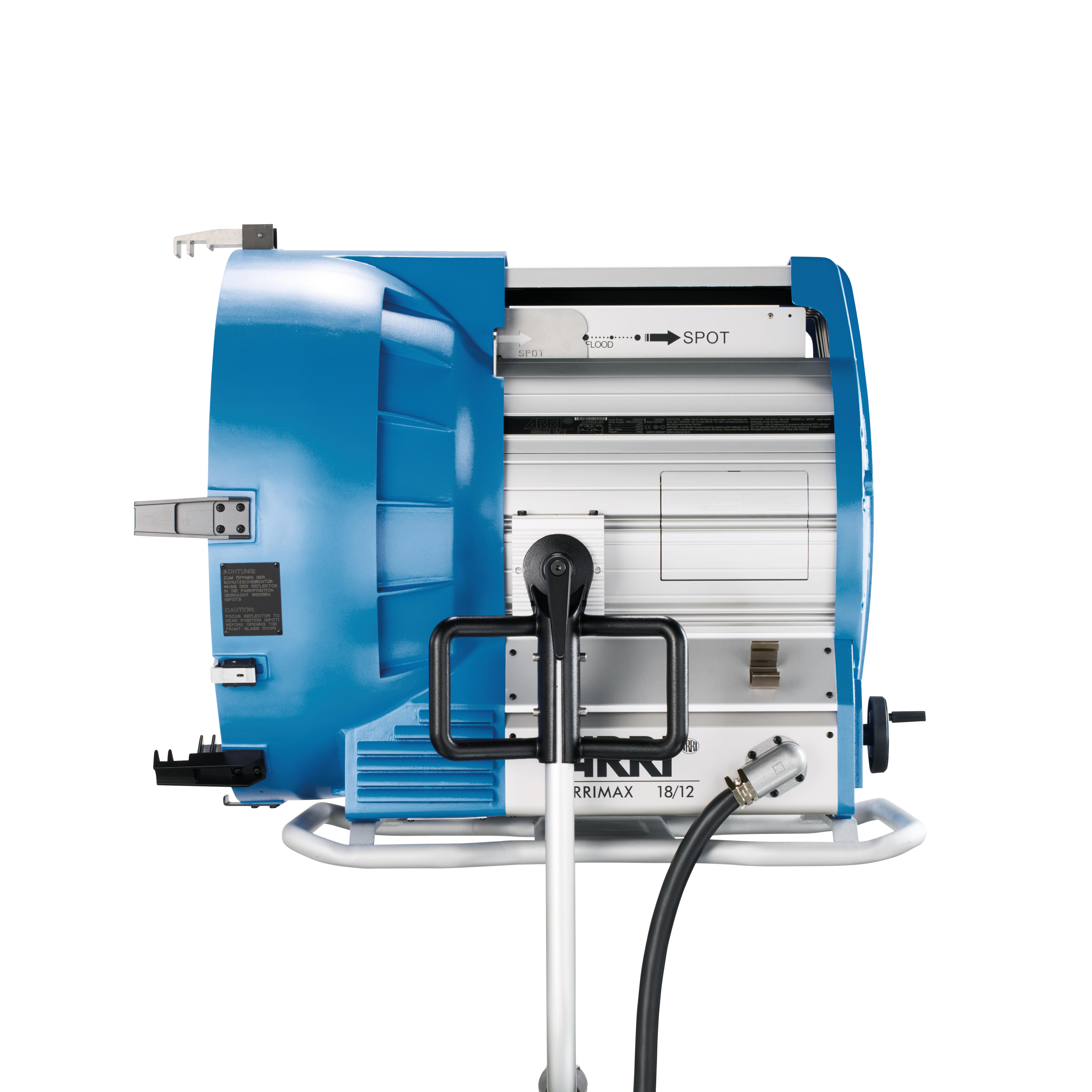

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.

Technical Data
Category
Daylight
Series
M-Series
Model
ARRIMAX 18/12
Mains Plug
VEAM
Lamphead Type
Open Face with Facetted Reflector, 12,000 / 18,000 W
Reflector
MAX Technology reflector made of high purity aluminium
Lamp Type
Metal Halide 18,000 W/SE; Metal Halide 12,000 W/SE
Power Consumption
18,000 W / 12,000 W
Voltage Range
225 V / 160 V
Lamp Base
GX51 / GX38
Dimming
yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature
approx. 5,600 K
Beam Angle
15° to 50° (with 18,000 W lamp)
Weight in kg net*
approx. 70 kg
Weight in kg packed*
approx. 99 kg
Weight in lbs. net*
approx. 154 lbs
Weight in lbs. Packed*
approx. 218 lbs
Measurements (HxWxL) incl. Pin in mm*
1270 x 784 x 942 mm
Measurements (HxWxL) excl. Pin in mm*
1155 x 784 x 942 mm
Measurements (HxWxL) incl. Pin in inch*
50.0 x 30.9 x 37.1"
Measurements (HxWxL) excl. Pin in inch*
45.5 x 30.9 x 37.1"
Measurements (HxWxL) Packed size in mm*
1050 x 1170 x 1135 mm
Measurements (HxWxL) Packed size in inch*
41.3 x 46.1 x 44.7"
Lens / UV-Protection Glass Diameter in mm
646 mm
Lens Diameter in inch
25.4"
Accessory Diameter in mm
740 mm
Accessory Diameter in inch
29.1" (Scrim)
Barndoor in mm
740 mm
Barndoor in inch
29.1"
Mounting
Spigot 28 mm / 1 1/8" (1.1")
Housing Color
Blue/Silver
Protection Class / IP Rating
I / IP23
Certifications
CE, CB, GS, cNRTLus

Note *Weight and dimensions are rounded values.
