Ensō Prime lenses

Creative flow

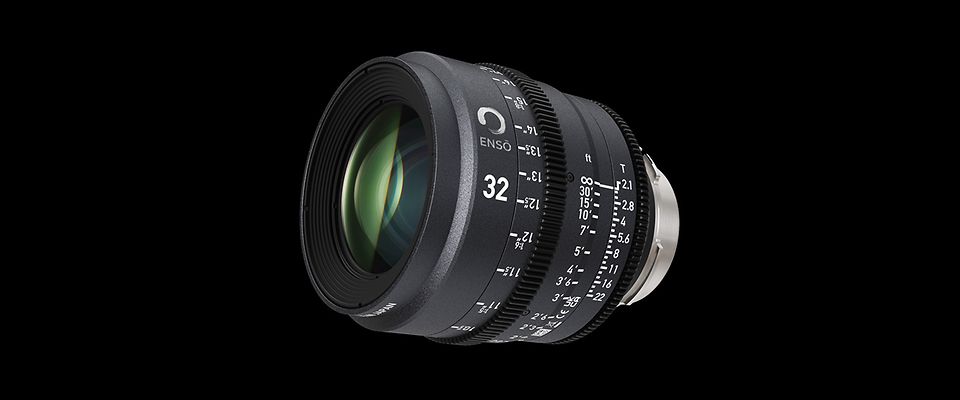

ENSO-001_ENSO_02_0000_black_v2
Meet the new member of ARRI's lens family

Small, lightweight, and versatile, ARRI Ensō lenses deliver exceptional images in almost any conditions. The beautifully smooth and balanced native look can be tuned with Ensō Vintage Elements, which attach to the back of the lenses, allowing many different looks to be achieved with a single, cost-effective lens set.



Order now - shipping in November

Take a guided tour of the Ensō Prime lenses

Guided-Tour-Thumbnail
Japanese paper brighter_01

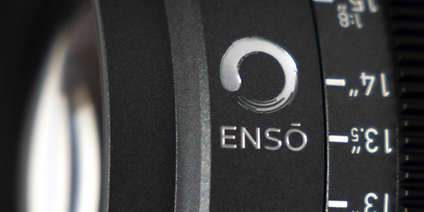

What is Ensō?

ARRI Ensō lenses are named after, and inspired by, a circular Zen symbol. In Zen calligraphy, painting an ensō is a meditative practice that trains your mind to exist fully in the moment. You are engaged with your surroundings, but your thoughts are untroubled by anything beyond the act of creation.

This is an ideal state of mind on set, and it is only possible if you have complete trust in your tools.

Beautiful native look

Natural image detail and stunning bokeh
Exquisite close-ups and well-controlled flares
Gentle focus fall-off and minimal breathing

I loved the Ensō Primes. The sharpness was perfect; the roll-off and bokeh were soft and smooth. The light weight and small size of the lenses made handheld shots easy. I loved the crazy close-focus distance and—most of all—the price point makes them a very appealing option.

IMG_8173

Vijay Kartik Kannan

Cinematographer

The Ensō Primes were an ideal choice for our project. Their lightweight build and flexibility were crucial on such a demanding shoot. Whether on the high seas, wind battered land,  or in studio interiors, the Ensō lenses delivered exceptional performance, perfectly complementing our vision.

Karl Walter Lindenlaub

Karl Walter Lindenlaub ASC

Cinematographer

ARRI Ensō lenses blend a naturalistic look with a high-end commercial feel, all in a nimble package at an approachable price point. They have a polished yet intimate resolve, free from sterility or artifice. Their small footprint makes operating remotely or in tight places a breeze.

Aiden Ulrich

Aiden Ulrich

Cinematographer

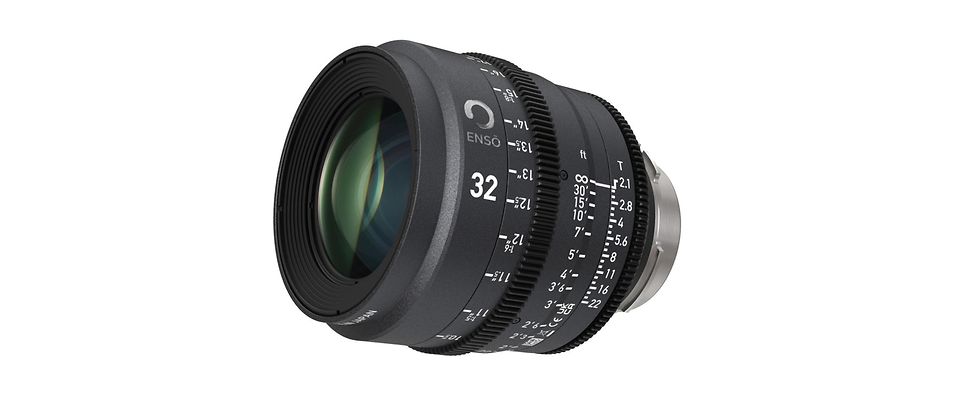

ENSO-001_ENSO_02_0000 Kopie
Elegant simplicity

Collaborating with a leading Japanese optics house, ARRI designed the Ensō lens series to deliver incredible image quality across a huge range of focal lengths, from 10.5 to 250 mm (350/500 mm with Ensō Extenders). Combining German engineering with Japanese optical excellence, Ensōs are a fusion of two cultures – adaptable and reliable, yet elegantly simple and pure of purpose.

Explore the Ensō lens range

Ensō_10.5

10.5 mm

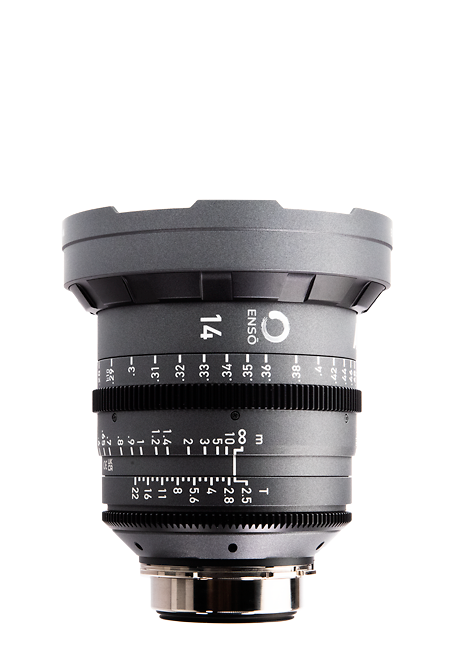

Ensō_14

14 mm

Ensō_18

18 mm

Ensō_21

21 mm

Ensō_24

24 mm

Ensō_28

28 mm

Ensō_32

32 mm

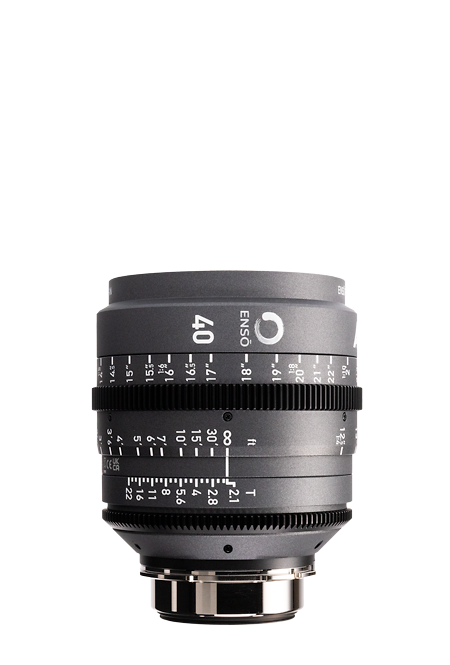

Ensō_40

40 mm

Ensō_47

47 mm

Ensō_58

58 mm

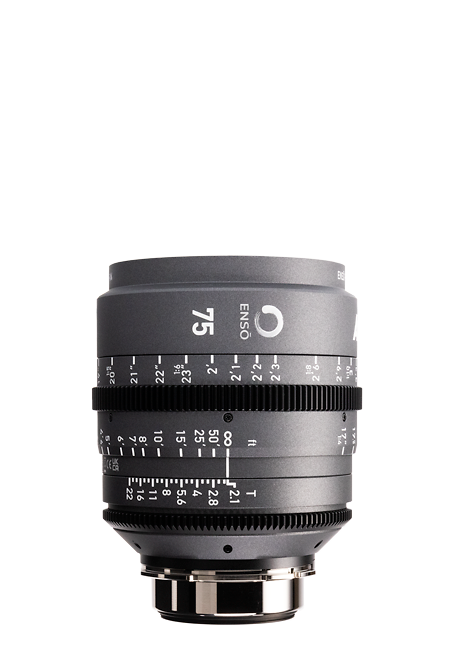

Ensō_75

75 mm

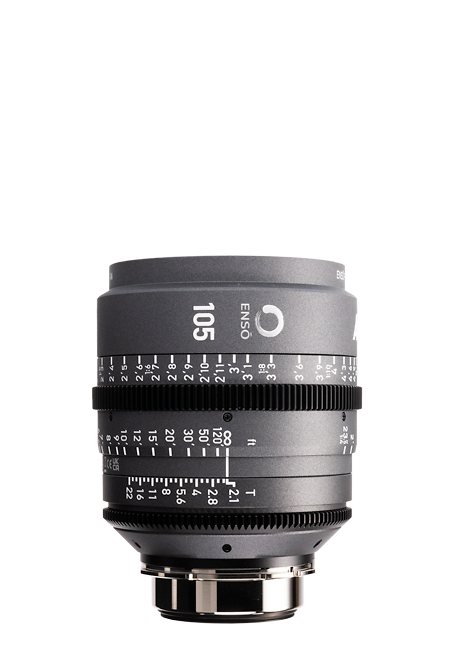

Ensō_105

105 mm

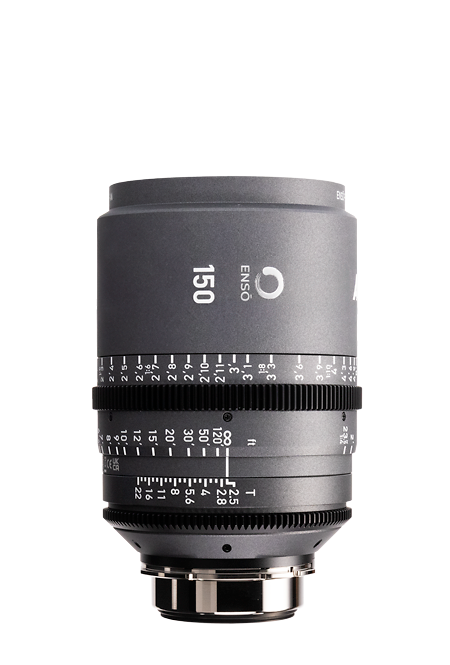

Ensō_150

150 mm

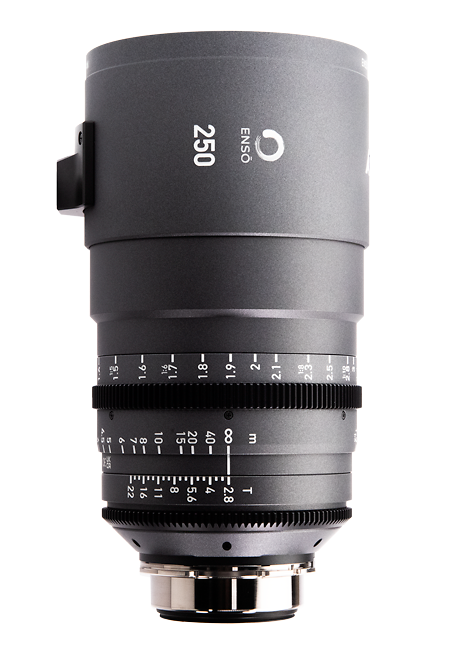

Ensō_250

250 mm

Ensō Vintage Elements

Create diverse vintage looks with a single lens set
Adapt bokeh and fall-off to your creative needs
Quick and easy external lens tuning, with metadata

We used the Ensōs clean for present-day scenes and then with the 350N Vintage Element to get a dreamy, vintage feel for scenes set in the past. With one set of lenses, we achieved distinct visual approaches for each time period while maintaining consistent contrast, skin tone, and texture.

Lali Rubio_02_IMGL4861

Lali Rubio Panadès

Cinematographer

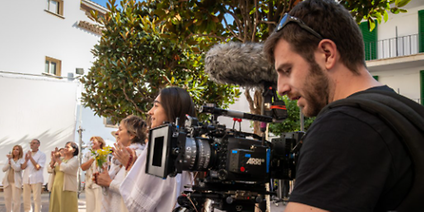

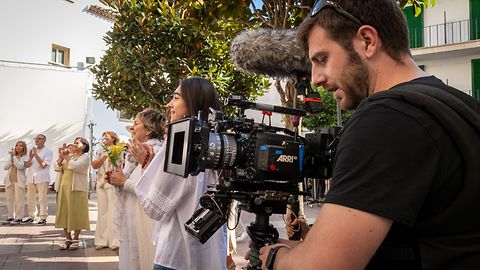

As a Steadicam operator, I really value the compact form factor of the Ensō Prime lenses. The new Ensō Vintage Elements system surprised me with its many creative possibilities; a new way to achieve the look you are looking for.

Ferran Vargas Bujan

Ferran Vargas Bujan

Operator

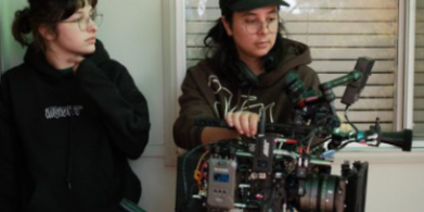

We used the 200N Ensō Vintage Element predominately to make the viewer feel like they were being sucked into the intense world of our hero, then switched to the 200P when our character has a change of heart and mind, as the image needed to feel more harmonious and painterly.

Kate Cornish

Kate Cornish

Cinematographer

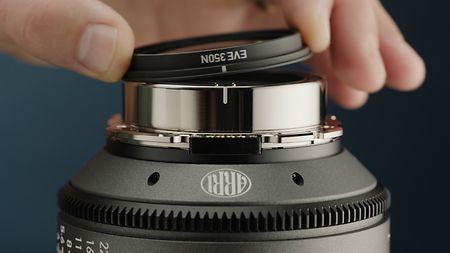

Interchangeable rear optics

Building on what ARRI has learned from feedback about its Impression Filters for Signature lenses, Ensō Vintage Elements incorporate significant advantages. They come in more powerful strengths, producing images that are sharper in the center and therefore easier to focus, but with a stronger detuned effect at the edges of frame.

They have encoded chips that convey metadata about shifts of focal length, T-stop, and focus to the camera, and from there to on-set monitors and postproduction. Focus scale changes caused by the Elements can be compensated for automatically with the ARRI Hi‑5 hand unit, even if crews decide not to use the included lens shims.



Still-2024-10-09-134643_1.3.12

Lenses that say "yes"

Whether on a conventionally lit set or on fast-moving, lower-tier productions shot by small crews with minimal lighting, Ensō lenses can be relied upon to produce engaging, well-controlled images. Careful balancing of myriad technical parameters allows the lenses to say “yes” to the varied requirements of every end user, at any stage of their journeys.

Exceptional close focus

1:4 magnification ratio on most focal lengths
Extreme close-ups without macros or diopters
Shallow depth of field directs audience attention

These lenses are so unique. When shooting a subject super-close, almost at the pin, there isn't any image breathing when racking focus. That's unheard of with any other close-focus lenses I have ever used.

Michael Schrom

Michael Schrom

Cinematographer

At last, there is a consistent prime lens set that is calculated for digital sensors and enables close focus settings across all focal lengths. If you want different looks, you can create your optical preferences from a variety of rear Vintage Elements. Ingenious!

TOM_FAEHRMANN_0L0A1555

Tom Fährmann

Cinematographer

Making ARRI quality more accessible

Choosing Ensōs is about making a safe, long-term investment in lenses that will be versatile and trustworthy career companions. Putting ARRI quality within the reach of corporate shoots, documentaries, and commercials that cannot afford big budgets or crews, Ensō lenses protect and enable their users, allowing them to develop, grow, and go with the creative flow.


Fast and flexible on set

Compact and lightweight form factor
Perfect for small crews and small spaces
95 mm fronts and uniform gear rings

I’ve been shooting with the Signature Primes, which I love, and I needed something to run along with these that was more compact for handheld and stabilized work. The Ensōs were perfect; they are great right across the frame, with good close focus, nice flare characteristics, and a slightly vintage feel. I love them.

Ben Davis

Ben Davis BSC

Cinematographer

The compact size and versatility of the Ensō lenses let us work in very tight spaces such as a car interior or inside a splash bag in the sea. Focal length changes were fast, as the rings are in the same position across the entire lens set, so we didn’t have to reposition the motors for each lens.

Manu Leon_04_IMGL6104[87]

Manu León

Cinematographer

I prefer to have a small, concise camera kit and lens package. I was shooting on a Steadicam and I loved that the Ensō lenses were small, with similar weights. I didn’t have to think twice about making lens changes in a small window of light because there was no re-balancing required.

Joanna Cameron

Joanna Cameron

Cinematographer

Meet the Ensō Primes

Technical data

Ensō Prime

lenses

Focal

length

T-stop

Close

focus

LengthWeightFront diameterARRI LDS-2 & Cooke /i
EP10.510.5 mmT2.80.27 m / 10.5"141 mm / 5.6"2.3 kg / 5.1 lb134 / 156 mm‭✓
EP1414 mmT2.50.27 m / 10.5"141 mm / 5.6"2.0 kg / 4.4 lb134 / 156 mm‭✓
EP1818 mmT2.10.20 m / 8"117 mm / 4.6"1.4 kg / 3.1 lb95 mm‭✓
EP2121 mmT2.10.22 m / 8.5"117 mm / 4.6"1.4 kg / 3.1 lb95 mm‭✓
EP2424 mmT2.10.23 m / 9"117 mm / 4.6"1.4 kg / 3.1 lb95 mm‭✓
EP2828 mm T2.10.23 m / 9"117 mm / 4.6"1.5 kg / 3.3 lb95 mm‭✓
EP3232 mm T2.10.25 m / 10"117 mm / 4.6"1.4 kg / 3.1 lb95 mm‭✓
EP4040 mmT2.10.28 m / 11"117 mm / 4.6"1.3 kg / 2.9 lb95 mm‭✓
EP4747 mmT2.10.32 m / 12.5"117 mm / 4.6"1.3 kg / 2.9 lb95 mm‭✓
EP5858 mmT2.10.36 m / 14"117 mm / 4.6"1.5 kg / 3.3 lb95 mm‭✓
EP7575 mmT2.10.43 m / 17"123 mm / 4.8"1.5 kg / 3.3 lb95 mm‭✓
EP105105 mmT2.10.59 m / 23.5"123 mm / 4.8"1.6 kg / 3.5 lb95 mm‭✓
EP150150 mm T2.50.77 m / 30.5"152 mm / 6.0"1.9 kg / 4.2 lb95 mm‭✓
EP250250 mmT2.81.3 m / 4'2"207 mm / 8.1"2.9 kg / 6.4 lb114 mm‭✓
EP250+1.4x350mmT4.01.33 m / 4'4"241 mm / 9.5"3.5 kg / 7.8 lb114 mm
EP250+2.0x500 mmT5.81.34 m / 4'5"251 mm / 9.9"3.6 kg / 7.9 lb114 mm

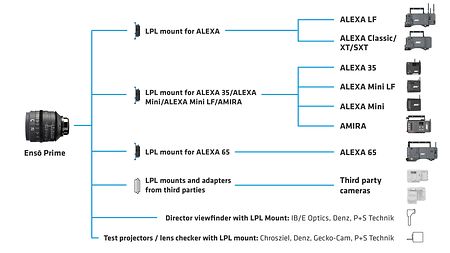

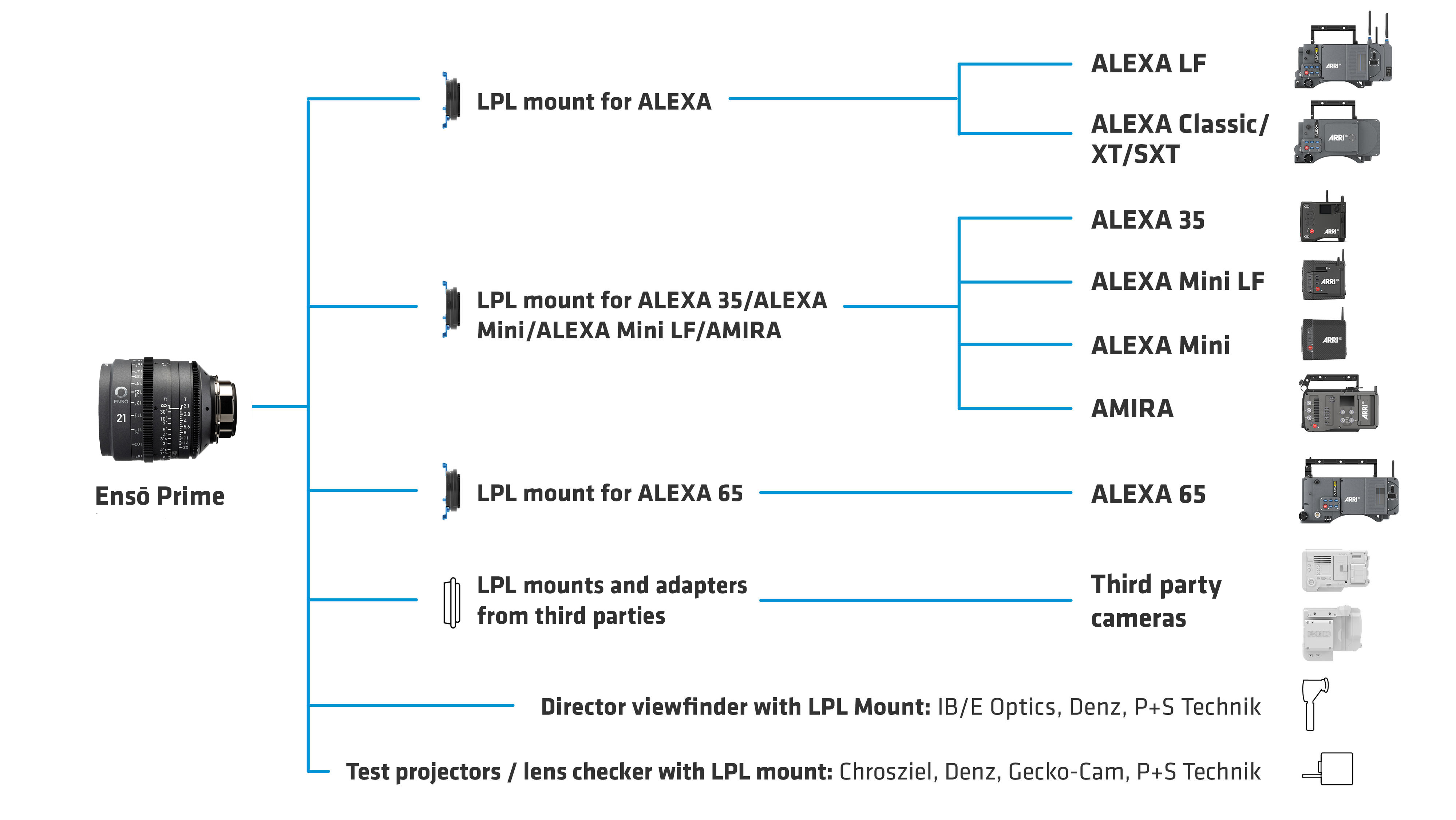

Compatibility of Ensō lenses

ARRI Ensō lenses are equipped with the LPL (Large Positive Locking) lens mount. A wider diameter and shorter flange focal depth allow LPL lenses to be small and lightweight, with a fast T-stop and pleasing bokeh—a combination of features that would not be possible with the old PL lens mount. Careful testing is required when using Ensō Vintage Elements with third-party LPL mounts.
