Remote Control Panel RCP

RCP integration with ALEXA 35 Live

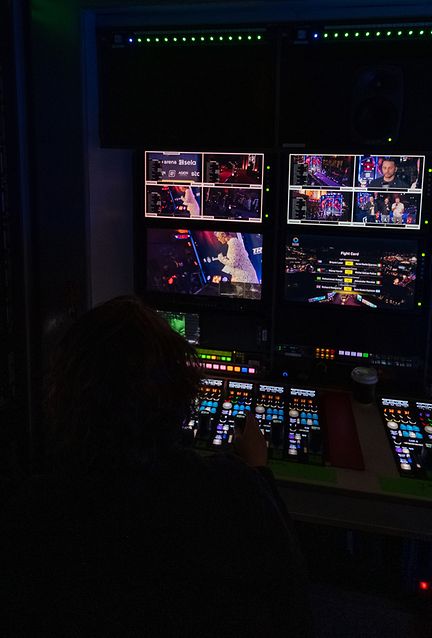

The powerful and customizable Skaarhoj RCP Pro ARRI V2B is offered through ARRI sales channels as part of the ALEXA 35 Live system. Extensive collaboration with Skaarhoj has optimized this bespoke RCP solution, which combines a flexible interface with classical shading control. With its standard Sony RCP form factor and PoE (Power over Ethernet) or AC adapter options, the Skaarhoj is quick and easy to install in OB vans or control rooms.

Since many customers switching to ALEXA 35 Live will want to leverage existing infrastructure, the system is also compatible with CyanView’s RCP.

Take full creative control

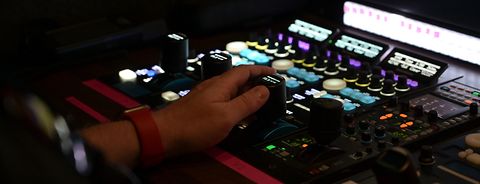

By using ARRI’s Camera Access Protocol (CAP), the Skaarhoj RCP enables traditional live painting as well as full control over camera settings, including some not covered by other RCPs, such as REC start/stop, playback, and the selection of looks, ARRI Textures, multi-matrix color correction, and setup files.

Configuration features

9 programmable 4-way buttons
9 backlit encoders
Customizable joystick display
18 customizable OLED screens
1 large, tilted, customizable OLED screen
Simple, free-of-charge software updates

Skaarhoj Reactor web interface

The Skaarhoj Reactor web interface is a powerful and sophisticated feature of the Skaarhoj RCP offered by ARRI. This versatile online tool allows users to streamline the setup and configuration of their remote control panels with simple inputting of IP addresses and automatic discovery of compatible devices on the network. Advanced setups can involve the manual naming and assigning of devices, and even custom configurations of the button functions according to the needs of the production.

Technical Data

Skaarhoj RCP Pro ARRI V2B
4-way Buttons	9
Encoders	9
Tilted OLED screens	1
Customizable OLED screens	18
Small customizable Joystick Display	1
Product W x D x H (mm)	102 x 355 x 127
Weight (g)	1292
Shipping box W x H x D (mm)	445 x 140 x 150
Shipping box Weight (g)	1906
Country of Origin	Denmark
Product cables	12V Power Supply
Operating temperature	40° C
Storing temperature	50° C
Programming Port	Ethernet (or Micro USB for setting manual IP)
Networking Port	RJ45 Ethernet
GPI/O-Interface	3 inputs + 3 outputs
Power Supply	To be announced
Recommended cables (not in the box)	LAN Cat 6 S/FTP or better
Operating System	skaarOS (Blue Pill)
Universal Control	Check the website for Device Core to what can be controlled https://devices.skaarhoj.com/
