We have prepared an overview of photometric and technical data for the various configurations of the SkyPanel X modular system X21, X22, and X23.
Tech data & downloads
Detailed technical and photometric overviews
Get the ARRI Photometric App today and easily access essential technical data related to all ARRI light fixtures. With this app you can get instant access to comprehensive technical specifications, photometric characteristics, and other important information.

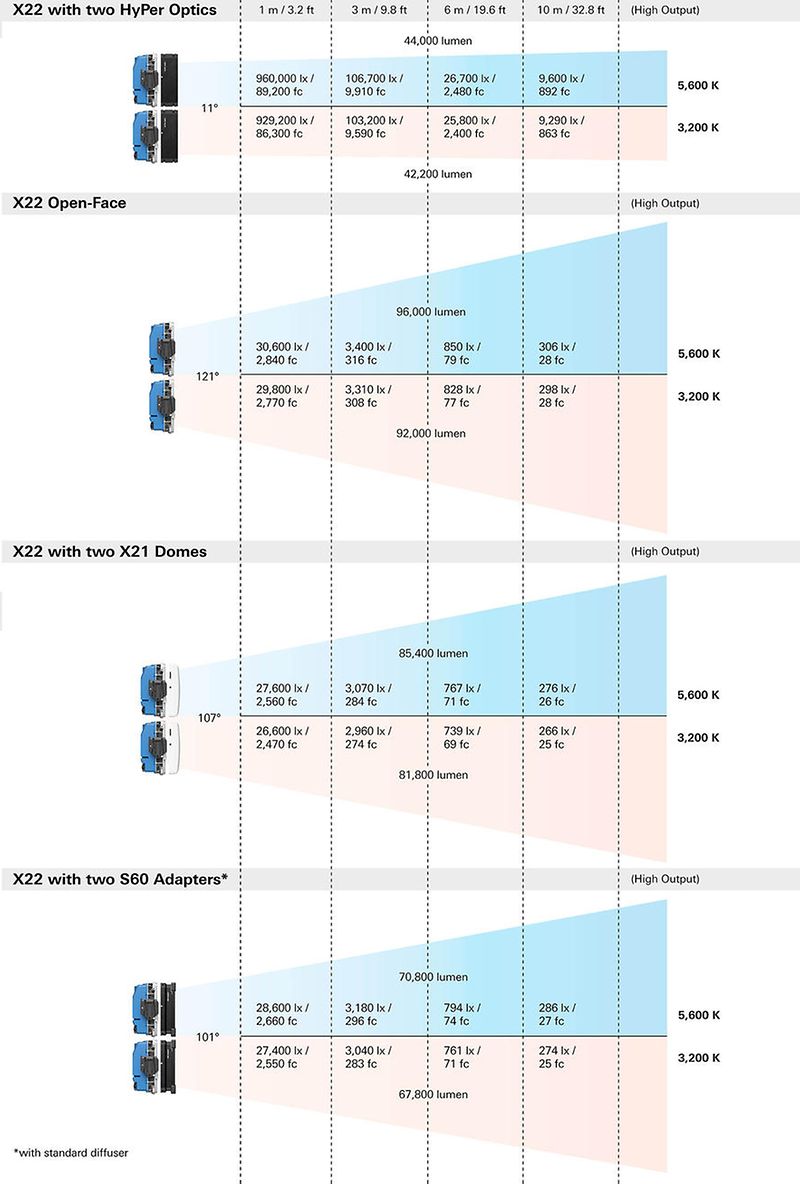

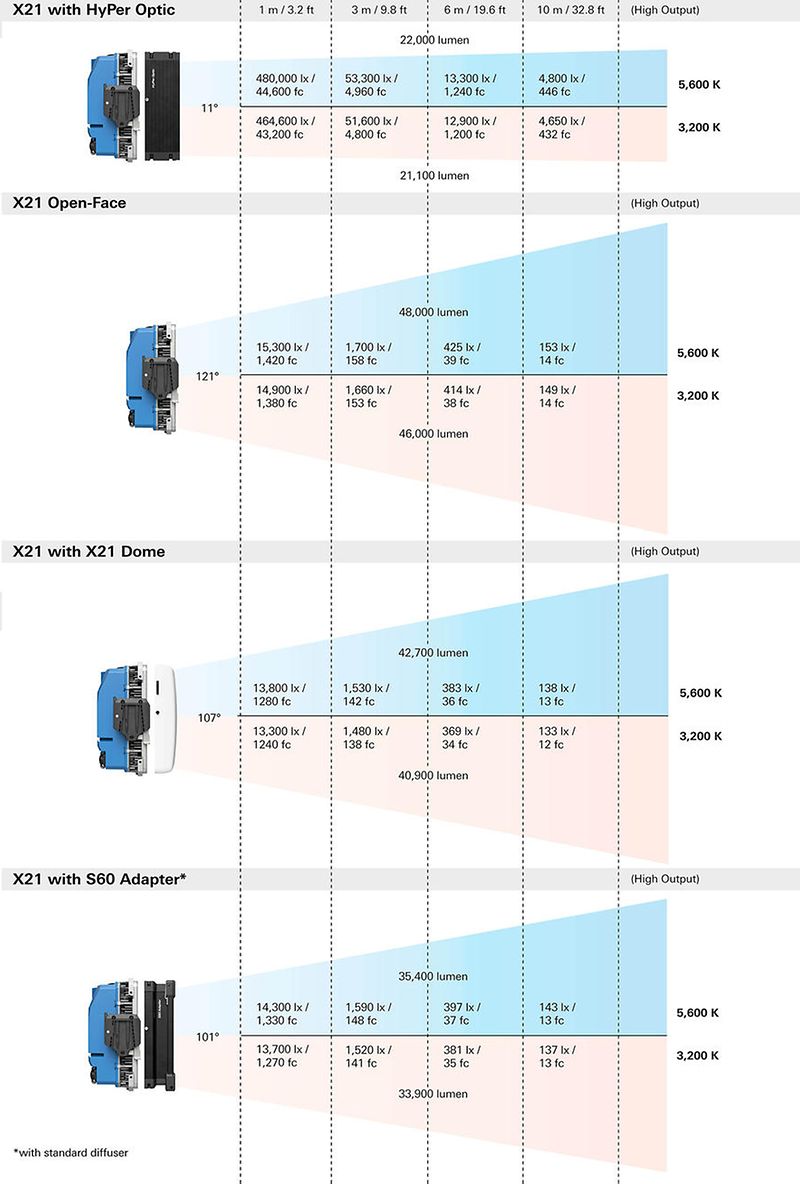

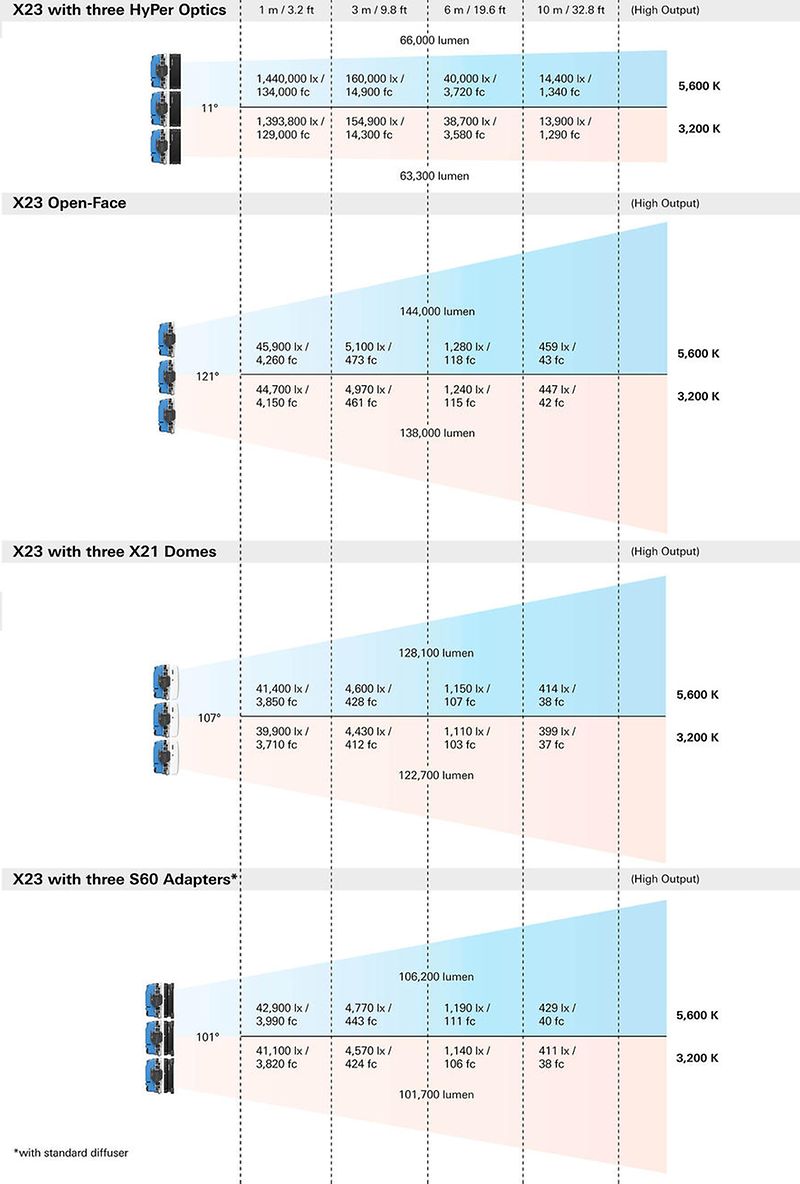

Photometric data
Technical data
| SkyPanel X21 | SkyPanel X22 | SkyPanel X23 | |
|
|
| |
| Power | 800 W | 1,600 W | 2,400 W |
| Format size | 2 : 1 (horizontal) | 2 : 2 (square) | 2 : 3 (vertical) |
| Light engines | 4 | 8 | 12 |
| Pixel zones | 8 max | 16 max | 24 max |
| Max. output (lux) | 4,800 lux @ 10 m, 5,600 K (native hard) | 9,600 lux @ 10 m, 5,600 K (native hard) | 14,400 lux @ 10 m, 5,600 K (native hard) |
| Max. output (lumen) | 51,809 lumen (native open-face) | 103,618 lumen (native open-face) | 155,427 lumen (native open-face) |
| Versions | 1 x Skypanel X L1.0048487 Skypanel X blue silver or L1.0048488 SkyPanel X black | 2 x Skypanel X L1.0048487 Skypanel X blue silver or L1.0048488 SkyPanel X black | 3 x Skypanel X L1.0048487 Skypanel X blue silver or L1.0048488 SkyPanel X black |
| Included items | 1 x X21 Dome | 2 x X21 Dome | 3 x X21 Dome |
| Connectors | 2 x AC (In and Through), max. 20A, TRUE1 TOP | 4 x AC (In and Through), max. 20A, TRUE1 TOP | 6 x AC (In and Through), max. 20A, TRUE1 TOP |
| 1 x DC (In) 48V for battery use | 2 x DC (In) 48V for battery use | 3 x DC (In) 48V for battery use | |
| 2 x DMX (In and Out), XLR-5pin | 4 x DMX (In and Out), XLR-5pin | 6 x DMX (In and Out), XLR-5pin | |
| 2 x LAN / Ethernet, RJ45, EtherCON compatible | 4 x LAN / Ethernet, RJ45, EtherCON compatible | 6 x LAN / Ethernet, RJ45, EtherCON compatible | |
| 1 x USB Type C | 2 x USB Type C | 3 x USB Type C | |
| 1 x LEMO for ALL-WEATHER Control Panel | 2 x LEMO for ALL-WEATHER Control Panel | 3 x LEMO for ALL-WEATHER Control Panel | |
| Rigging systems | X21 Manual Yoke, bent, quick-lock, 28 mm spigot X21 P.O. Yoke, bent, quick-lock, 28 mm spigot Twin Quick-Lock Bracket for multi-unit setups | X Modular frames for X22, X Modular System for X22 & X23, Twin Quick-Lock bracket for | X Modular frames for X23, X Modular System for X22 & X23, Twin Quick-Lock bracket for |

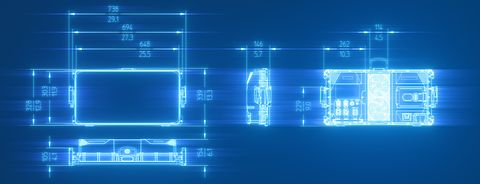

| Dimensions - Fixtures only | 738 x 339 x 154 mm 29.1 x 13.3 x 6.1 in | 738 x 668 x 154 mm 29.1 x 26.2 x 6.1 in | 738 x 1,002 x 154 mm 29.1 x 39.4 x 6.1 in |
| Dimensions - with Manual or Modular Yoke | 875 x 588 x 170 mm 34.4 x 23.2 x 6.7 in | 1128 x 1089 x 290 mm 44.4 x 42.9 x 11.4 in | 1128 x 1414 x 290 mm 44.4 x 55.7 x 11.4 in |
| Dimensions - with P.O. Yoke | with P.O. Yoke: 842 x 622 x 155 mm 33.2 x 24.5 x 6.1 in | n.a. | n.a. |
| Weight - Fixture only | approx. 15 kg / 33 lbs | approx. 30 kg / 66.1 lbs | approx. 45 kg / 99.2 lbs |
| Weight - with Manual or Modular Yoke: | approx. 18 kg / 39.7 lbs | approx. 38 kg / 83.8 lbs | approx. 54 kg / 119.1 lbs |
| Weight - with P.O. Yoke | approx. 18,5 kg / 40.8 lbs | n.a. | n.a. |
| AC Voltage | 100 - 240 VAC, 50/60Hz | ||
| PSU | Integrated | ||
| LED engine | Full Spectrum, 6-color RGBACL LED | ||
| Native quality | Hard (HyPer Optic), Soft (X21 Dome or S60 Adapter), Open-face | ||
| CCT range | 1,500 K - 20,000 K | ||
| CRI | 90 min. / 99 max. (High CRI VariFan mode) | ||
| TLCI | 93 typical (High CRI VariFan mode) | ||
| Camera sensor matching | Yes, via ARRI ALEXA Modes | ||
| Dimming performance | Flicker free, high-res low end dimming | ||
| Native beam angle | 11º (Hard), 107º (Soft), 121º (Open-face) | ||
| Diffuser options | X21 Dome, Beam Enhancer filter, S60-C diffusers | ||
| Accessory compatibility | All SkyPanel S60-C front accessories via S60 Adapter | ||
| Type of display | Removable ALL-WEATHER Control Panel with LiOS3 | ||
| Operational modes | Standard (Low noise), High Output, High CRI VariFan, ARRI ALEXA | ||
| Color modes | CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching | ||
| DMX Presets | Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A | ||
| Legacy DMX modes | Compatible with S60-C Mode 1 and 6 | ||
| Multi-array setup | Yes (up to 3 units in just one single DMX profile) | ||
| IP-Rating | IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity) | ||
| Cooling system | Passive + Active cooling system with double heat sink | ||
| Integrated wired control | DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP) | ||
| Integrated wireless control | CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0 | ||
| Daisy-chain modularity | Yes, via True1 TOP (power) and EtherCON / RJ45 (data) | ||
| Pre-programmed effects | 15 Pixel Macros, 15 effects | ||
| Max. ambient temperature | 40ºC | ||
| Certifications | CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE | ||
| All specifications are typical values. Subject to change without notice. | |||
