Technical data for Omnibar
| Omnibar 2 | Omnibar 4 | |
| Power Consumption | 25 W | 50 W |
| Aperture (Open Face) | 606 mm x 42 mm | 1193 mm x 42 mm |
| Pixel Zones | 16 | 32 |
| Color Engine | ARRI RGBMA | ARRI RGBMA |
| Optical System | Magnetically changeable optics | Magnetically changeable optics |
| Beam Angle | Open Face 115°, Round Diffuser 145°, Flat Diffuser 130°, Intensifier 60° | Open Face 115°, Round Diffuser 145°, Flat Diffuser 130°, Intensifier 60° |
| Battery Runtime | Up to 24 hours (2 hours max brightness) | Up to 24 hours (2 hours max brightness) |
| Battery Capacity | 49 Wh | 98 Wh |
| Battery Charging Time | 2 hours | 3 hours |
| Battery Health | >70% after 300 charge cycles | >70% after 300 charge cycles |
| Mounting | Built-in Magnetic Connection Points x2 Built-in Cable Slots (2x Ends, 3x Body) Omnigrip + Omnipin (28mm / 1 1/8“ pin) Omniclip Mini Tripod Eyebolt | Built-in Magnetic Connection Points x4 Built-in Cable Slots (2x Ends, 5x Body) Omnigrip + Omnipin (28mm / 1 1/8“ pin) Omniclip Mini Tripod Eyebolt |
| Mains Power Connection | 100-240 V~, 50/60 Hz Universal Power Supply / Charger with 5.5 x2.1mm Barrel Connector | 100-240 V~, 50/60 Hz Universal Power Supply / Charger with 5.5 x2.1mm Barrel Connector |
| DC Voltage Range | 24 V DC / 2.1 A | 24 V DC / 2.1 A |
| DC Connector | Barrel Connector 5.5 x 2.1mm x2 (In x1, Out x1) | Barrel Connector 5.5 x 2.1mm x2 (In x1, Out x1) |
| White Light | Calibrated 1700 K to 20,000 K continuously variable correlated color temperature | Calibrated 1700 K to 20,000 K continuously variable correlated color temperature |
| Color Modes | CCT, HSI, RGBMA, x/y coordinates, gel selection, cine & pixel effects | CCT, HSI, RGBMA, x/y coordinates, gel selection, cine & pixel effects |
| Color Temperature Tolerance | 3.200 to 5.600 K: +/- 150 K (nominal) +/- 1/8 Green-Magenta (nominal) | 3.200 to 5.600 K: +/- 150 K (nominal) +/- 1/8 Green-Magenta (nominal) |
| High Color Rendition Mode | 3.200 to 5.600 K: CRI average > 98 TLCI average > 98 TM-30 average > 93 | 3.200 to 5.600 K: CRI average > 98 TLCI average > 98 TM-30 average > 93 |
| Green-Magenta Adjustment | Continuously adjustable between full minusgreen to full plusgreen | Continuously adjustable between full minusgreen to full plusgreen |
| Dimming | Smooth, 100 to 0 %, continuously, linear / exponential / logarithmic | Smooth, 100 to 0 %, continuously, linear / exponential / logarithmic |
| Wired Connectivity | DC In, DC Out, USB-C | DC In, DC Out, USB-C |
| Wireless Connectivity | Bluetooth, CRMX | Bluetooth, CRMX |
| Bluetooth Mesh | ARRI Bluetooth Mesh Protocol Support | ARRI Bluetooth Mesh Protocol Support |
| Control Options | DMX 512 (8 & 16 bit) via Omnibase, wireless control via LumenRadio CRMX1 (DMX), Art-Net, sACN, ARRI Bluetooth Mesh Protocol | DMX 512 (8 & 16 bit) via Omnibase, wireless control via LumenRadio CRMX1 (DMX), Art-Net, sACN, ARRI Bluetooth Mesh Protocol |
| Housing Color | Blue/Silver or Black | Blue/Silver or Black |
| Weight | 1.3 kg / 2.9 lbs (without optics) | 2.3 kg / 5.1 lbs (without optics) |
| Dimensions | 609 x 44.6 x 40mm (without optics) | 1196 x 44.6 x 40mm (w/o optics) |
| Ambient Temperature Operation | 0 to 40º C (32 to 104º F); Boost Mode: 0 to 25° C (32 to 77° F) | 0 to 40º C (32 to 104º F); Boost Mode: 0 to 25° C (32 to 77° F) |
| Protection Class | II | II |
| IP Rating | IP 65 | IP 65 |
| Estimated LED Lifetime (L70) | 50,000 hours | 50,000 hours |
| Certifications & Declarations of Conformity | CB, CE, FCC, ENEC, ICID, ETL, PSE, MIC, SRRC, RCM, RoHS 2.0, REACH, UN38.3 | CB, CE, FCC, ENEC, ICID, ETL, PSE, MIC, SRRC, RCM, RoHS 2.0, REACH, UN38.3 |

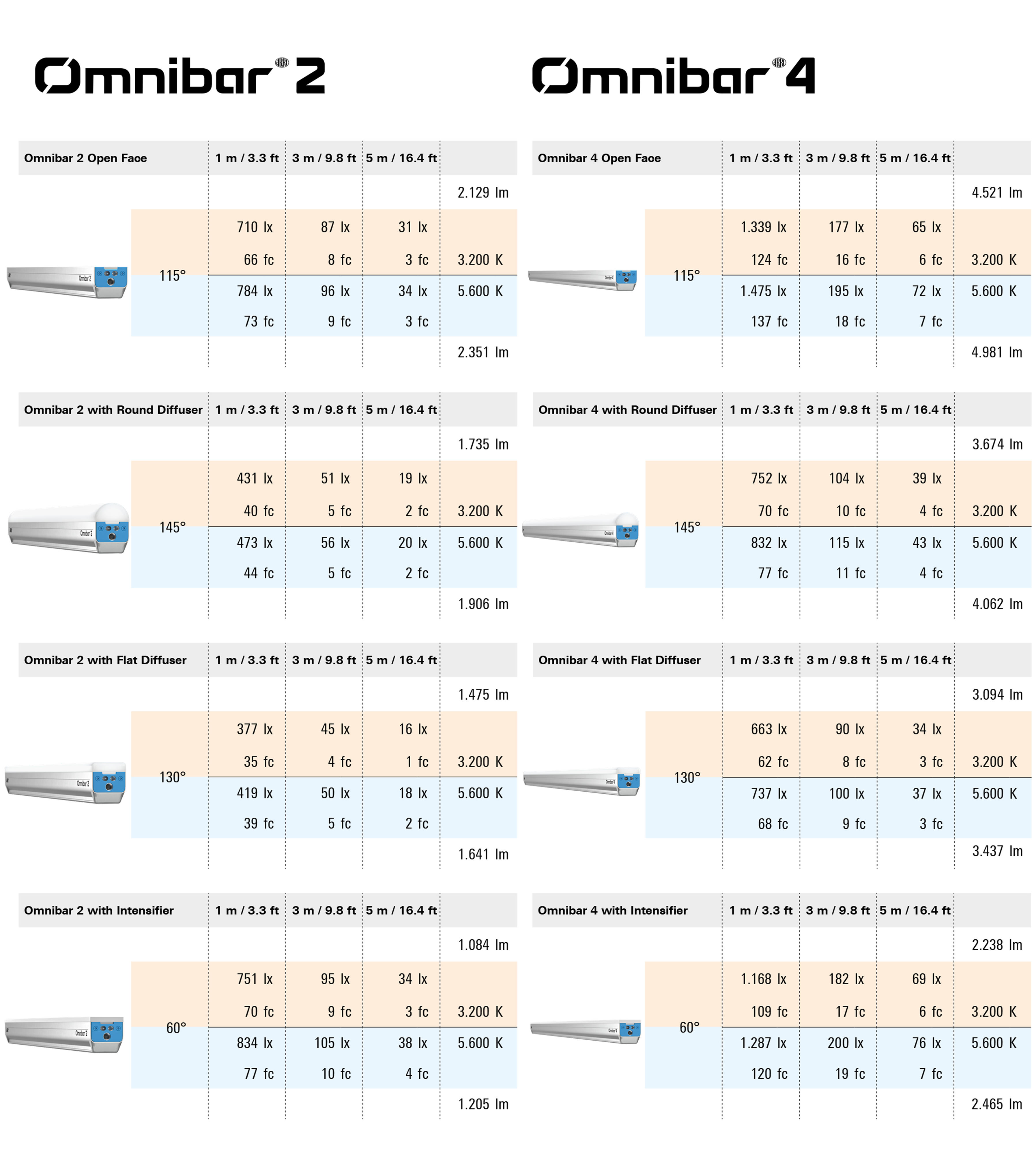

Photometric data
