REVEAL Color Science

Unveil the true beauty of your images

Logo of REVEAL Color Science used by alexa 35 camera.
Higher image quality, faster workflow

ARRI’s discussions with filmmakers and a careful review of the image pipeline have led to significant image quality enhancements and a faster, easier workflow. REVEAL Color Science is a completely new image processing chain used by ALEXA 35 internally and available for ALEXA LF and ALEXA Mini LF in postproduction.

Argentina
Thumbnail_REVEAL_Video_Loop (1)
Thumbnail_REVEAL_Video_Loop (1)

Next gen ARRI color science

More accurate color reproduction
Cleaner images
Faster and easier grading for SDR and HDR

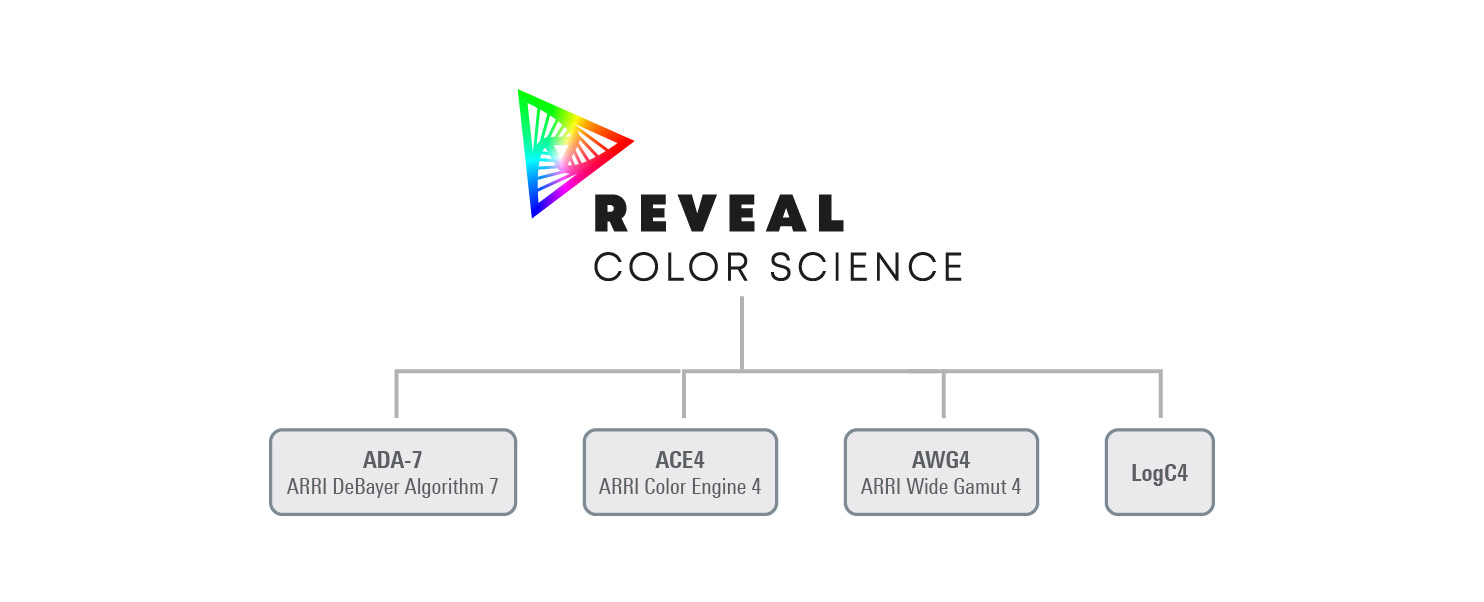

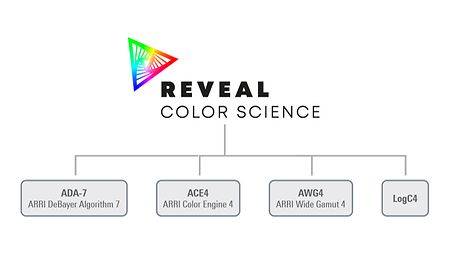

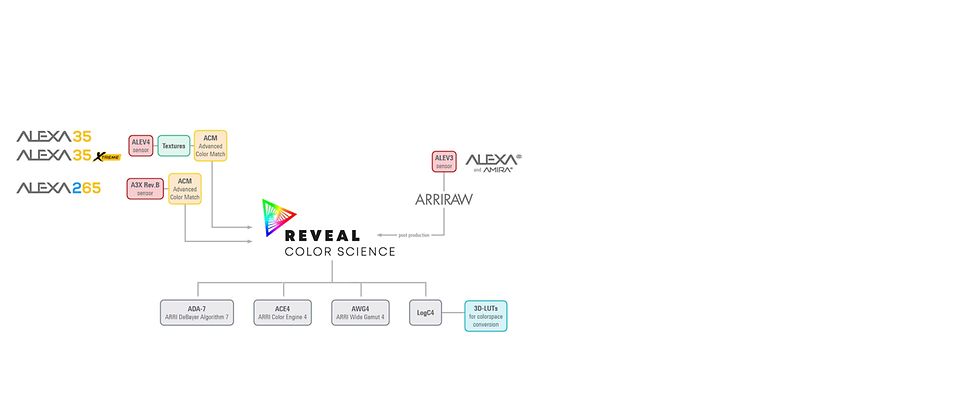

REVEAL Color Science

  • ARRI Debayer Algorithm ADA-7

    • First step in the new and improved image processing chain
    • Converts ARRIRAW into camera-native RGB image data
    • Makes the most of ARRI sensors
    • Sharper images and cleaner edges
    • Easy compositing speeds up VFX work in post
  • ARRI Color Engine ACE4

    • Transforms camera-native RGB image data into the AWG4 color space
    • Brings what the camera 'sees' closer to human visual perception
    • More accurate and subtle color reproduction
    • Pleasing and naturalistic rendition of all skin tones
    • Better color tracking and differentiation at all exposure levels
    • Greatly improved bright saturated colors
    • Same color tones in SDR and HDR

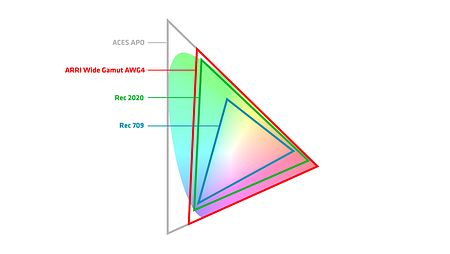

  • ARRI Wide Gamut AWG4

    • New camera color space for faster and easier grading
    • “Goldilocks” color space: just the right size
    • Larger than Rec 2020 but minimizes “virtual” colors
    • Fully enclosed by and compatible with ACES
    • More accurate color space conversions
  • LogC4 Curve

    • Encodes brightness changes
    • Captures the sensor’s increased dynamic range
  • LogC4 Display Look Up Tables

    • Transform LogC4/AWG4 images into various display color spaces
    • Take full advantage of ARRI sensors and LogC4/AWG4
    • Should be used for all LogC4 images
    • Improved color fidelity


Get the most out of your image

Below are images shot in ARRIRAW with ALEXA Mini LF.

Drag the slider to see the results of processing the images with REVEAL.

Original color science on the LEFT and REVEAL Color Science on the RIGHT.

1b
1a
While there is nothing wrong with the image created by the original color science (ARRI color is the gold standard of the industry), the image created by REVEAL shows some obvious improvements.
Reds are rendered more naturally in the OPEN sign, the scooter brake lights, and the Chinese lanterns. The purple reflection on the concrete to the right of the scooter is also more defined and accurate.

Get the most out of your image

Below are images shot in ARRIRAW with ALEXA Mini LF.

Drag the slider to see the results of processing the images with REVEAL.

Original color science on the LEFT and REVEAL Color Science on the RIGHT.

1b
1a
While there is nothing wrong with the image created by the original color science (ARRI color is the gold standard of the industry), the image created by REVEAL shows some obvious improvements.
Reds are rendered more naturally in the OPEN sign, the scooter brake lights, and the Chinese lanterns. The purple reflection on the concrete to the right of the scooter is also more defined and accurate.
Cross-Camera-Compatibility-01
Cross-camera compatibility

Although it is possible to intercut images from all digital ARRI cameras, a perfect color match with the ALEXA 35 can be achieved by processing ARRIRAW from the ALEXA LF and ALEXA Mini LF through REVEAL Color Science. To do so, you can use the ARRI Reference Tool and/or many third-party software tools. For more information on third-party tool compatibility, check "Downloads" below.

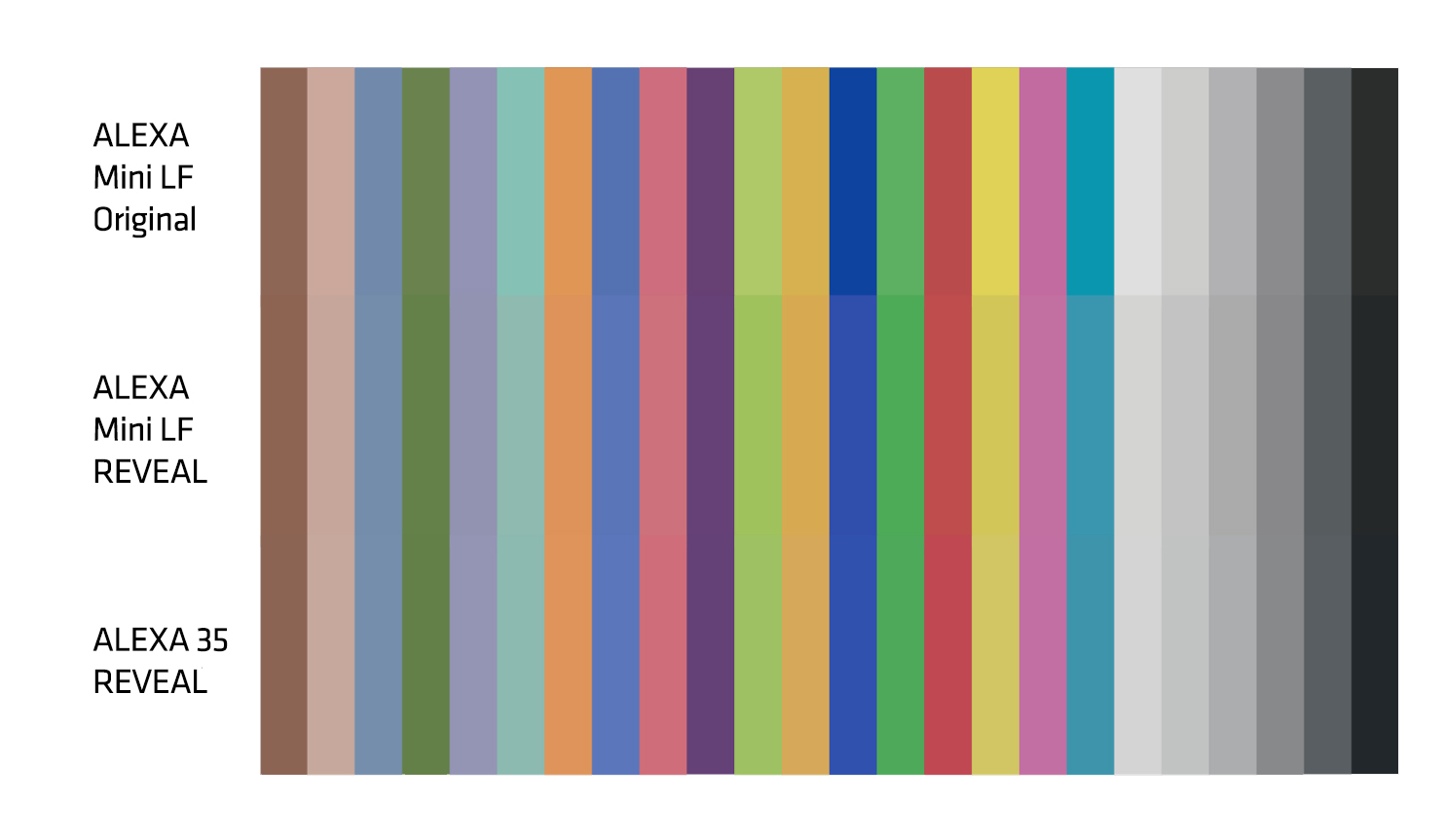

Color improvement and a perfect match

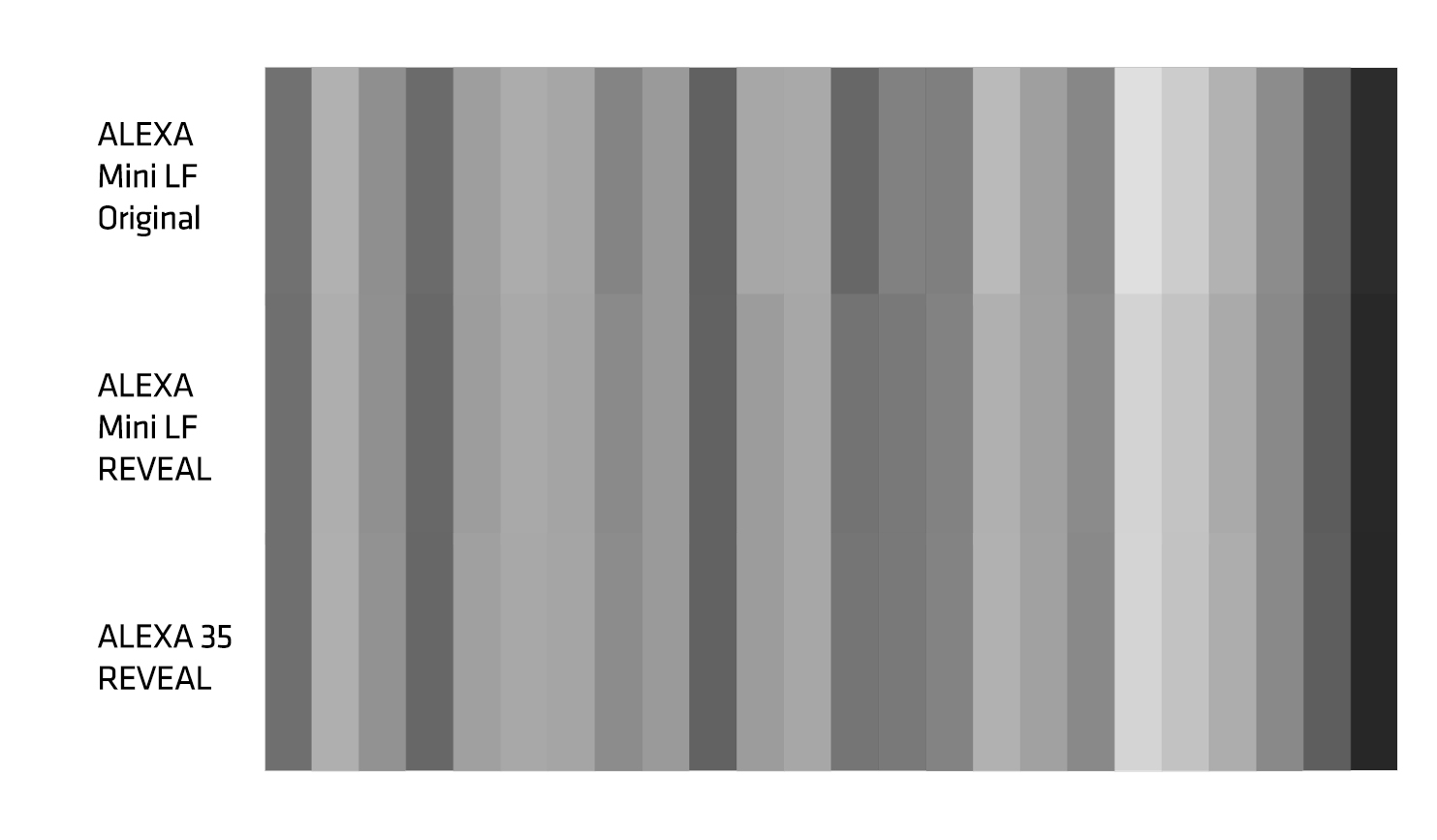

ALEXA 35 and ALEXA Mini LF match extraordinarily closely in REVEAL. For this comparison, a digital color picker was used to grab values off each of the color chart’s sample colors. They were then added to an Excel table so that color shifts could be seen more clearly.

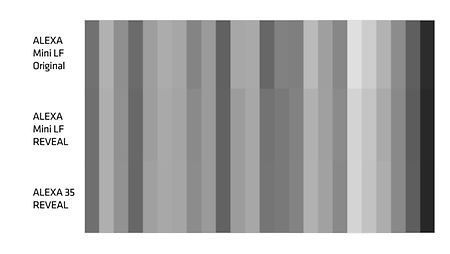

In the grayscale version of this image, differences in luminance can be seen between some of the samples. This is because REVEAL is not only accurate with hue and saturation, it also correctly reproduces the perceptual brightness of colors.

ALEXA 35 and ALEXA Mini LF

Below are images shot in ARRIRAW with ALEXA 35 and ALEXA Mini LF, both processed with REVEAL Color Science.

While there are some differences in dynamic range and depth of field, the colors are extremely close, showing that ALEXA 35 and ALEXA Mini LF can be combined on a shoot without causing any difficulties in the grade.

ALEXA 35 on the LEFT and ALEXA Mini LF on the RIGHT.

V1-0005_A003C003_221012_RN9J.00039718
V1-0004_B_0002C002_221012_165229_a12TN_hde.00006823

ALEXA 35 and ALEXA Mini LF

Below are images shot in ARRIRAW with ALEXA 35 and ALEXA Mini LF, both processed with REVEAL Color Science.

While there are some differences in dynamic range and depth of field, the colors are extremely close, showing that ALEXA 35 and ALEXA Mini LF can be combined on a shoot without causing any difficulties in the grade.

ALEXA 35 on the LEFT and ALEXA Mini LF on the RIGHT.
