L1.37489.B M90-1

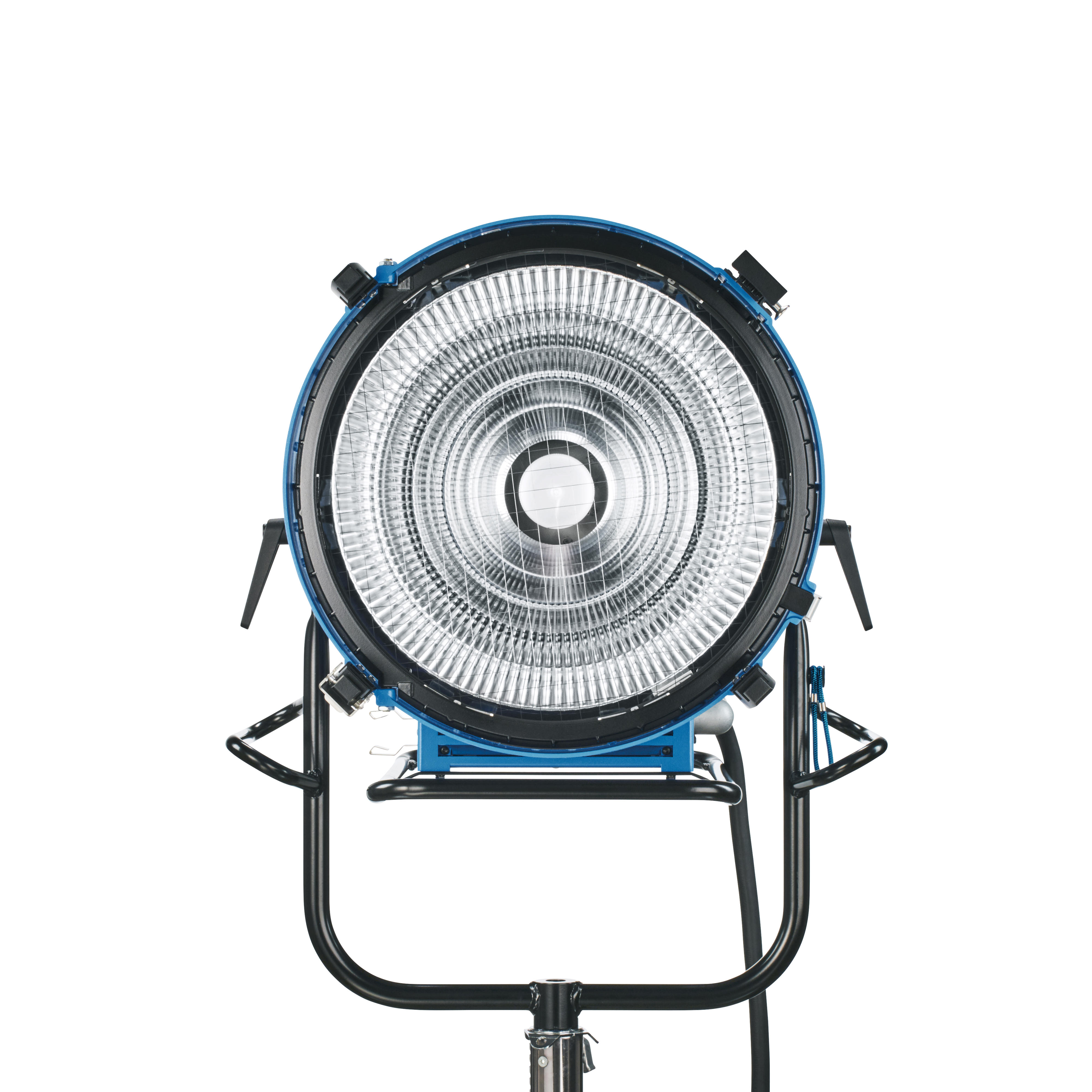

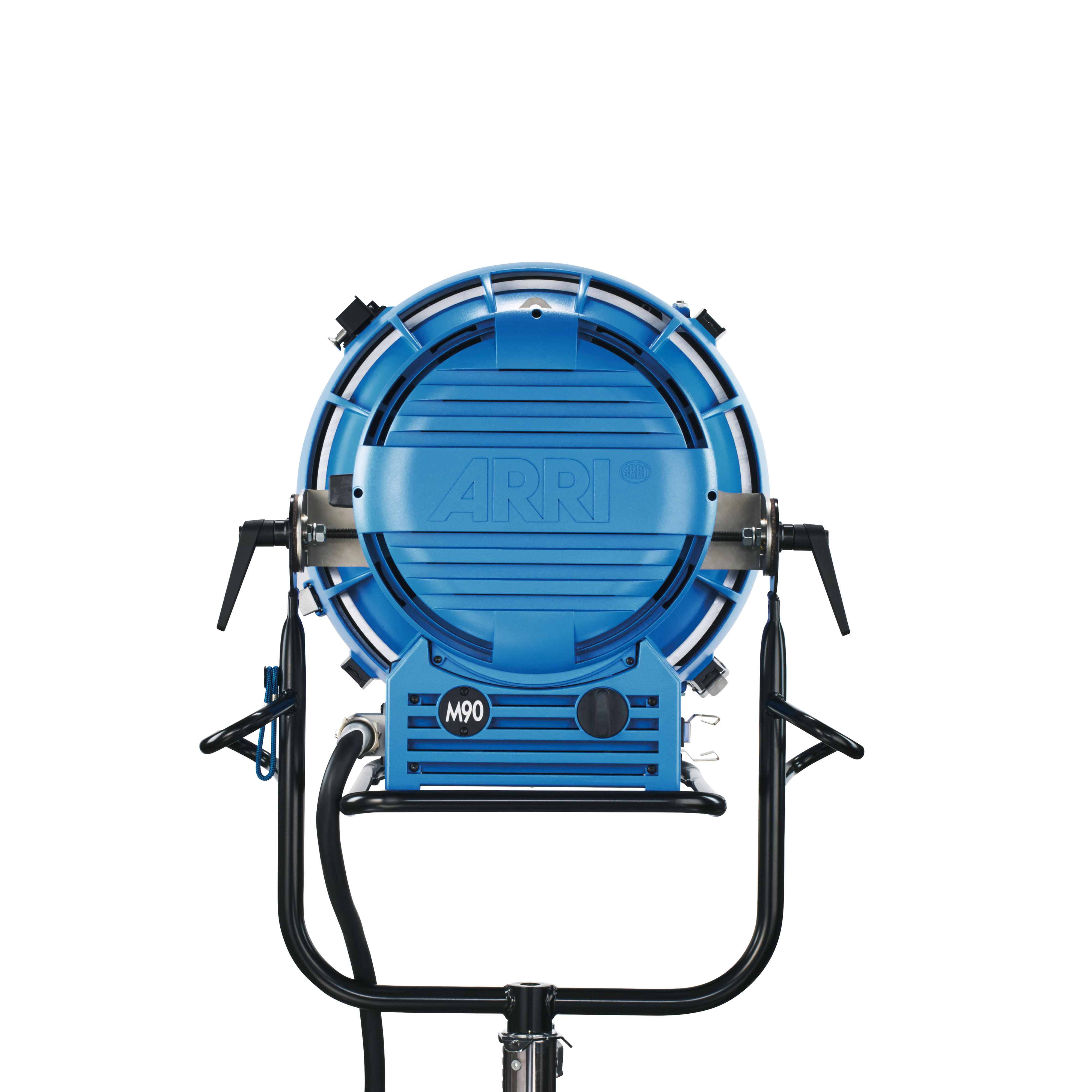

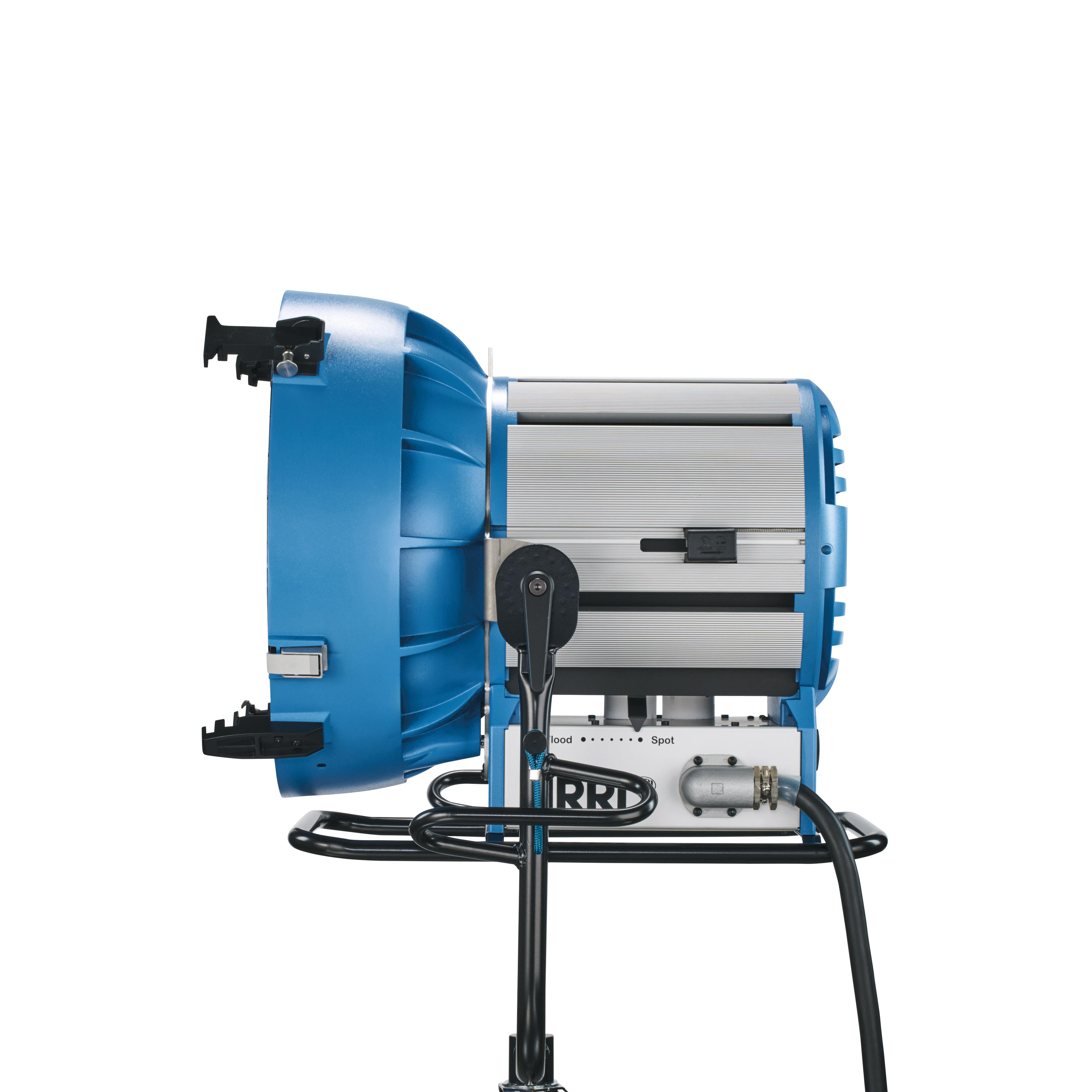

M90

More light, less work

The M90 closes the gap between M40 and ARRIMAX 18/12, which sits almost exactly in the middle between the two. The unit is focusable from 15° up to 49° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. The elimination of spread lenses speeds up the workflow on set. The
9,000 W lamp is very similar in size to the 6,000 W lamp, which makes the MAX Technology reflector function perfectly at both wattages. The superior housing and cooling concept have made a very compact design close to the dimensions of the ARRISUN 60.

Together with the latest electronic high speed ballast, EB 6/9 HS with AutoScan, this combination represents the state of the art daylight system for high quality images at high frame rates. All EB 6/9 kW ballasts are equipped with CCL module (Compensation of Cable Losses) enabling full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length. Since the accompanying EB 6/9 kW ballast uses the housing of the current EB 6000 Baby, the 6 kW Head-to-Ballast cables are compatible and the whole system is highly efficient and delivers a light output close to a traditional 12 kW PAR (with lens) within the dimensions of a 6 kW PAR system – it punches above its weight!

Technical Data
Category
Daylight
Series
M-Series
Model
M-Series M90
Mains Plug
VEAM
Lamphead Type
Open Face with Facetted Reflector, 6,000 / 9,000 W
Reflector
MAX Technology reflector made of high purity aluminium
Lamp Type
Metal Halide 9,000 W/SE; Metal Halide 6,000 W/SE (Nominal voltage 120V)
Power Consumption
9,000 W / 6,000 W
Voltage Range
160 V / 123 V
Lamp Base
GX38
Dimming
yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature
6,000 K
Beam Angle
16° to 49° (with 9,000 W lamp)
Weight in kg net*
approx. 40 kg
Weight in kg packed*
approx. 46 kg
Weight in lbs. net*
approx. 87 lbs
Weight in lbs. Packed*
approx. 101 lbs
Measurements (HxWxL) incl. Pin in mm*
947 x 713 x 720 mm
Measurements (HxWxL) excl. Pin in mm*
814 x 713 x 720 mm
Measurements (HxWxL) incl. Pin in inch*
37.3 x 28.1 x 28.3"
Measurements (HxWxL) excl. Pin in inch*
32.1 x 28.1 x 28.3"
Measurements (HxWxL) Packed size in mm*
930 x 790 x 910 mm
Measurements (HxWxL) Packed size in inch*
36.6 x 31.1 x 35.8"
Lens / UV-Protection Glass Diameter in mm
500 mm
Lens Diameter in inch
19.7"
Accessory Diameter in mm
571 mm
Accessory Diameter in inch
22.5" (Scrim)
Barndoor in mm
584 mm
Barndoor in inch
23.0"
Mounting
Spigot 28 mm / 1 1/8" (1.1")
Housing Color
Blue/Silver
Protection Class / IP Rating
I / IP23
Certifications
CE, CB, GS, cNRTLus

Note *Weight and dimensions are rounded values.
