The single-axis hand unit that grows with you


ARRI introduces the single-axis Hi‑5 SX hand unit, joining the three-axis Hi‑5 at the forefront of wireless camera and lens control technology. Ready to perform a variety of single-axis tasks on set, the Hi‑5 SX can also be easily upgraded to higher functionality via optional software licenses. Weather-proof and exceptionally hard-wearing, it brings ARRI dependability to the control of almost any lens on any camera, at an attractive price point.


Now Shipping

Take a guided tour of the new Hi-5 SX

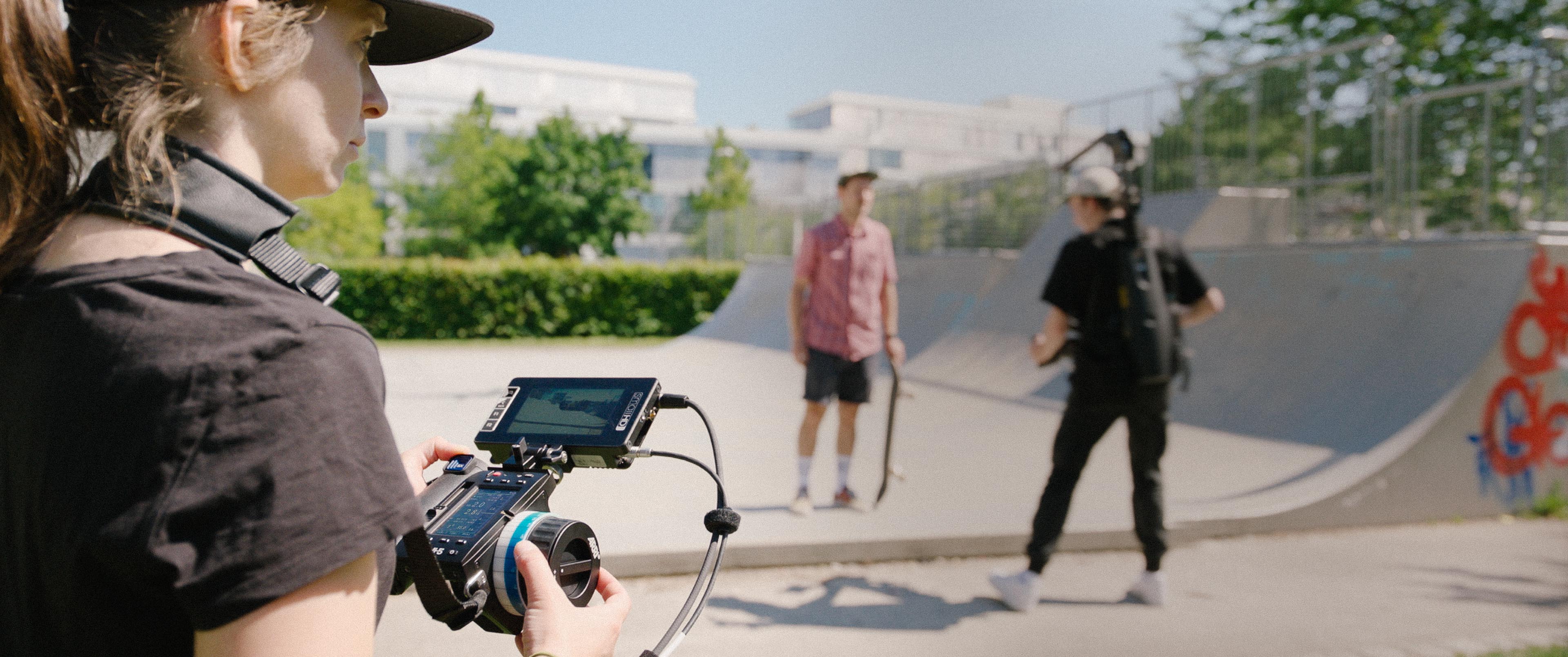

The most complete v5
The most complete single-axis hand unit

The Hi‑5 SX is the perfect entry point into the ARRI ECS ecosystem, with support for basic lens data and ARRI camera control included as standard. Hi‑5 SX users can upgrade at any time to the full feature set of the flagship, multi-axis Hi‑5.

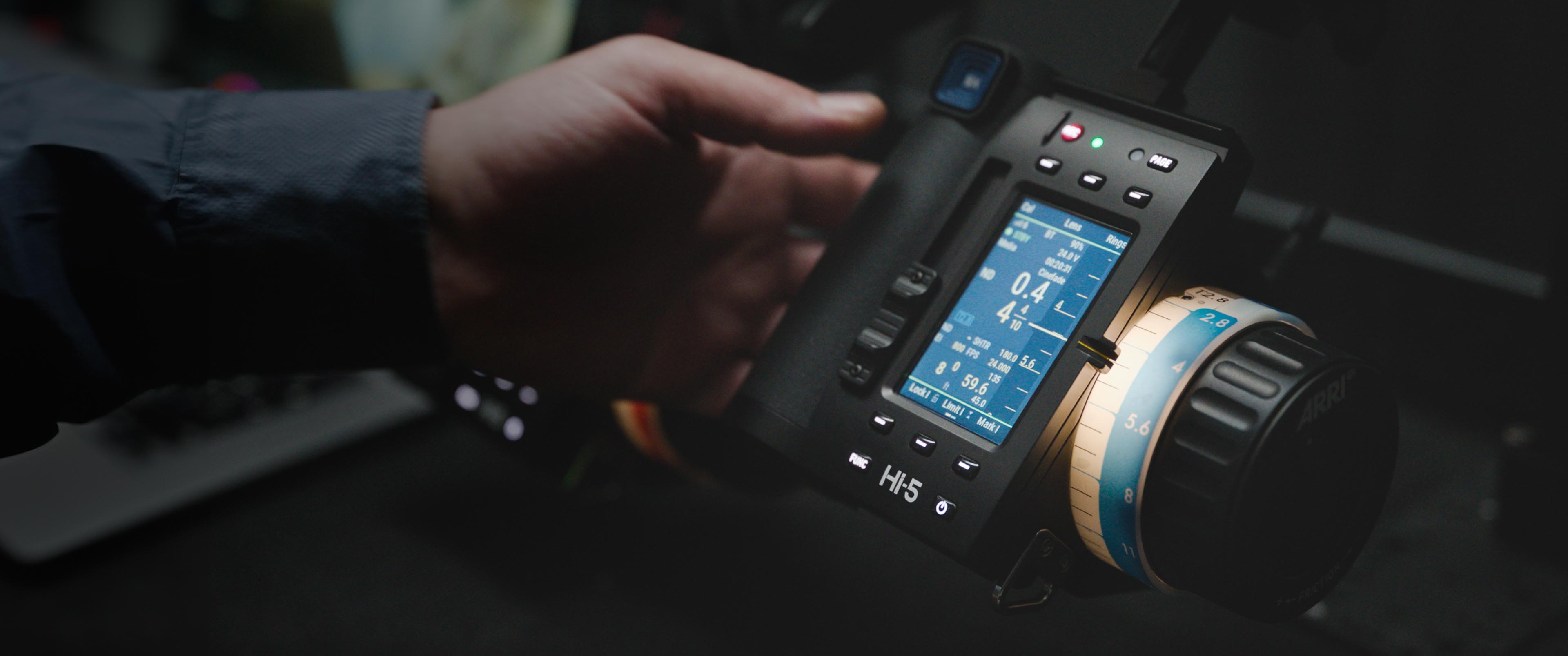

One Axis v2
One axis, full status

Whether you choose to operate using the knob, slider, or force-pad, the Hi‑5 SX gives you precise control of a focus, iris, or zoom motor while still displaying all necessary camera and lens status information.

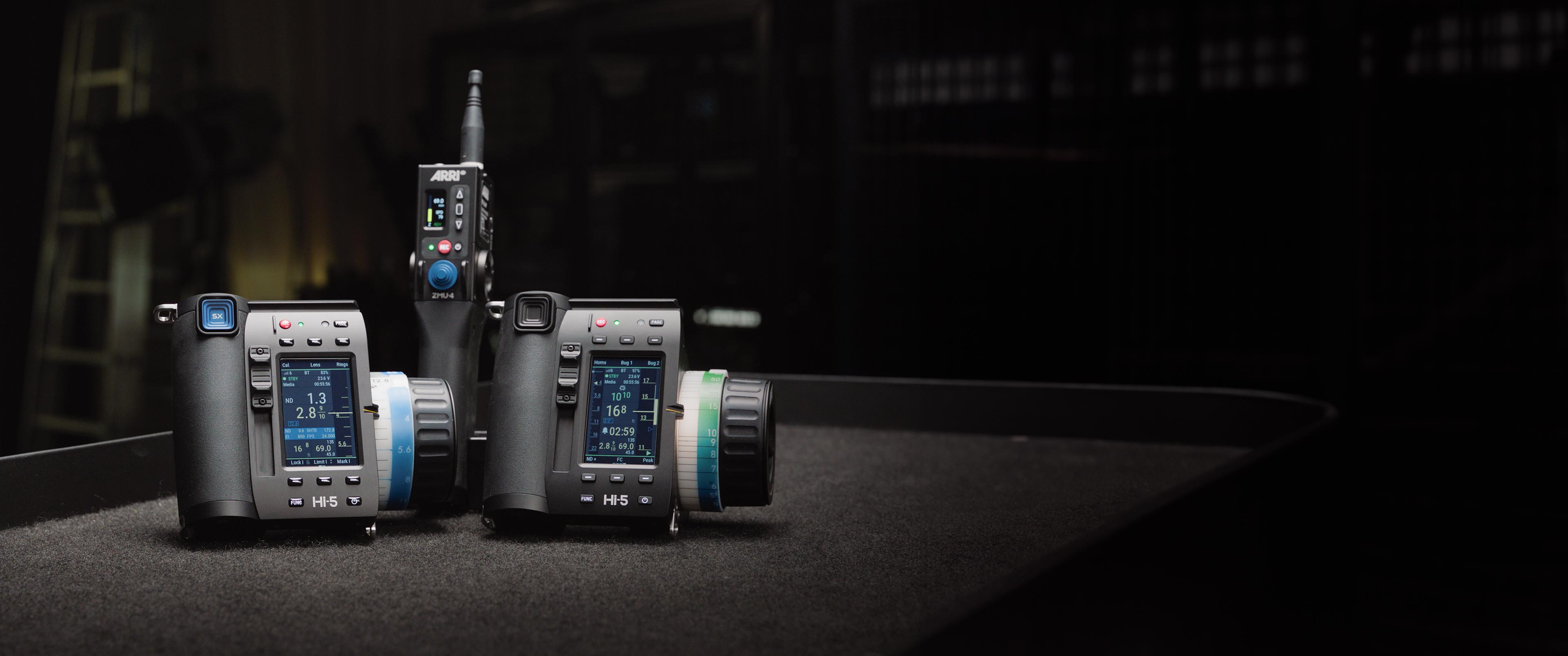

Hi-5 Ecosystem Trolley v2
Next-level metadata

Camera, lens, and distance-measurement metadata is shared automatically between hand units, and a redesigned single-axis interface gives a clear view of the controlled axis. Hi‑5 users and Hi‑5 SX All-Axis License holders can toggle between the Hi‑5 and Hi‑5 SX interfaces.

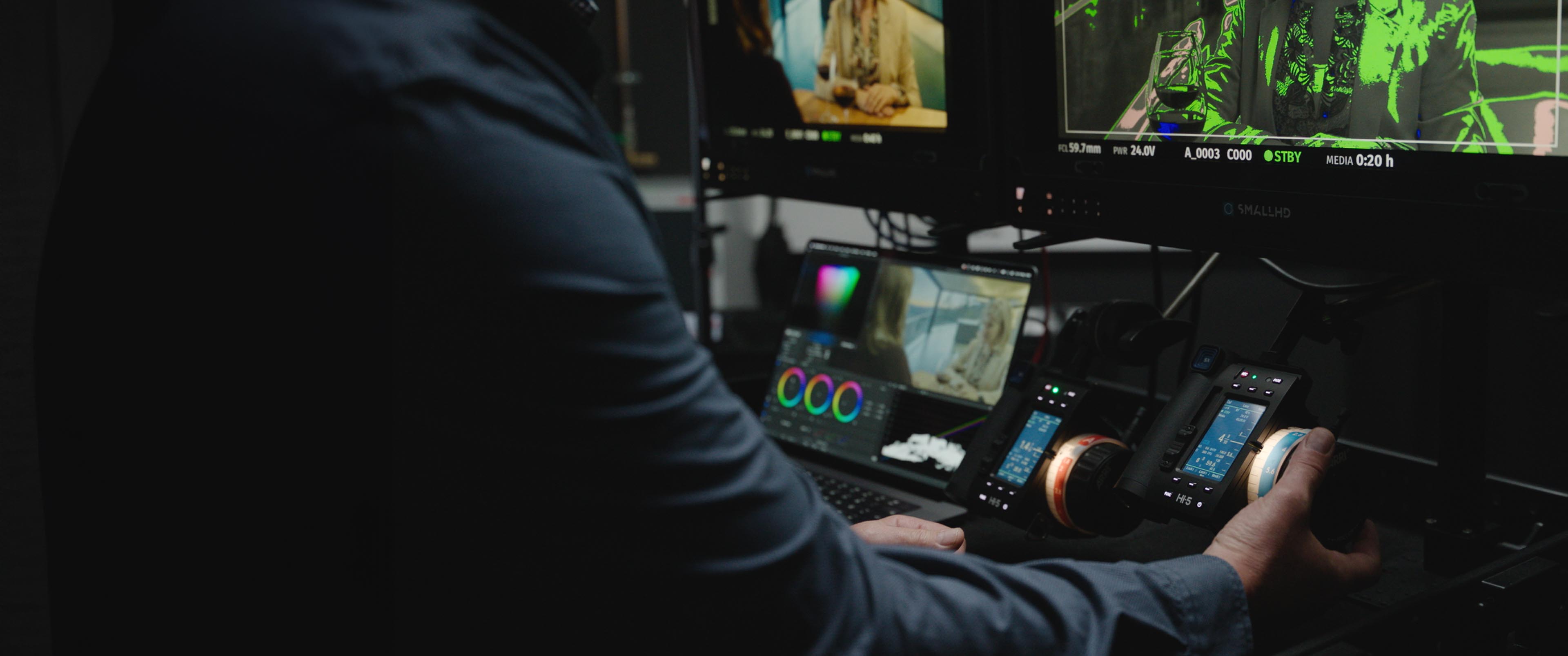

Network Ready v2
Network ready

Completing the next-gen Hi‑5 ecosystem, Hi‑5 SX is the most fully featured single-axis hand unit on the market. Perfect for DITs looking for long-range iris control, it supports all existing ARRI ECS radio modules, camera user buttons, and Custom Smart Rings for iris.

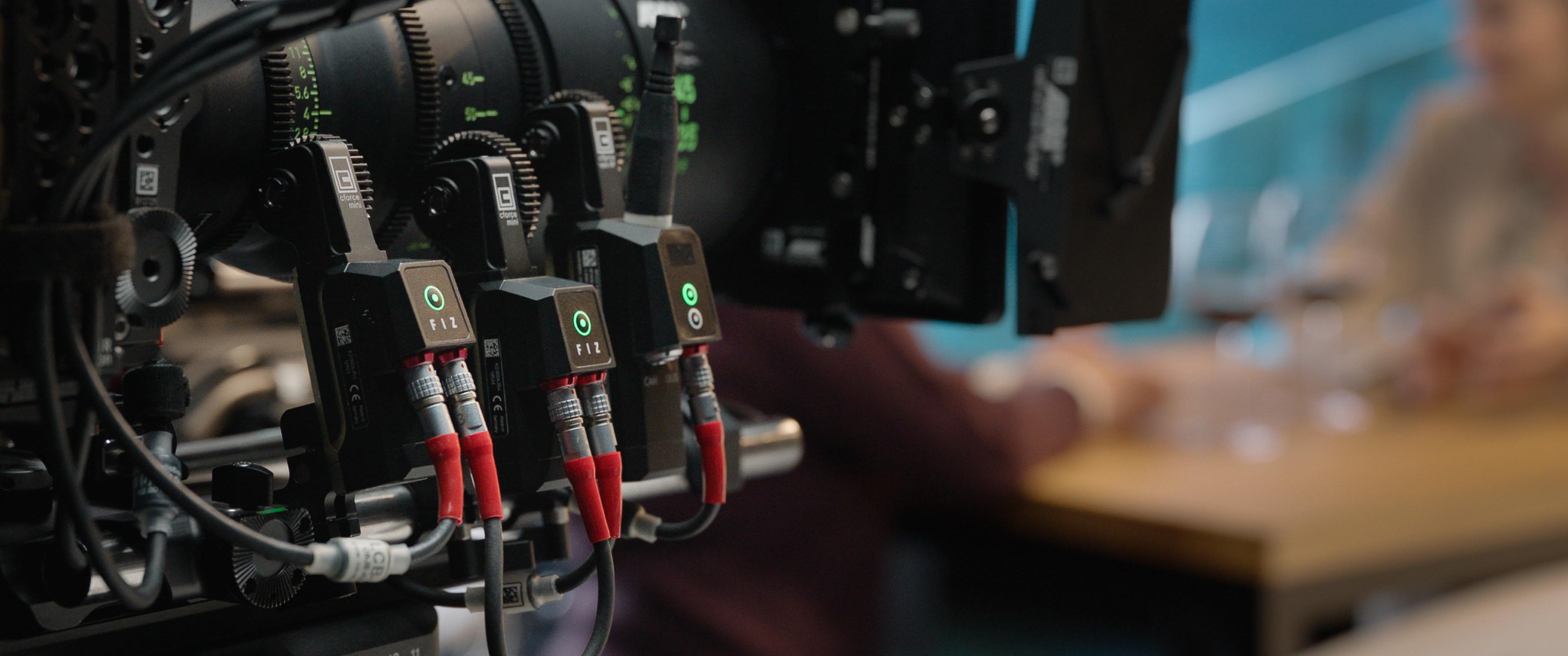

Extended Control Possibilities v2
Extended control possibilities

The Hi‑5 SX supports the existing Focusbug, Cinefade, RED Camera Control, and Sony Camera Control licenses already offered to Hi‑5 users. It is also compatible with all of the same LBUS devices as the Hi‑5.

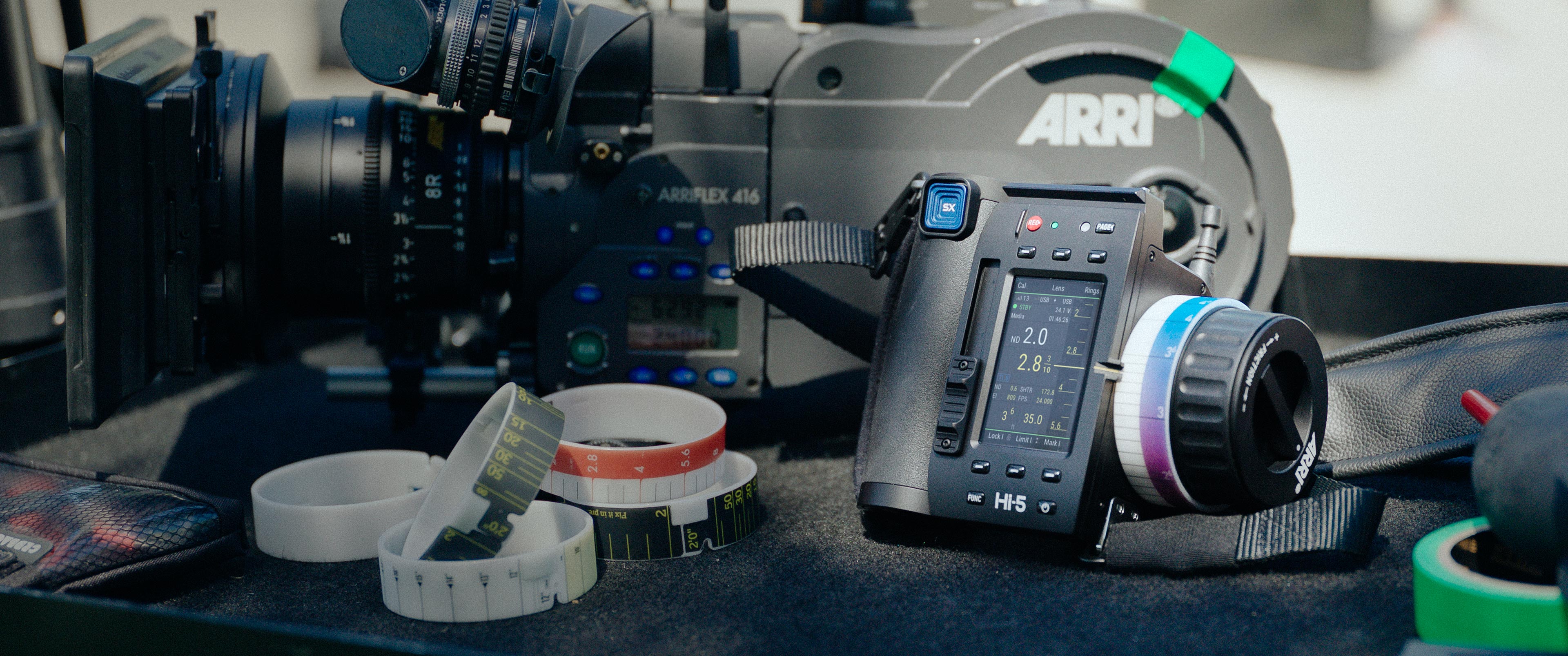

Built-Tough
Built tough for any location

Sharing the same set-proven hardware as the existing Hi‑5 hand unit, the Hi‑5 SX is weather-proof, dust-proof, and built tough. Each battery supports a 12+ hour run time and can be hot-swapped without losing wireless connection.

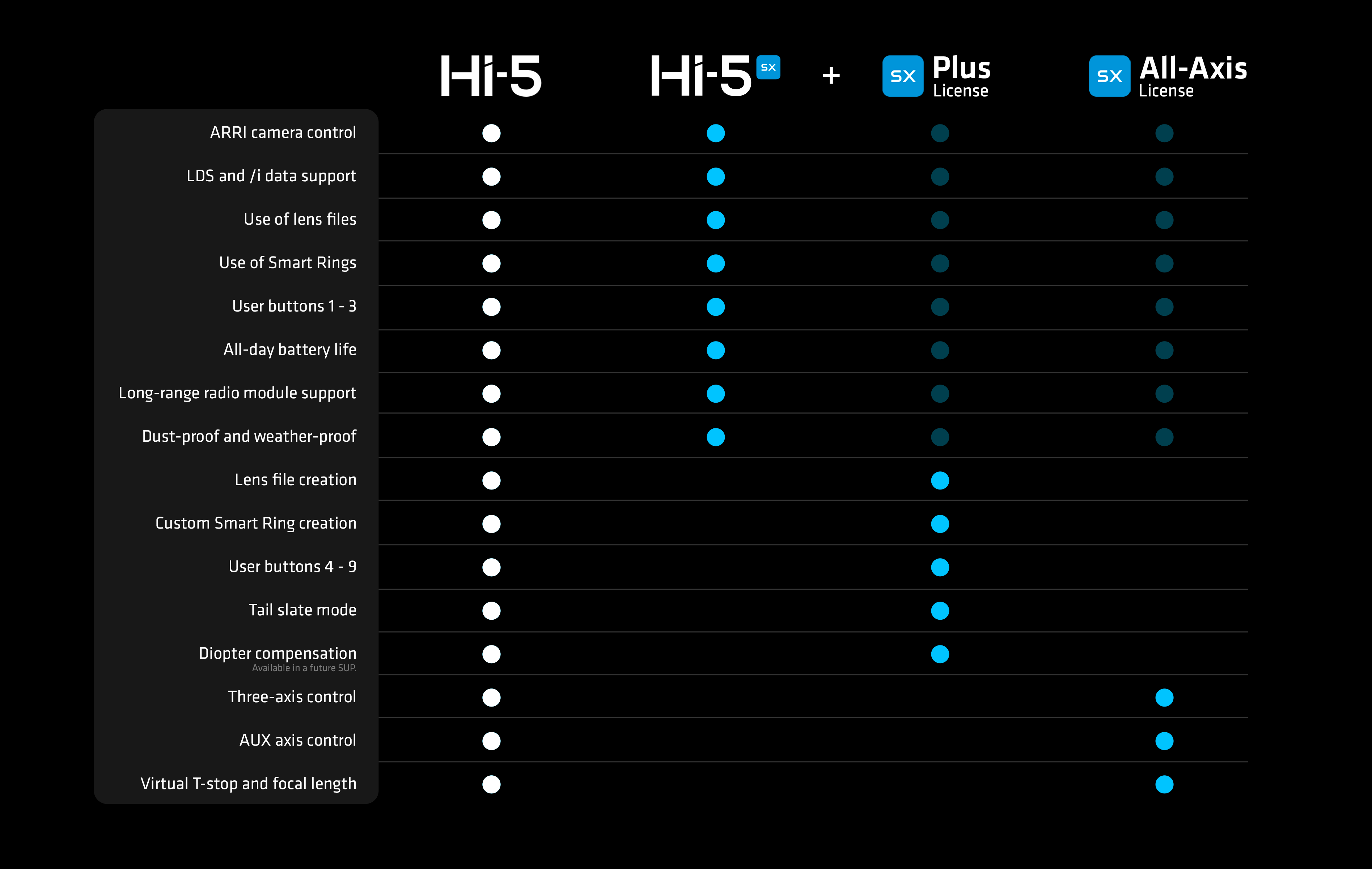

Upgrade to full Hi-5

The Hi‑5 SX can be remotely upgraded to the feature set of the Hi‑5 in two easy steps. Each license is available individually, and together they offer the full functionality of the Hi‑5. Users can swap the blue SX force-pad cover for the included black cover to indicate a Hi‑5 upgrade, or simply because they prefer it.


Enables lens mapping, Custom Smart Ring creation, six additional user buttons, and tail slate mode. Future free-of-charge software updates will bring further new features for SX Plus License holders.

SX-Plus-Logo-Negative

Enables simultaneous use of the knob, slider, and force-pad for three-axis lens control, as well as complete display information, AUX axis, and full virtual T-stop and focal length features.


Personalized compatibility

Users looking to interface with third-party products can access the same compatibility licenses already offered for the Hi‑5. All licenses are available for immediate download from the ARRI License Shop.


  • Focusbug License


    • Adjust many of the Focusbug settings directly from the Hi‑5
    • Display two dynamic distance values from horns or bugs
    • Synchronize marks from the Cine RT handset to the Hi‑5 focus scale
    • Set and toggle many common functions such as limits, lockouts, film plane offset, sensitivity, and field of view.
    • For more information, view the Tech Talk here
    240424_hi-5_lic_focusbug
  • Cinefade License


    • Motorized variable ND filter control from ND 0.4 to ND 2.7
    • Motorized polarizer control
    • Dynamic depth-of-field control
    • For more information head to arri.com/cinefade
    • Or view the Tech Talk here
    240424_hi-5_lic_cinefade
  • Sony Camera Control License


    • Compatible with Sony Venice and Sony Venice 2
    • Control in standard mode: frame rate, ND filter, playback with next/previous selection
    • Additional control in RCP Mode: shutter speed, ISO (as gain in dB), white balance
    • For more information, view the Tech Talk here
    240424_hi-5_lic_sony
  • RED Camera Control License


    • Compatible with DSMC2 and DSMC3 cameras
    • Control over frame rate, shutter speed, ISO, white balance, ND filter, user buttons, and playback with clip list handling.
    • For more information, view the Tech Talk here
    240424_hi-5_lic_red

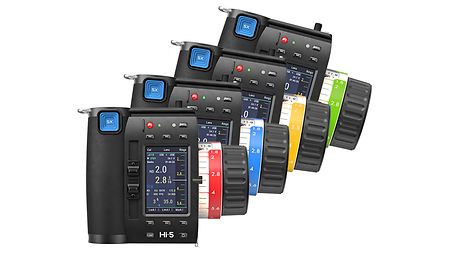

Custom Smart Rings

Customize the feel of your focus or iris pulls with ARRI Custom Smart Rings. Any spread of focus or iris marks can be programmed to any blank Smart Ring and will be automatically recognized on all Hi‑5 and Hi‑5 SX hand units. The ring file can be exported as a vector file to a USB for graphical personalization and printing, allowing full customization to suit your camera, production, or style.

Hi-5sx-coloured-rings-Webpage

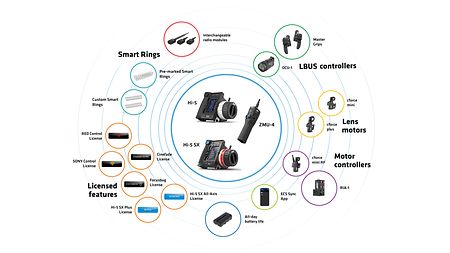

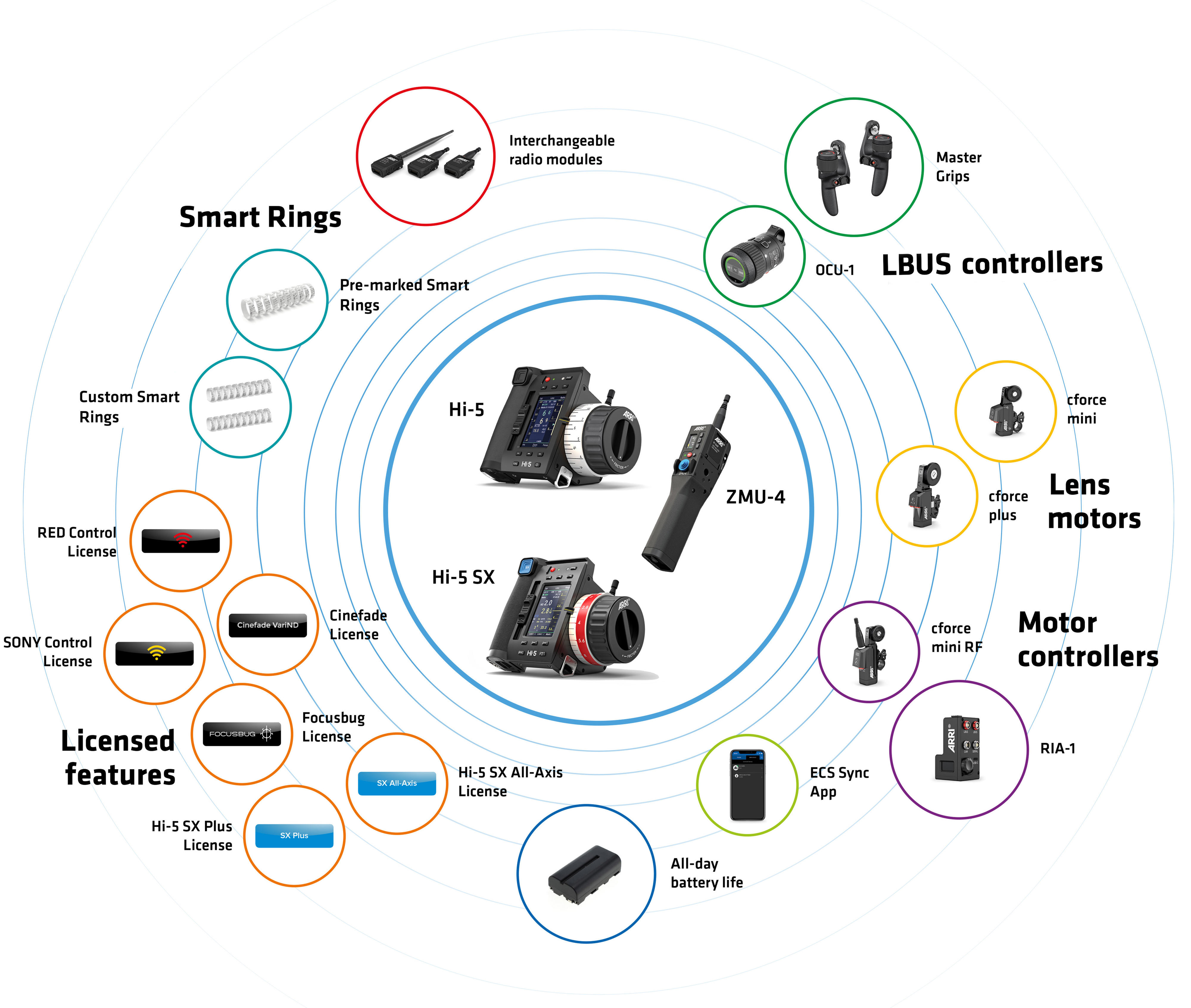

Hi-5 ecosystem

ARRI's system approach to camera technology development has resulted in a wide range of highly integrated products. The Hi‑5 SX sits within the Hi‑5 ecosystem, with both hand units, as well as the ZMU‑4 wireless zoom controller, compatible with all existing motor controllers, LBUS controllers, and cameras.

Video room

Mar. 21, 2023

ARRI Tech Talk: Hi-5

Technical data

Focus Knob:

LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution

Iris Slider:

Fully sealed slider mechanism, 14 bit native encoder resolution

Force Pad:

Force sensitive joystick, x/y-direction

Display:

Transflective TFT-LCD display (readable in bright sunlight) 3.0" diagonal

Weight:

830 g / 29.30 oz (incl. Bluetooth dongle and Smart Focus Ring Blank)

Interfaces:

1x LBUS (4pin Lemo)

1x SERIAL (4pin Lemo)

1x Radio Module Interface

1x USB-A

1x USB-C

Power Supply:

ARRI LBP-3500 battery pack

LBP Battery Charger

NP-F550 battery (Sony) or compatible batteries

Power via USB-C port through an external power supply

Power via LBUS interface

Supply Voltage:

LBUS interface: 10.5 V – 34.0 V

Battery: 7.4 V

Power Consumption:

Without radio module: 222 mA @ 7.4 V
With RF-EMIP radio module: typ. 270 mA @ 7.4 V

With RF-2400 radio module: typ. 370 mA @ 7.4V

With RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 V

With RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V

Operating Temperature:

-20°C to +50°C (-4°F to +122°F)
