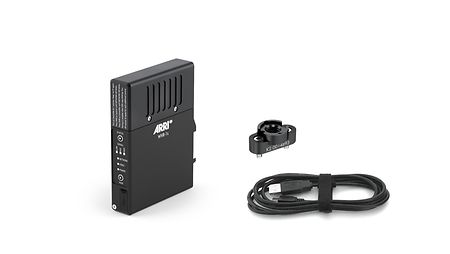

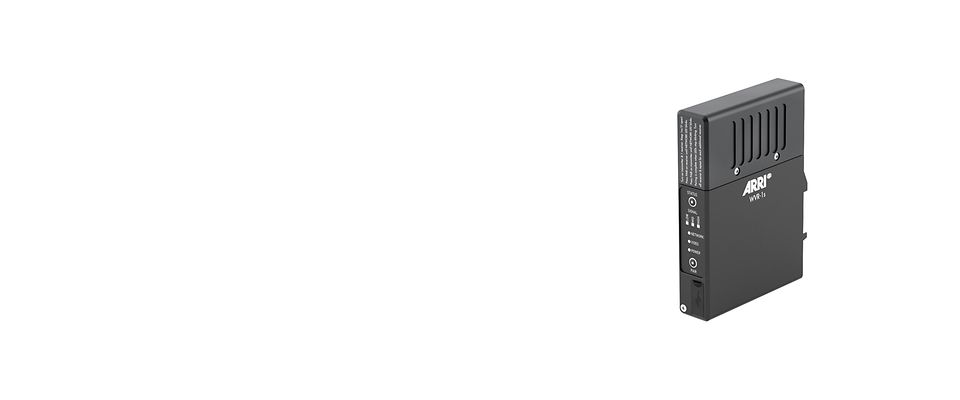

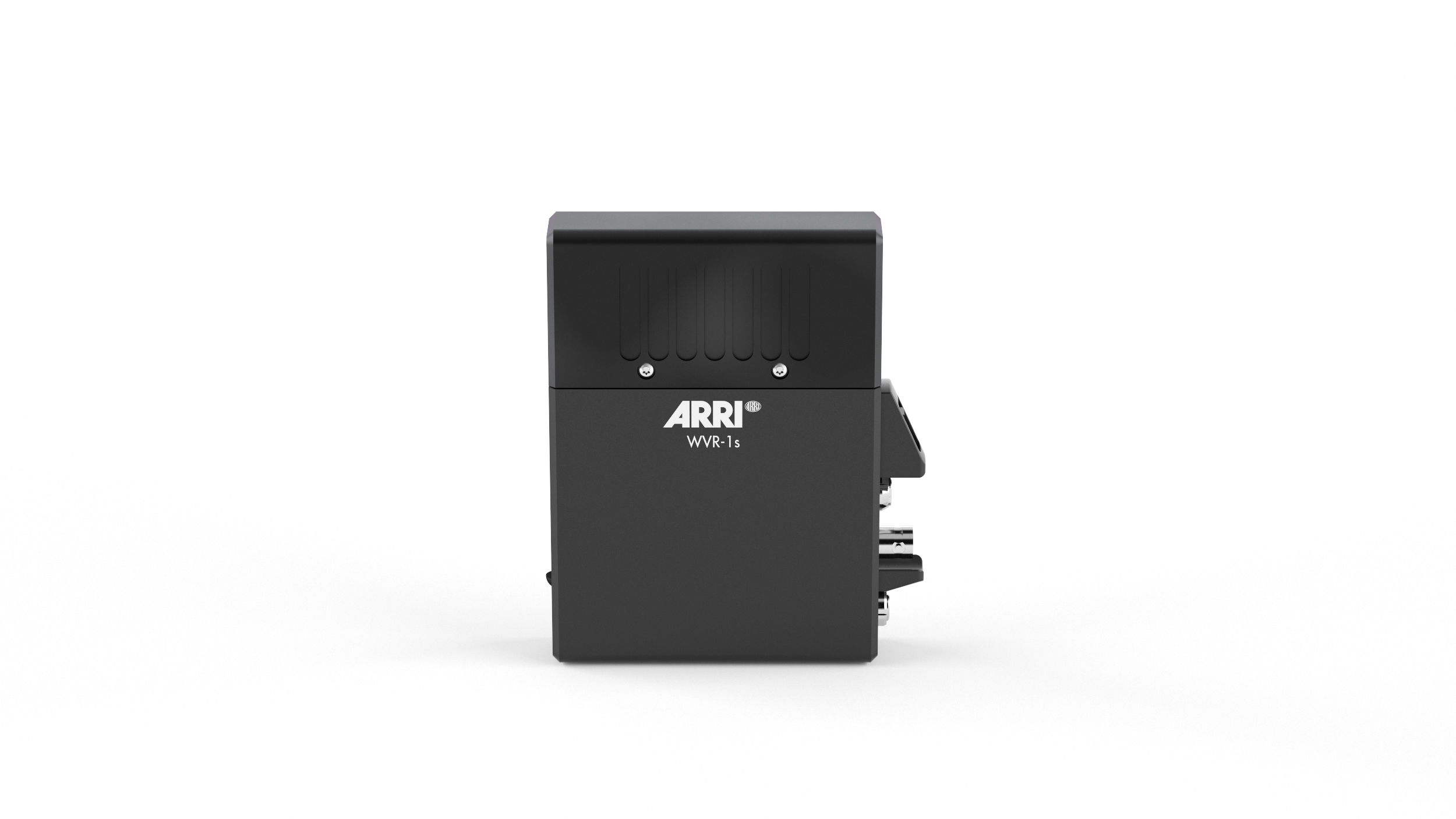

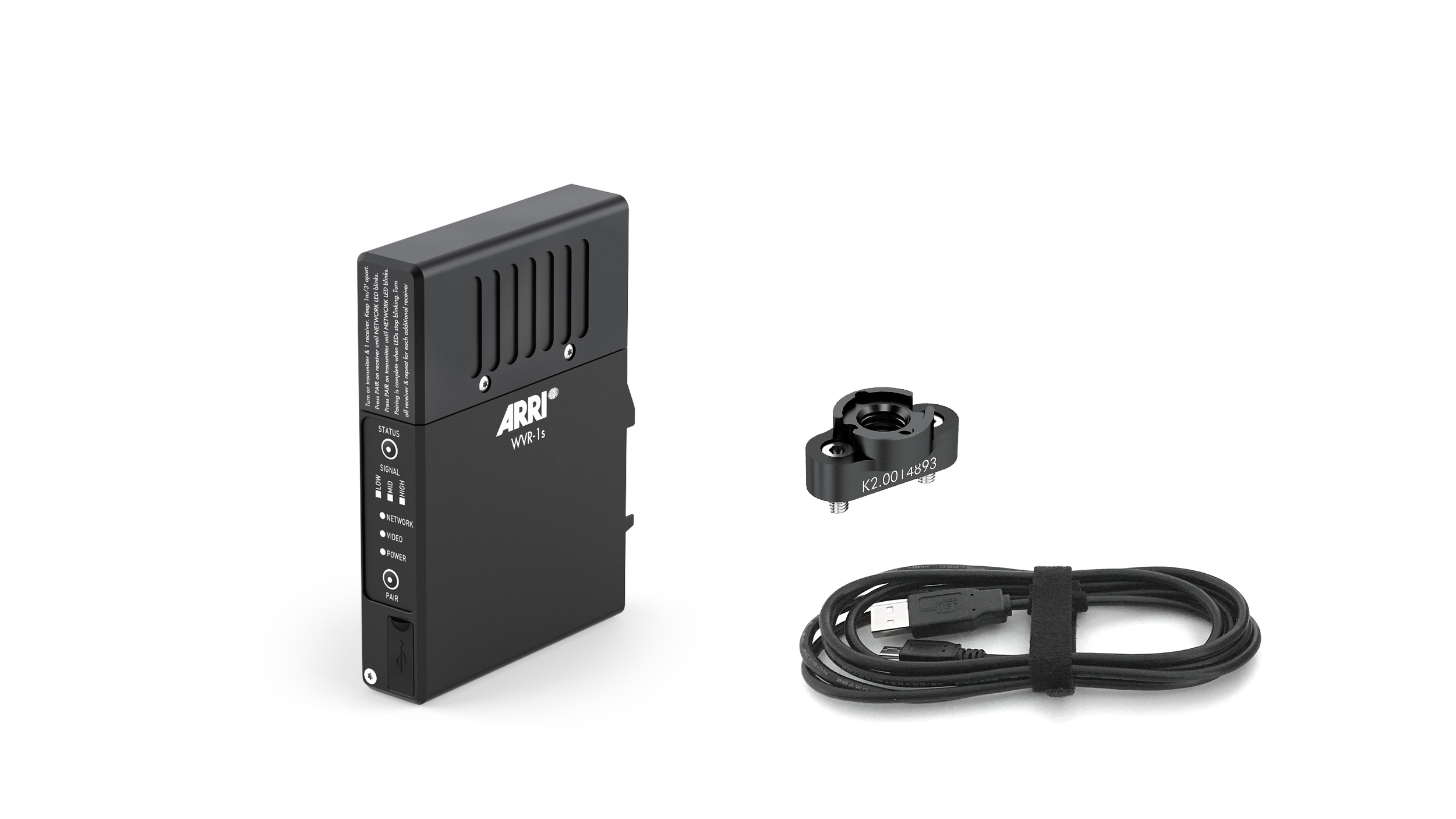

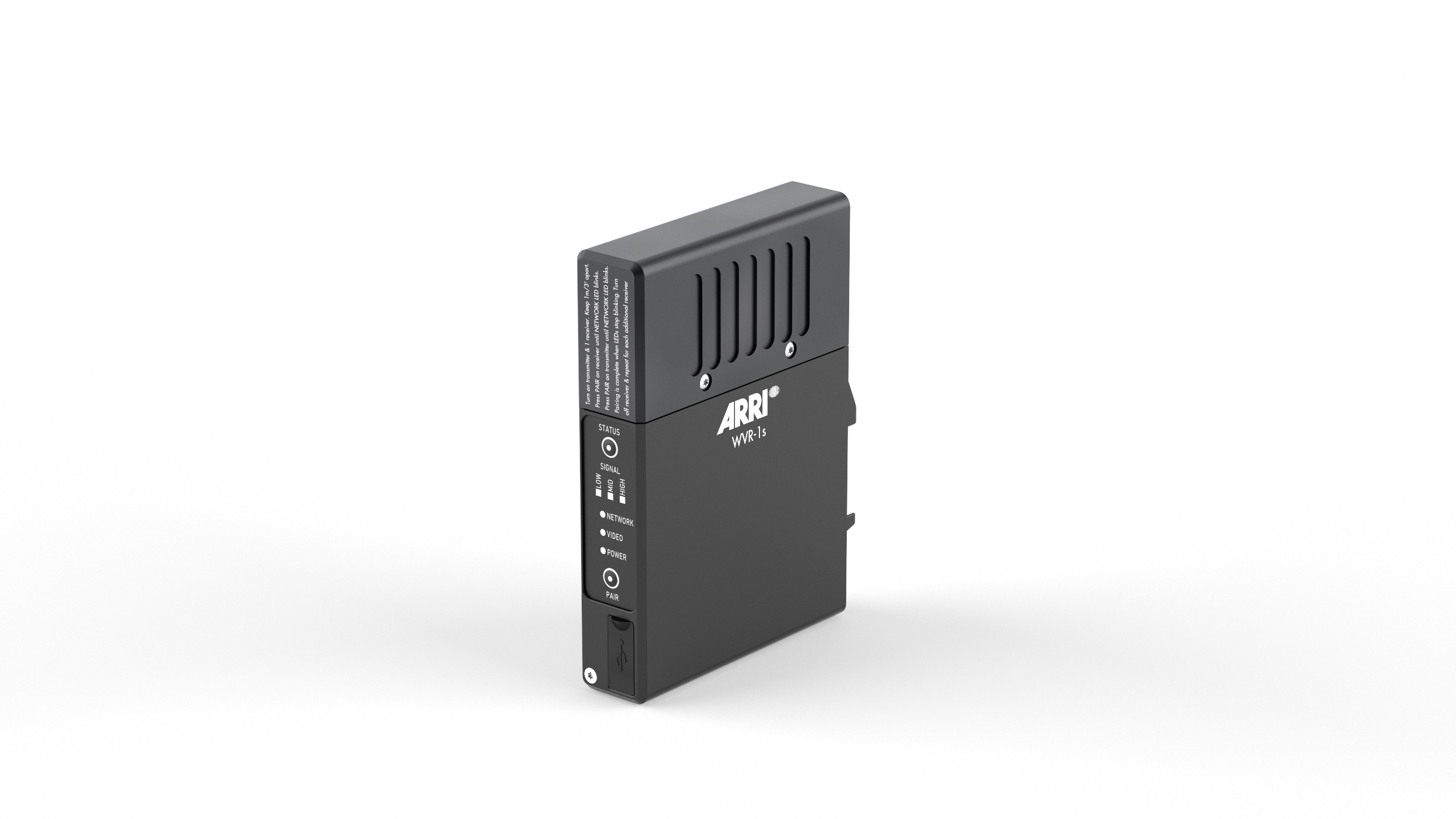

Wireless Video Receiver WVR‑1s

A rugged, small receiver with robust interfaces


A smaller, lighter-weight counterpart to ARRI’s WVR‑1, the WVR‑1s can be quickly paired with the ARRI WVS transmitter and has an operational range of up to 150 meters/500 feet. It is easy to incorporate into a battery-powered hand-held viewing set-up.


  • Small and lightweight
  • Reliable transmission
  • Simple and fast pairing
  • Spray and dust-proof aluminum housing with protective collars for connectors
  • Robust mechanical and electrical interfaces
  • Large temperature range
  • Bespoke battery adapters for V Mount, Gold Mount, Bebob VMICRO or AMICRO
  • Power output to power receiver and monitor from one battery
  • Legal with local certifications

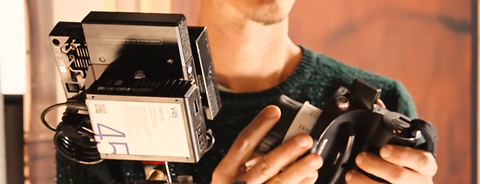

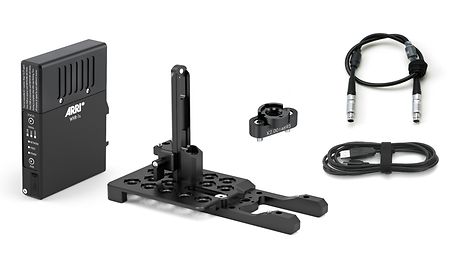

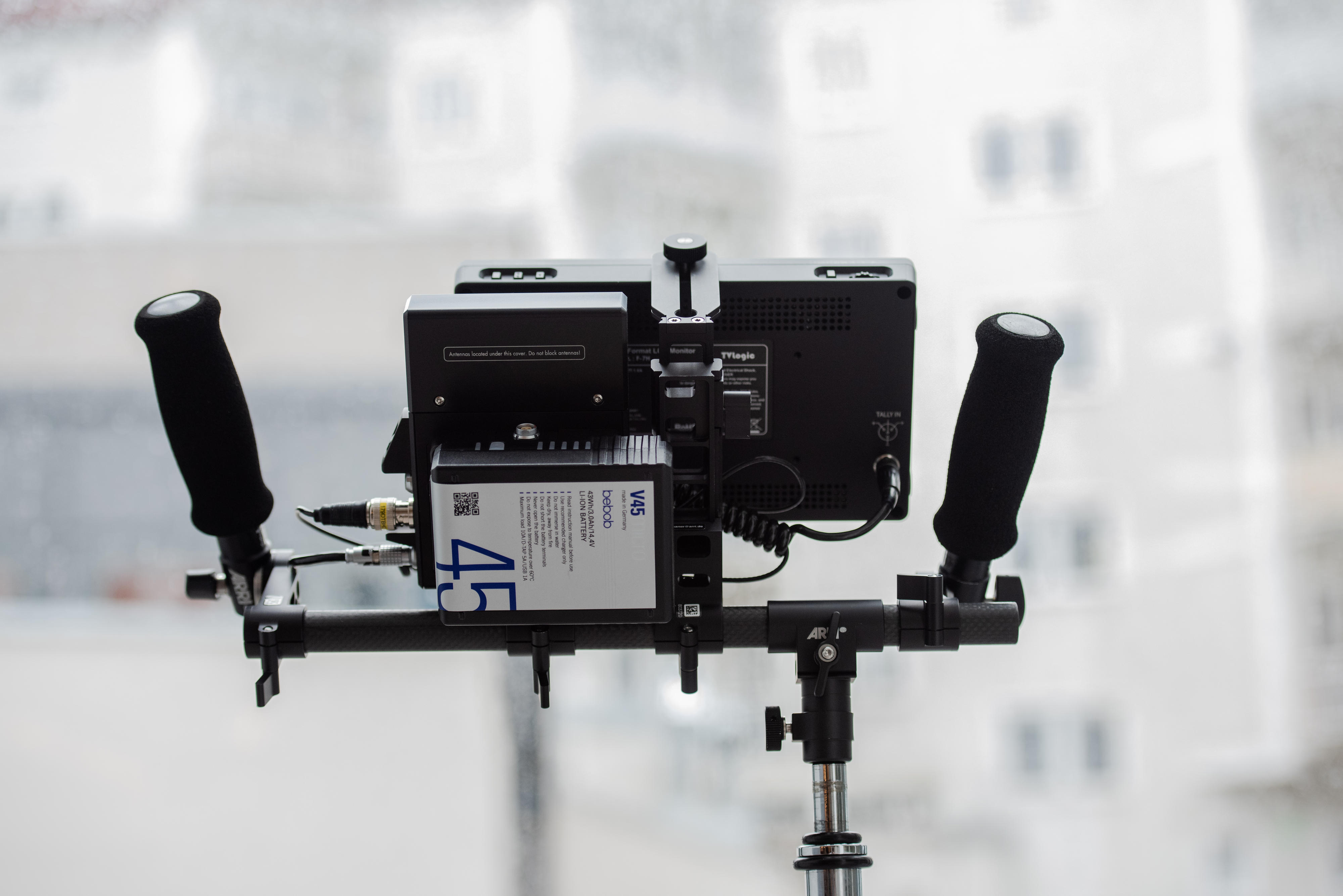

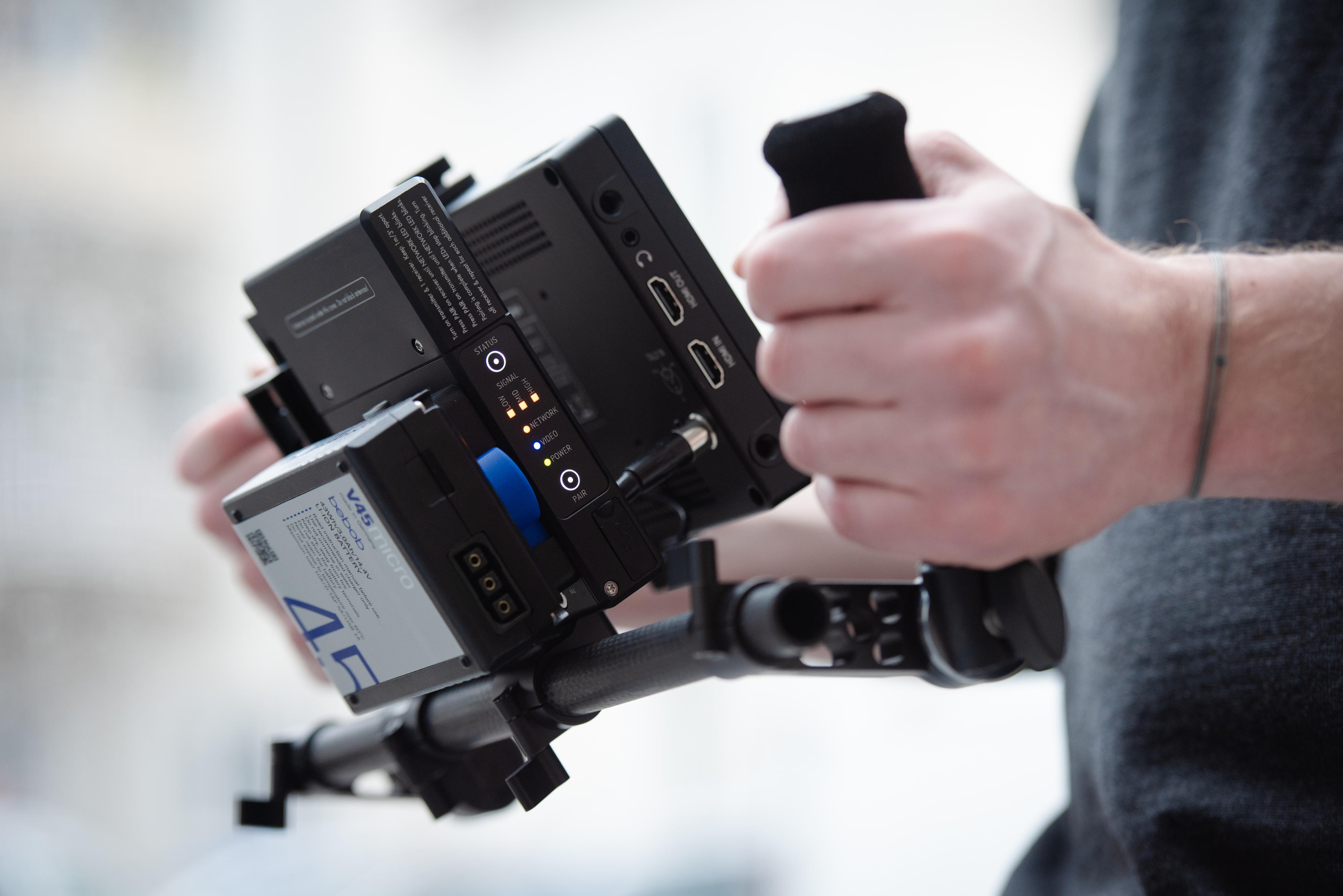

Building a compact focus unit for handheld or stationary use is especially easy with the WVR‑1s. With its integrated 12V power output and an optional V-Mount plate, it collaborates perfectly with any small monitor and the WCU‑4.

Camera Assistant Florian Schuster

We are using the built-in transmitter in the ALEXA LF and found the wireless video system to be great. Personally I found the receiver was a bit big and heavy when mounted onto my WCU‑4, but ARRI were kind enough to give me a prototype of the new, smaller WVR‑1s receiver, which worked brilliantly and made the WCU‑4/monitor/receiver setup much lighter.

Kate Molins, focus puller on “Top Boy”

Technical Data

RangeUp to 150 m / 500 feet line of sight
Supported resolution and framerates

1080p: 23.976, 24, 25, 29.97, 30, 50, 59.94, 60

1080i: 48, 50, 60

1080psf: 23.967 (displayed as 1080i48),

24 (displayed as 1080i48),

25 (displayed as 1080i50),

29.97 (displayed as 1080i60),

30 (displayed as 1080i60)
Delay< 1ms
Encryption128 bit AES encryption

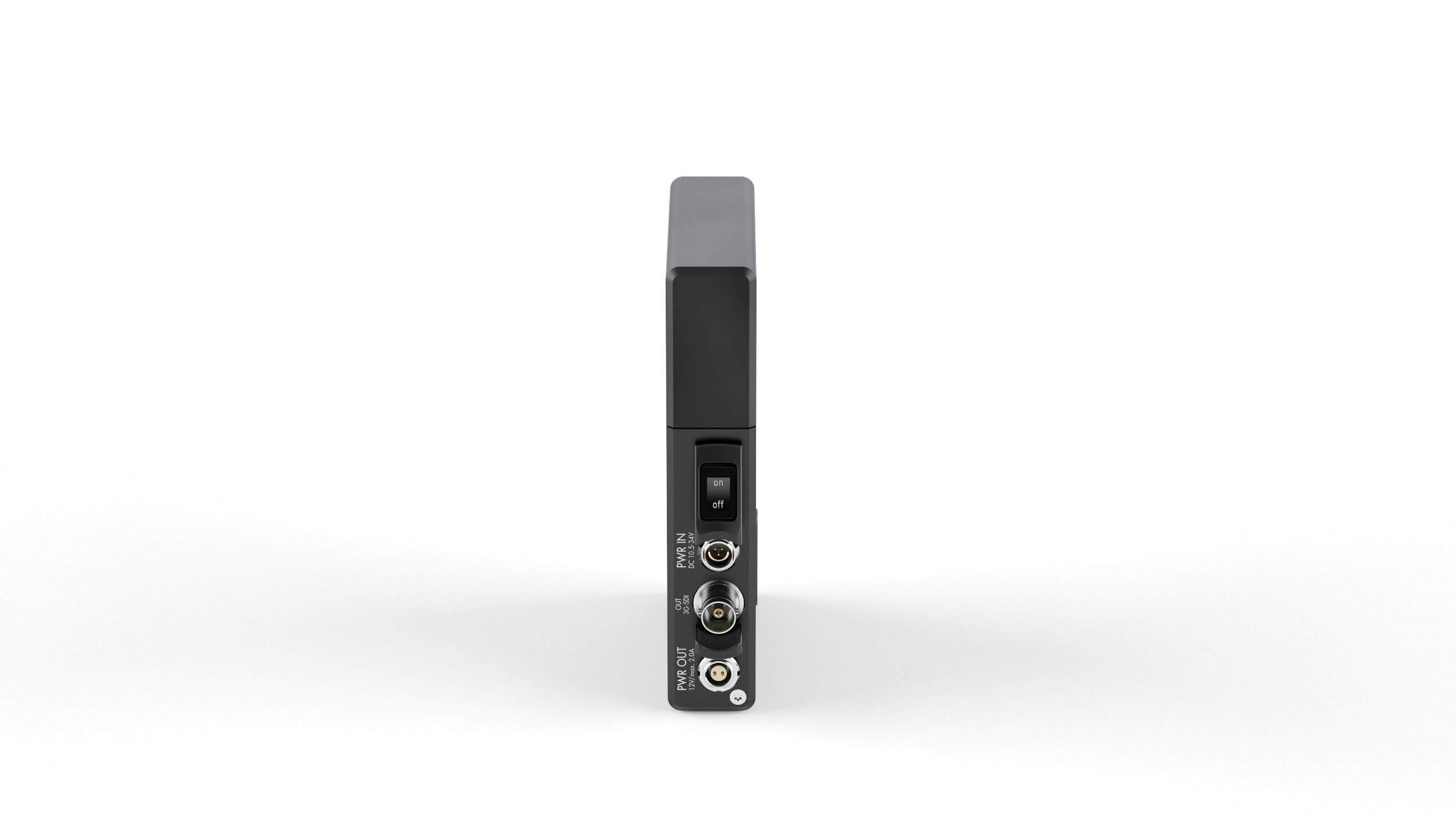

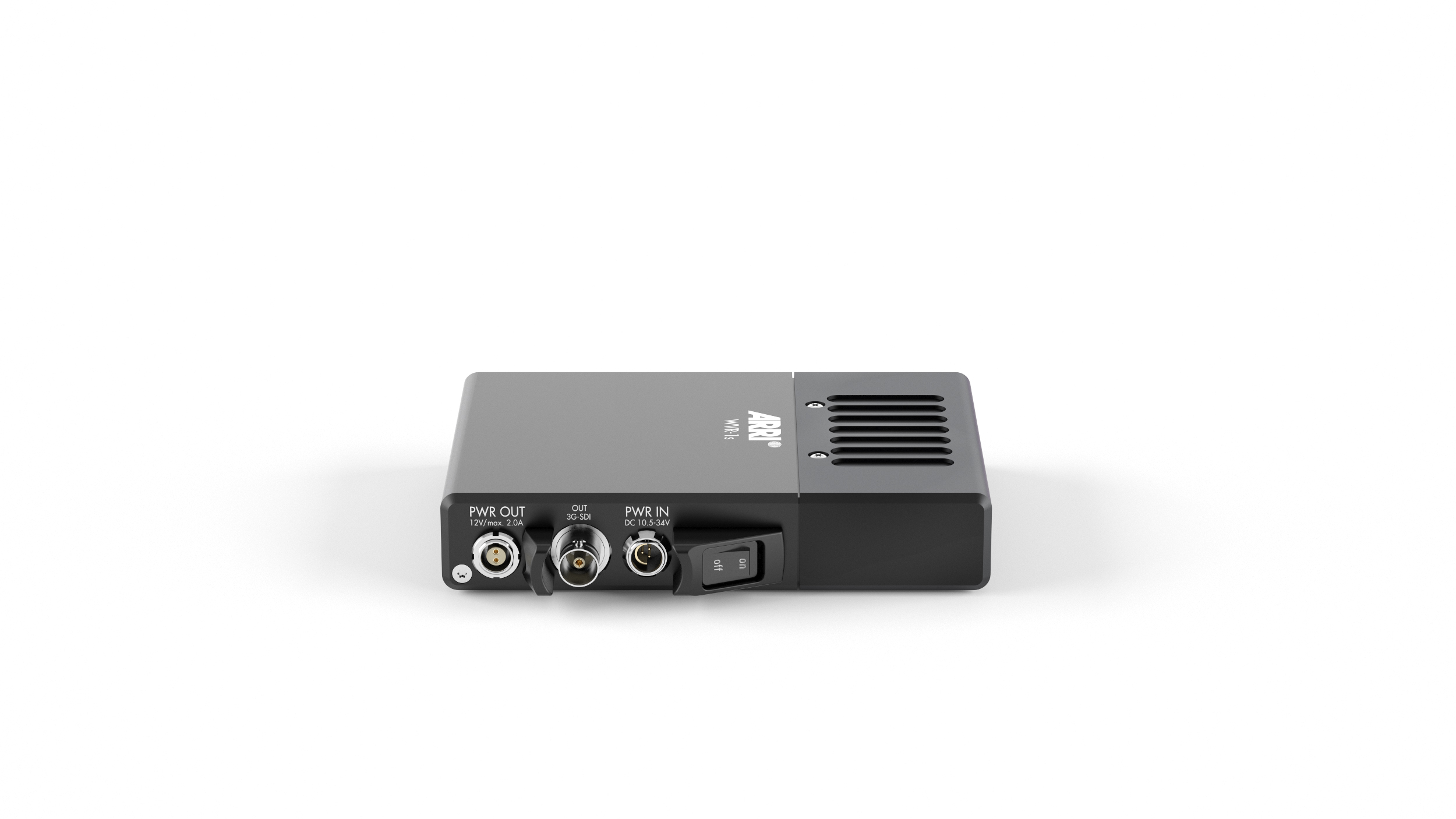

Signal1 x 3G HD-SDI OUT

1 x POWER IN DC 10.5 V – 34 V

1 x Interface for WVR‑1s Battery Adapter Plates

1 x POWER OUT 12 V

6 W power consumption
Operating Temperature-20 °C to +45 °C / -4 °F to 113 °F
Size and weight

95 x 132 x 25 mm / 3.7 x 5.2 x 1 in

380 g / 13.40 oz
Compatible with

- Wireless Video Receiver WVT‑1

- ARRI WVS transmitters in ALEXA LF and ALEXA SXT W cameras
Software updatesThrough USB plug and ARRI Wireless Video tool software
