ARRI Signature Zoom

Consistent Performance. Signature Look.

ARRI Signature Zooms - Group - 02_horizontal
Unrivalled cine zoom system

Accompanying and matching ARRI Signature Primes, the four new Signature Zoom lenses render the most natural and beautiful images ever seen from a cine zoom. Designed for any large-format or Super 35 camera, they are uniformly fast at T2.8 and offer an unrivalled focal length range.

ARRI Signature Zoom 45-135 T2.8 - front.00_00_49_18.Standbild007
Beautiful image – closer to a high-end prime than ever before

Signature Zoom features

Unsurpassed image quality

  • Same timeless look as Signature Primes
  • Smooth and flattering flesh tones
  • Elegant out-of-focus highlights
  • No ramping – consistent exposure through all focal lengths
  • Unchanging image quality across the zoom and iris ranges
  • Minimal color aberration
B003C005_200906_R221.[0132547-0000000].arx

Better shots, faster

  • The high image quality means these zooms can be used in more situations, saving time
  • Shaped and honed flares mean fewer delays
  • Lightweight design means quicker setups
  • Exceptional close-focus means reduced lens changes
Feature_2_SZ_Article

Future-proof investment

  • Designed for any format up to full frame and any camera
  • Ideal for HDR, with superb color rendition and shadow detail
  • 8K resolution for future requirements
  • ARRI build quality for long product life
Feature_3_SZ_Article

The widest, most consistent focal length range

  • Consistency of look and quality across all four zooms
  • Each lens has a fast T-stop of T2.8
  • System covers 16 mm to 510 mm (with extender)
  • Largest focal length range in the industry
Feature_4_SZ_Article
ARRI Signature Zoom 45-135 T2.8 - front.00_00_17_22.Standbild004
Personality without imperfection

A detailed look at each lens

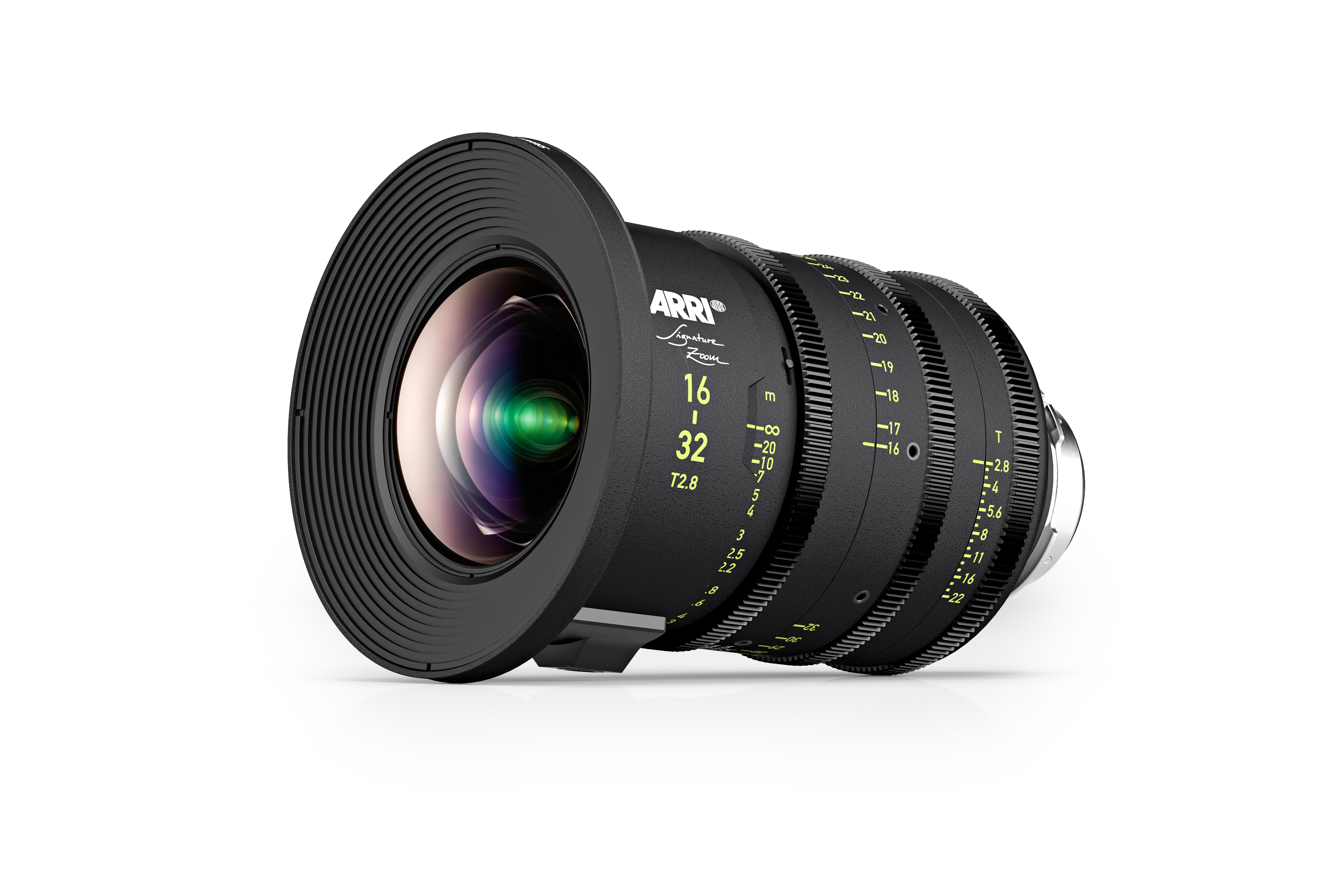

Signature Zoom 16-32 mm

  • Wide field of view with minimal distortion
  • Highly sophisticated optical design
  • Exceptional sharpness
  • Length: 21.2 cm / 8.3”
  • T-stop: T2.8
  • Front diameter: 156 mm
  • Weight: 3.8 kg / 8.4 lbs. (tbc)
  • Close focus: 19.4 cm / 7.6” (MOD from lens front)


Signature Zoom 24-75 mm

  • An all-rounder lens covering most shooting needs
  • Lightweight and versatile
  • Length: 24.4 cm / 9.6”
  • T-stop: T2.8
  • Front diameter: 114 mm (same as Signature Primes)
  • Weight: 4.1 kg / 9.0 lbs. (tbc)
  • Close focus: 41 cm / 16.2" (MOD from lens front)


Signature Zoom 45-135 mm

  • Compact, lightweight and well-balanced for handheld and stabilizer systems
  • Length: 30 cm / 11.8”
  • T-stop: T2.8
  • Front diameter: 114 mm (same as Signature Primes)
  • Weight: 3.7 kg / 8.2 lbs.
  • Close focus: 65.6 cm / 25.8" (MOD from lens front)


Signature Zoom 65-300 mm

  • Stunning bokeh that matches the Signature Primes
  • No ramping, all the way to 300 mm
  • Comes with an integrated handle
  • Length: 42 cm / 16.5”
  • T-stop: T2.8
  • Front diameter: 156 mm
  • Weight: 8.1 kg / 19.9 lbs.
  • Close focus: 133 cm / 52.5” (MOD from lens front)

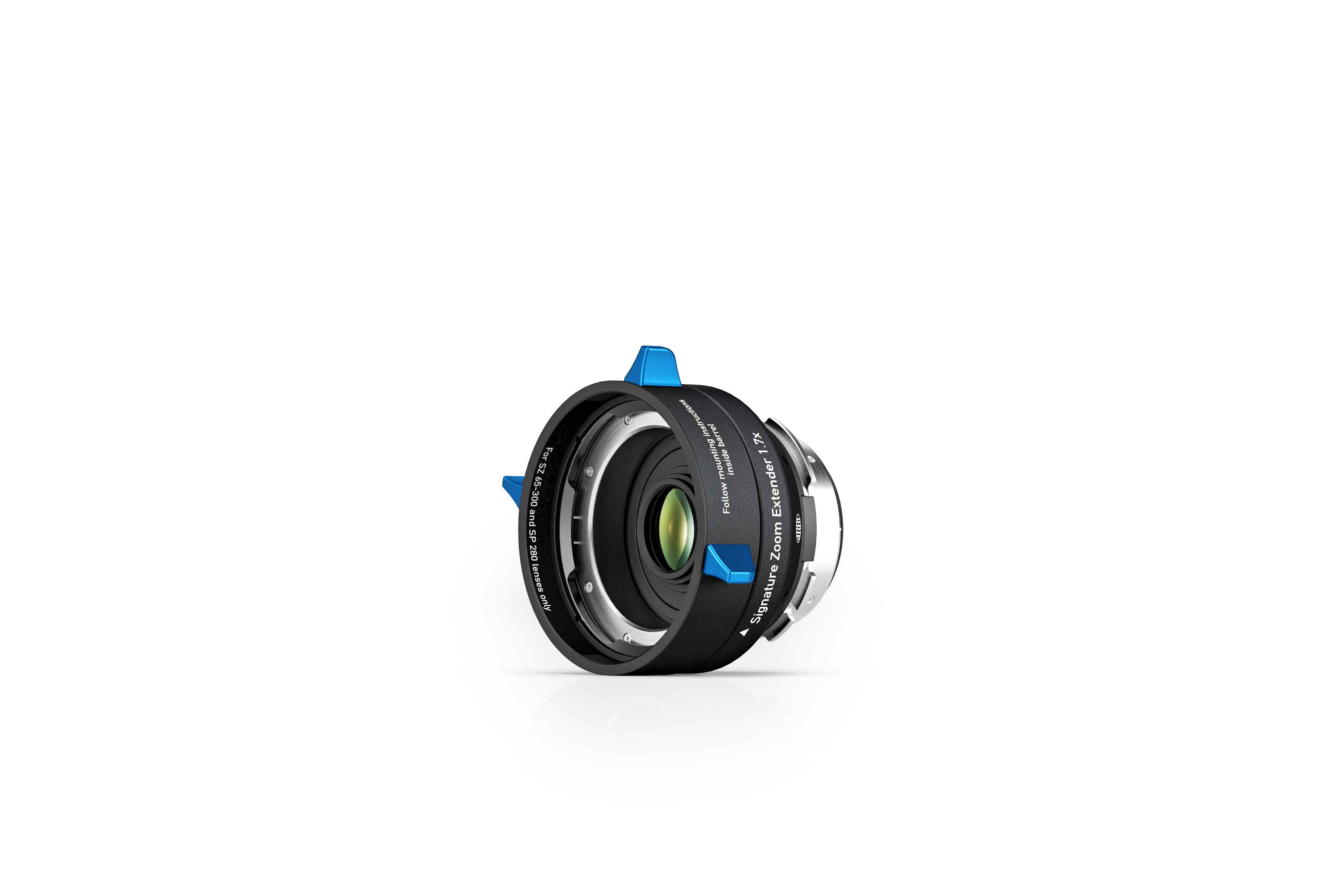

Signature Zoom Extender 1.7x

  • Significantly extends the reach of the Signature lens family
  • Turns the 65-300/T2.8 into a 110-510/T4.9
  • Also works with the 280 mm Signature Prime, making it a 480/T4.9
  • High-performance optics and coatings
  • Specifically designed to maintain the timeless Signature look

Quotes

The optical quality of the Signature Zooms is very good – far beyond my previous experience of zoom lenses. To me they don’t feel inferior to primes, especially with the T2.8 aperture, which is very convenient and undoubtedly reduces the lighting setup.

Cinematographer Luo Pan ASC

Quote_SZ_Luo_Pan_image

The Signature Zooms are a great complement to the arsenal of Signature Primes, matching in quality and characteristics. I really like the range of the lenses, which go from offering great portrait-style options all the way to the true long-lens feel of a proper zoom.

Cinematographer Jimmy Matlosz

_HST4830

The resolution of the ARRI Signature Zooms is very high, and yet skin tones are natural. I especially like the smooth out-of-focus imaging, and was surprised how well they match Signature Primes. If I hadn't shot the images myself, it would be very difficult for me to tell which ones were prime and which were zoom.

Cinematographer Da Mi

Da Mi

The zooms behaved phenomenally. The color separation and detail in low light is exceptional, throughout the zoom range.  There is no exposure ramping whatsoever, and the bokeh is beautiful.

Cinematographer Logan Schneider

Logan Schneider

Signature Zooms have exactly the same style as the Signature Primes – natural, crisp, and sharp on the one hand, but soft and aesthetic on the other. These are lenses which are suitable for any project.

Cinematographer Cao Yu

CY1
ARRI Signature Primes + Zooms Series - Releass Groups - 4 - 2020-09_horizontal
Signature lens family

Significant extension of the Signature lens family, with the same timeless look as Signature Primes.

ARRI Signature lenses cover a focal length range of 12 mm to 510 mm, which is the largest in the industry.


Video room

Technical data

NameARRI Signature Zoom 16-32/T2.8ARRI Signature Zoom 24-75/T2.8ARRI Signature Zoom 45-135/T2.8ARRI Signature Zoom 65-300/T2.8ARRI Signature Zoom 65-300/T2.8
+ 1.7x Extender

Lens mount

LPL

LPL

LPL

LPL

LPL

Aperture

T2.8 - T22

T2.8 - T22

T2.8 - T22

T2.8 - T22

T4.95 - T39.62

MOD from sensor plane (minimum marked distance)

0.45 m / 1'6"

0.7 m / 2'6"

1 m / 3'4"

1.8 m / 6'

1.8 m / 6'

MOD from lens front

 0.194 m / 7.64"

0.412 m / 16.22"

0.656 m / 25.83"

1.8 m / 6'

1.8 m / 6'

Benifit_2_SZ
Smooth focus fall-off

Compatibility of Signature lenses


ARRI Signature Prime and Signature Zoom lenses are equipped with the LPL (Large Positive Locking) lens mount. A wider diameter and shorter flange focal depth allow LPL lenses to be small and lightweight, with a fast T-stop and pleasing bokeh—a combination of features that would not be possible with the old PL lens mount.

ARRI has shared LPL specifications openly and free-of-charge across the industry, establishing the LPL lens mount as a standard interface between cameras and lenses. ARRI LPL lens mounts are available for ALEXA 65, ALEXA LF, ALEXA Mini LF, ALEXA Classic/XT/SXT, ALEXA Mini and AMIRA cameras. In addition, third parties offer LPL lens mounts for cameras, director's viewfinders, and lens testing tools, so ARRI Signatures and other LPL lenses can be universally used.

FAQ

  • Aesthetically, yes. You should expect Signature Zooms and Signature Primes to intercut seamlessly. Their center resolution, warm hue, skin tone rendition, bokeh, and focus roll-off are a perfect visual match.

    Completely eliminating any one aberration results in enhancing another, so we pursued a balanced approach such that no single aberration stands out. We then built our look upon this base.

    Signature Primes are remarkably distortion free, to a degree only possible with prime lenses, so Signature Zooms will show more distortion by comparison, but considerably less than one might see in other zooms.

    While most Signature Primes exhibit no visible focus breathing, Signature Zooms do show some of this at longer focal lengths, where it is less noticeable to the eye. At the wide end, where backgrounds tend to be sharper and focus breathing is more obvious, they show no visible breathing.


  • Similar to Signature Primes, you will see consistent corner illumination when these lenses are used at equivalent focal lengths. This results in the familiar ARRI Signature “cat’s eye” bokeh at wide open apertures, no matter which focal length is employed.

    ARRI Signature Primes show this effect at T1.8, transitioning to perfectly round bokeh by T2.5. ARRI Signature Zooms see the same change from T2.8 to T5.6. This is by design.

    The exposure in the center of the image DOES NOT CHANGE with focal length. There is no overall drop in exposure, only a subtle vignette designed to match the characteristics of ARRI Signature Primes. This illumination characteristic is consistent across all ARRI Signature Zooms. Changing from a Signature Zoom to another Signature Zoom or a Signature Prime does not result in a dramatic change in look.


  • There are many aspects of the ARRI Signature Zooms’ design that contribute to their light weight. Chief among these is their advanced optical design and the use of machined magnesium in their housings.

  • All ARRI lenses are built from scratch to our exact specifications. We define the look and feel, and our manufacturers must achieve our goals within very fine tolerances. Our Signature Zoom manufacturing partner produces high-precision optics for a number of other industries, and has never made a cinema lens before. This made them receptive to crafting a lens with a radical new look for digital cinema, as they had no preconceived notions regarding what a cinema lens should look like.

    Every lens offered for sale under the ARRI name is an original design, and the Signature lenses are no different.


  • No. LPL is the new standard for the digital era. It is designed around the specific needs of digital cameras and will not work on film cameras. LPL’s reduced flange depth allows for high-performance lens designs across multiple formats.

    All Signature lenses are near telecentric. Light exiting the rear of the lens will strike the sensor at as close to a right angle as possible across the entire surface of the sensor. This eliminates a number of digital sensor-specific optical and color problems and should work with all foreseeable future sensor designs. A requirement for near telecentricity is that the rear of the lens must be as large as the sensor. For this reason, a PL mount lens can never be made telecentric for a large-format sensor.

  • No. ARRI Signature lenses are multi-format lenses. They work just as well with Super 35 sensors as they do with large-format sensors, and they perform spectacularly on cameras with both small and large pixel pitches.

  • The Signature Zooms share the same timeless look as the Signature Primes. They are high-resolution lenses, but this does not equate to a clinical look. An exceptionally high-resolution lens resolves the transitions across edges with greater accuracy, resulting in an image that captures all the detail present in the scene, but without harshness. Rather than edges feeling hard or aliased, they feel smooth and natural. One cinematographer describes the Signature look as “like looking through a beautiful window.”

  • The ARRI Signature look is designed to meet the needs of HDR, both technically and aesthetically. As displays increase in resolution and dynamic range, they feel more immersive. Lens aberrations, such as chromatic aberration, become more noticeable and distracting. ARRI Signature Zooms are perfect for fast-paced feature and television productions with a long shelf life, as their look will improve with time rather than degrade.

  • The ARRI Signature Zoom 1.7x Extender is a high-performance optical device which is optimized for the Signature Zoom 65-300/T2.8 and Signature Prime 280/T2.8. It delivers its best optical performance with just those two lenses. We can only guarantee mechanical clearance for these two lenses, so please don’t use the extender with any other lenses. When you use the extender with these two lenses you have to remove the Magnetic Rear Filter Holder from the base lens and put it onto the rear of the extender.

  • No, only the Signature Prime 12/T1.8, the Ultra Wide Zoom 9.5-18/T2.9, and the Anamorphic Ultra Wide Zoom 19-36/T4.2 have optical image rotation.

  • Every Signature Zoom lens will have a dedicated aluminum case.

  • Changing between metric and imperial scale (meters and feet) is quite simple. Just remove the existing scale ring, turn it by 180° and assemble it again.

  • Every Signature Zoom will be delivered with a zoom lever, which you can mount at different positions and angles.
