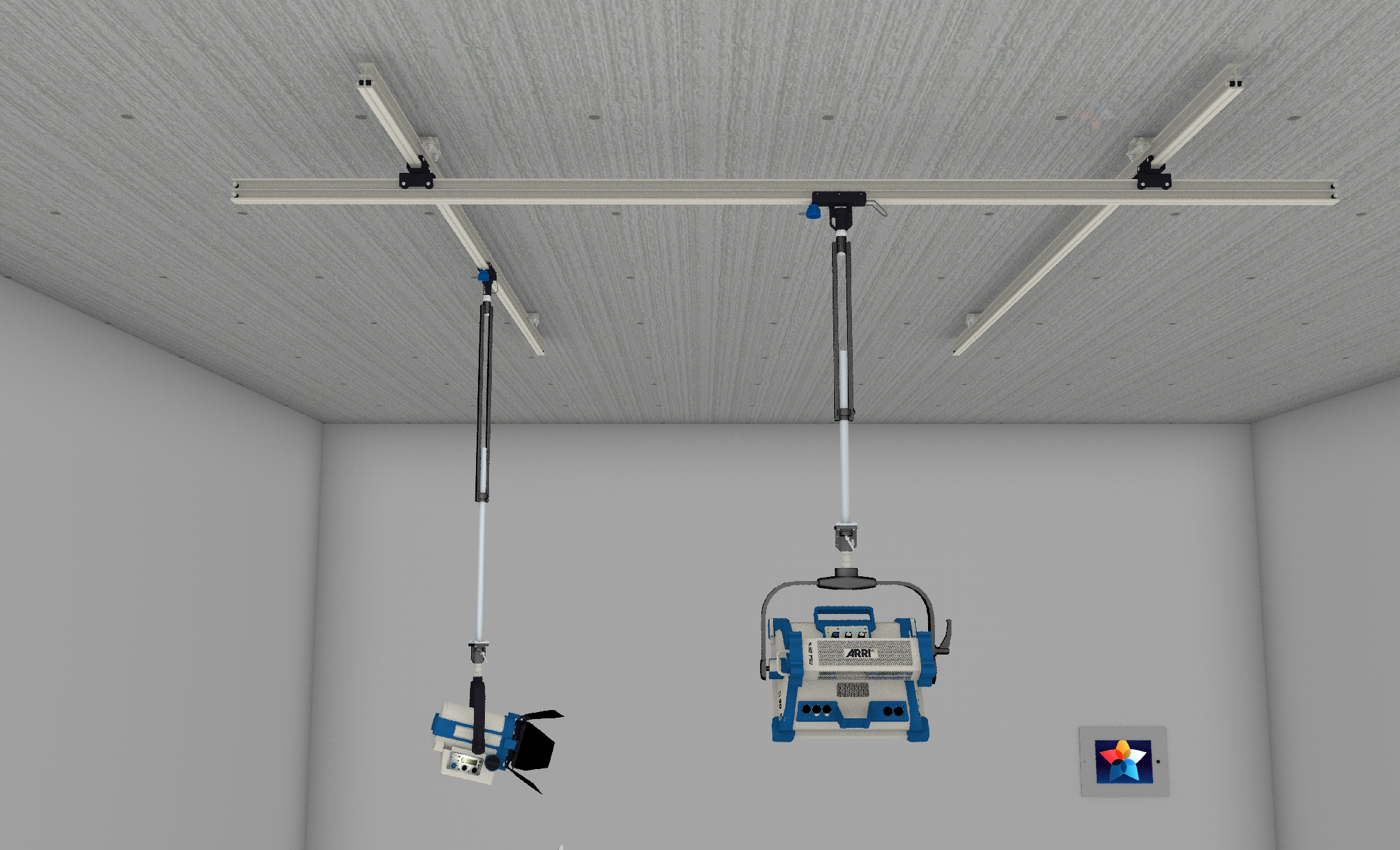

S20067-03-E-11a Small Kit Persp

Studio Kit Small

Explore ARRI Studio Kit Small. Supporting you to be ready-to-shoot with the minimum of pro lights.

This set has been designed for 1 talent. The recommended shooting distance is up to 4m.

The set content of the media lighting kits is our recommendation and the kits are ready-to-buy. However individual adjustments by adding and replacing products or accessories are possible at any time. Please contact your local ARRI System Partner or the ARRI System Group in your region for enquiries and adaptations to your individual requirements. For contact details see the “Get in touch” section.

Set Content

  • Hardlight to add texture and character in your image.

    1x L5 C

    equipped with 8 leaf barndoor DMX cable safety wire

    Power:   115 W

    Recommended height: up to 4m

    Lifetime: 50.000h

  • Soft light for perfect skin tones and creating that beautiful soft wrap around light.

    1x S30-C

    equipped with honeycomb 60°, DMX cable and safety wires, allow light effects and simulation of almost any colour filter.

    Power:   220 W

    Lifetime: 50.000h

  • (1) ARRI App Stellar for operation on Android tablet (IOS on request). The software will be delivered preinstalled on an Android tablet, 32 GB, 9,7” with 15m connection cable. The software is available subscription-based, the 1st year is included. The Stellar App provides with an intuitive and easy to use design for control of the lights.

    • LAN connectivity between Stellar Lighting Control App and first SkyPanel (15 m cable)
    • SkyPanel node for DMX transmission to other specified lights (daisy chain)
    • Wireless transmission is available alternatively on request

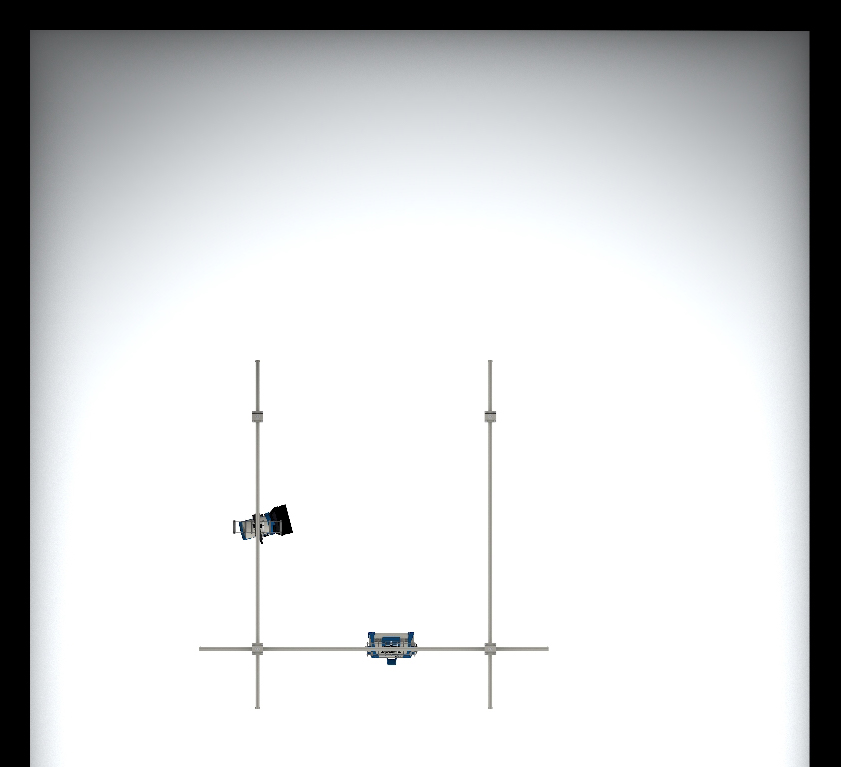

  • The rail system is designed with (1) couple of 3m aluminium rails and (1) 3m movable rail mounted with double carriages to the main rail couple for horizontal positioning of each lighting fixture. The rail systems are expandable by length via additional rails.

    Suspensions instruments:
    As suspensions are specified (2) telescopic drop-arm extension (113- 200cm) for vertical repositioning of the lighting fixtures.

    The aluminium rails are specified to be mounted on a concrete ceiling of your space. Suspensions to a dedicated working height can be specified.

  • Stands (optionally): (2) robust stands for mobile operation (max height of 340 cm, closed length of 132 cm and weight of 10,7 kg); delivered with 6 sand bags. The stands are available for a preferential price to be added to the package.

  • The distribution is specified with a 16A Power cord with inline SPE-PRCD protection  (Schuko IN and PowerCON True 1 OUT), 2x 3m and 2x 5m daisy chain power cables (PowerCON TRUE 1), (2) power distribution boxes specified with (5) respectively (6) powerCon True 1 OUT, one of those additionally with (1) USB A to power the lighting control tablet.

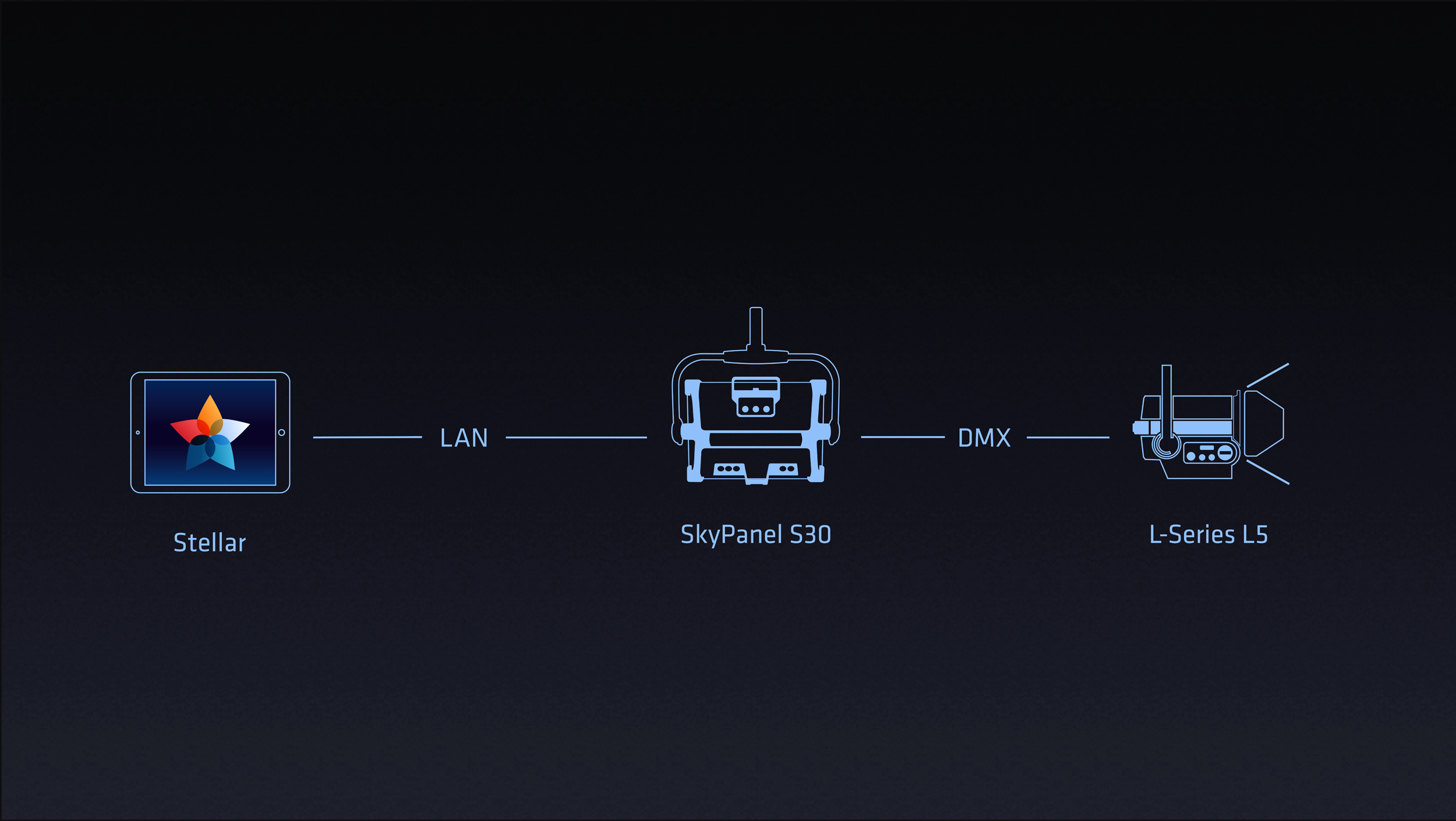

Workflow Illustration

2020 09-28 Studio Kit Small Workflow Illustration

Enquiries and Technical Support

Our kits include everything you need to get started right away. Please contact your local ARRI System Partner or the ARRI Solutions Group in your region as mentioned in the “Get in touch” section.
