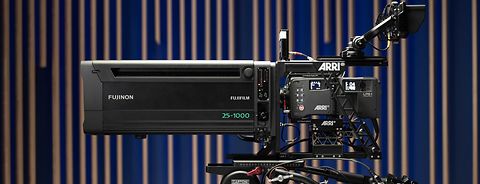

ALEXA 35 Live
Detailed technical overview
Technical Data
Model
ALEXA 35 Live
Sensor Type
Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array
Sensor Maximum Number of Photosites and Size
4096 x 2304
24.88 x 14.00 mm / 0.980 x 0.551"
Ø 28.55 mm / 1.124"
24.88 x 14.00 mm / 0.980 x 0.551"
Ø 28.55 mm / 1.124"
Sensor Frame Rates
0.75 - 60 fps
Weight
∼2.9 kg / 6.4 lbs (camera body with three antennas and PL Mount (Hirose))
Photosite Pitch
6.075 μm
Sensor Active Image Area (photosites)
4K 16:9: 4096 x 2304
4K 2:1: 4096 x 2048
3.8K 16:9: 3840 x 2160
2K 16:9 S16: 2048 x 1152
4K 2:1: 4096 x 2048
3.8K 16:9: 3840 x 2160
2K 16:9 S16: 2048 x 1152
Sensor Active Image Area (dimensions)
4K 16:9: 24.9 x 14.0 mm / 0.980 x 0.551"
4K 2:1: 24.9 x 12.4 mm / 0.980 x 0.490"
3.8K 16:9: 23.3 x 13.1 mm / 0,918 x 0.516"
2K 16:9 S16: 12.4 x 7.0 mm / 0.490 x 0.276"
4K 2:1: 24.9 x 12.4 mm / 0.980 x 0.490"
3.8K 16:9: 23.3 x 13.1 mm / 0,918 x 0.516"
2K 16:9 S16: 12.4 x 7.0 mm / 0.490 x 0.276"
Recording File Container Size (pixel)
4K 16:9: 4K (4096 x 2304), UHD (3840 x 2160), 2K (2048 x 1152), HD (1920 x 1080)
4K 2:1: 4K (4096 x 2048)
3.8K 16:9: UHD (3840 x 2160)
2K 16:9 S16: 2K (2048 x 1152)
4K 2:1: 4K (4096 x 2048)
3.8K 16:9: UHD (3840 x 2160)
2K 16:9 S16: 2K (2048 x 1152)
Recording File Image Content (pixel)
Identical to Recording File Container Size
Dynamic Range
17 stops
Exposure Index
Adjustable from EI 160 - 6400 in 1/3 stops
Shutter
Electronic shutter, 5.0°- 356° or 1s - 1/8000s
Recording Formats
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
Recording Media
Codex Compact Drive 1TB (CA08-1024)
Codex Compact Drive 2TB (CB16-2048)
Codex Compact Drive 2TB (CB16-2048)
Recording Frame Rates
Apple ProRes 4K 16:9 - 4K: 60 fps
Apple ProRes 4K 16:9 - UHD: 60 fps
Apple ProRes 4K 16:9 - 2K: 60 fps
Apple ProRes 4K 16:9 - HD: 60 fps
Apple ProRes 4K 2:1 - 4K: 60 fps
Apple ProRes 3.8K 16:9 - UHD: 60 fps
Apple ProRes 2K 16:9 S16 - 2K: 60 fps
Apple ProRes 4K 16:9 - UHD: 60 fps
Apple ProRes 4K 16:9 - 2K: 60 fps
Apple ProRes 4K 16:9 - HD: 60 fps
Apple ProRes 4K 2:1 - 4K: 60 fps
Apple ProRes 3.8K 16:9 - UHD: 60 fps
Apple ProRes 2K 16:9 S16 - 2K: 60 fps
Recording Modes
Standard real-time recording
Viewfinder Type
Multi Viewfinder MVF-2 with 4" flip-out touchscreen monitor
Viewfinder Technology
OLED viewfinder display
LCD flip-out monitor
LCD flip-out monitor
Viewfinder Resolution (pixel)
OLED: 1920 x 1080
Viewfinder Diopter
Adjustable from -5 to +5 diopters
Color Output
1. ARRI Color Management Display Render Transforms:
- Rec 709
- Rec 2020
- Rec 2100 PQ
- Rec 2100 HLG
2. LogC4
- Rec 709
- Rec 2020
- Rec 2100 PQ
- Rec 2100 HLG
2. LogC4
Look Control
ARRI Look File ALF-4:
- Import of custom 3D LUT
- ASC CDL parameters (slope, offset, power, saturation)
ARRI Look Library
ARRI Textures
Live Painting of Video Parameters
- Import of custom 3D LUT
- ASC CDL parameters (slope, offset, power, saturation)
ARRI Look Library
ARRI Textures
Live Painting of Video Parameters
White Balance
Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps
Color correction adjustable range from -16 to +16 CC
1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
Color correction adjustable range from -16 to +16 CC
1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
Filters
Four position built-in motorized ND filter: Clear, 0.6, 1.2, 1.8
Fixed optical low pass, UV, IR filter
Fixed optical low pass, UV, IR filter
Image Outputs
2x VF custom CoaXPress connectors for MVF-2 viewfinder
2x 12G SDI (BNC): 422 1.5G HD, 422 3G HD, 444 3G HD, 422 6G UHD, 422 12G UHD, 444 12G UHD
2x 12G SDI (BNC): 422 1.5G HD, 422 3G HD, 444 3G HD, 422 6G UHD, 422 12G UHD, 444 12G UHD
Lens Squeeze Factors
1.00
Exposure and Focus Tools
False Color
Zoom
Aperture and Color Peaking
Zoom
Aperture and Color Peaking
Audio Input
1x LEMO 6pin balanced stereo line in with 12V power output
(line input max. level +24 dBu correlating to 0 dBFS)
Two built-in microphones for scratch audio
With Audio Extension Module AEM-1: additional 3x TA3 connectors (MIC/Line, +48 V, AES)
With LPS-1 Fiber Camera Adapter: additional 2x TA3 connectors (MIC/Line, +48 V, AES)
(line input max. level +24 dBu correlating to 0 dBFS)
Two built-in microphones for scratch audio
With Audio Extension Module AEM-1: additional 3x TA3 connectors (MIC/Line, +48 V, AES)
With LPS-1 Fiber Camera Adapter: additional 2x TA3 connectors (MIC/Line, +48 V, AES)
Audio Output
SDI (embedded)
3,5mm stereo headphone jack (on MVF-2)
3,5mm stereo headphone jack (on MVF-2)
Audio Recording
4 channel linear PCM, 24 bit 48 kHz
Remote Control Options
MVF-2 viewfinder as wired remote control with 10m/33ft cable
Camera Control Monitor CCM-1
Camera Companion App
ARRI Electronic Control System (ECS)
Web-based remote control via Ethernet & WiFi (beta version)
Camera Access Protocol (CAP) via Ethernet & WiFi
GPIO interface for integration with custom control interfaces
Skaarhoj Remote Control Panel
Camera Control Monitor CCM-1
Camera Companion App
ARRI Electronic Control System (ECS)
Web-based remote control via Ethernet & WiFi (beta version)
Camera Access Protocol (CAP) via Ethernet & WiFi
GPIO interface for integration with custom control interfaces
Skaarhoj Remote Control Panel
Interfaces
1x LBUS (LEMO 4-pin) for lens motors, daisy chainable
1x SERIAL (LEMO 4-pin) for distance measuring accessories
1x TC (LEMO 5-pin) for timecode In/Out
1x ETH (LEMO 10-pin) for remote control and service
1x SYNC IN (BNC) for Genlock synchronization
1x RET IN (BNC, switchable on SDI 2)
1x USB-C for user setups, look files etc.
1x Rear Interface (18-pin Pogo) for connection of modules and battery adapters
1x SERIAL (LEMO 4-pin) for distance measuring accessories
1x TC (LEMO 5-pin) for timecode In/Out
1x ETH (LEMO 10-pin) for remote control and service
1x SYNC IN (BNC) for Genlock synchronization
1x RET IN (BNC, switchable on SDI 2)
1x USB-C for user setups, look files etc.
1x Rear Interface (18-pin Pogo) for connection of modules and battery adapters
Wireless Interfaces
Built-in WiFi module (IEEE 802.11b/g)
Built-in White Radio for ARRI ECS lens and camera remote control
Built-in White Radio for ARRI ECS lens and camera remote control
Lens Mounts
ARRI LPL Mount (LBUS)
ARRI PL-to-LPL Adapter
ARRI PL Mount (LBUS)
ARRI PL Mount (Hirose)
ARRI EF Mount (LBUS)
Leitz M Mount for ARRI
ARRI PL-to-LPL Adapter
ARRI PL Mount (LBUS)
ARRI PL Mount (Hirose)
ARRI EF Mount (LBUS)
Leitz M Mount for ARRI
Flange Focal Depth
LPL mount: 44 mm
PL mount: 52 mm
PL mount: 52 mm
Power Input
1x PWR (LEMO 8-pin)
1x BAT (camera rear interface / battery adapter)
20.5 - 33.6 V DC
1x BAT (camera rear interface / battery adapter)
20.5 - 33.6 V DC
Power Consumption
~ 90 W (Camera body and MVF-2)
Power Outputs
1x RS (Fischer 3-pin) for 24 V accessory power out, start/stop and shutter pulse
1x 12 V (LEMO 2-pin) for 12 V accessory power out
1x LBUS (LEMO 4-pin) for lens motors & 24 V power out, daisy-chainable
1x AUDIO (LEMO 6-pin) for balanced stereo line in and 12 V accessory power out
1x ETH (LEMO 10-pin) for remote control, service and 24 V accessory power out
With Power Distribution Module PDM-1: additionally 4x 24 V, 2x 12 V and 1x D-Tap
1x 12 V (LEMO 2-pin) for 12 V accessory power out
1x LBUS (LEMO 4-pin) for lens motors & 24 V power out, daisy-chainable
1x AUDIO (LEMO 6-pin) for balanced stereo line in and 12 V accessory power out
1x ETH (LEMO 10-pin) for remote control, service and 24 V accessory power out
With Power Distribution Module PDM-1: additionally 4x 24 V, 2x 12 V and 1x D-Tap
Measurements (HxWxL)
147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0"
(camera body with PL lens mount (Hirose))
(camera body with PL lens mount (Hirose))
Operating Temperature
-20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics, IP 51
Storage Temperature
-30° C to +70° C / -22° F to +158° F
Sound Level
< 20 dB(A) at 30fps, recording 4K 16:9 - UHD, Apple ProRes 4444 XQ, ≤ +30° ambient temperature
Software Licenses
ALEXA 35 Cine License (optional)
ALEXA 35 Multicam License (included)
ALEXA 35 Multicam License (included)
