Lens Motors and Lens Data Encoder

Small all-rounders

The fast and versatile cforce motors control all common cine-style lenses with remarkable speed and torque. Equipped with twin LBUS connectors and using daisy chain technology, up to three cforce plus or mini motors can be linked in a row.

Features cforce Motors

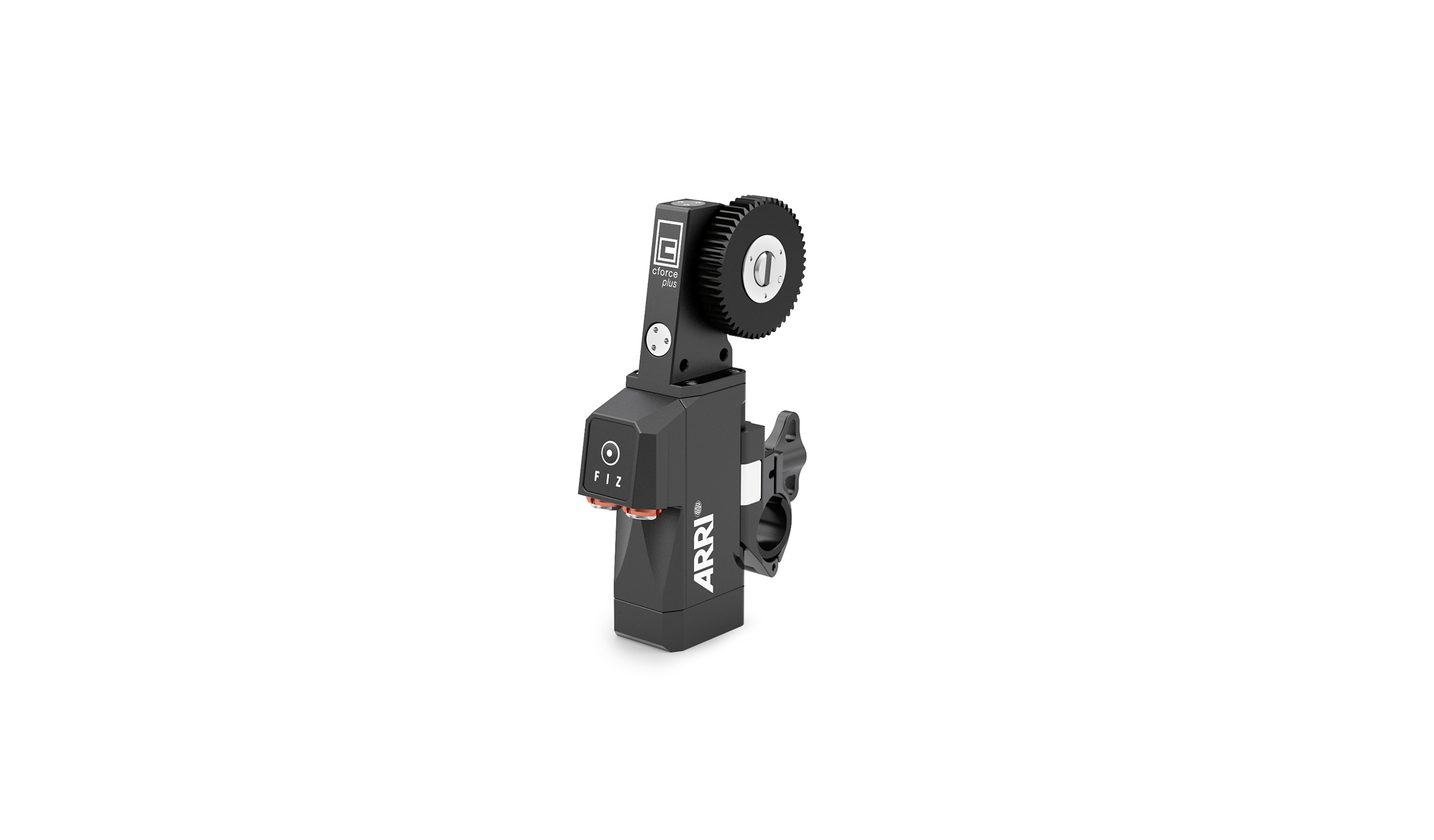

cforce plus Motor Basic Set

K0.0010103 | KK.0008824

Strong enough to move the geared rings of any standard lens.
Features twin LBUS connectors that allow up to three cforce motors to be daisy-chained in a row.
Various rod-to-rod mounting options including a Hill Bracket rosette, and the standard rod bracket for maximum flexibility on set.
Connects to ARRI’s RIA‑1 and UMC-4 motor controllers for camera-independent setups.
Fully compatible with LBUS-compatible cmotion devices.

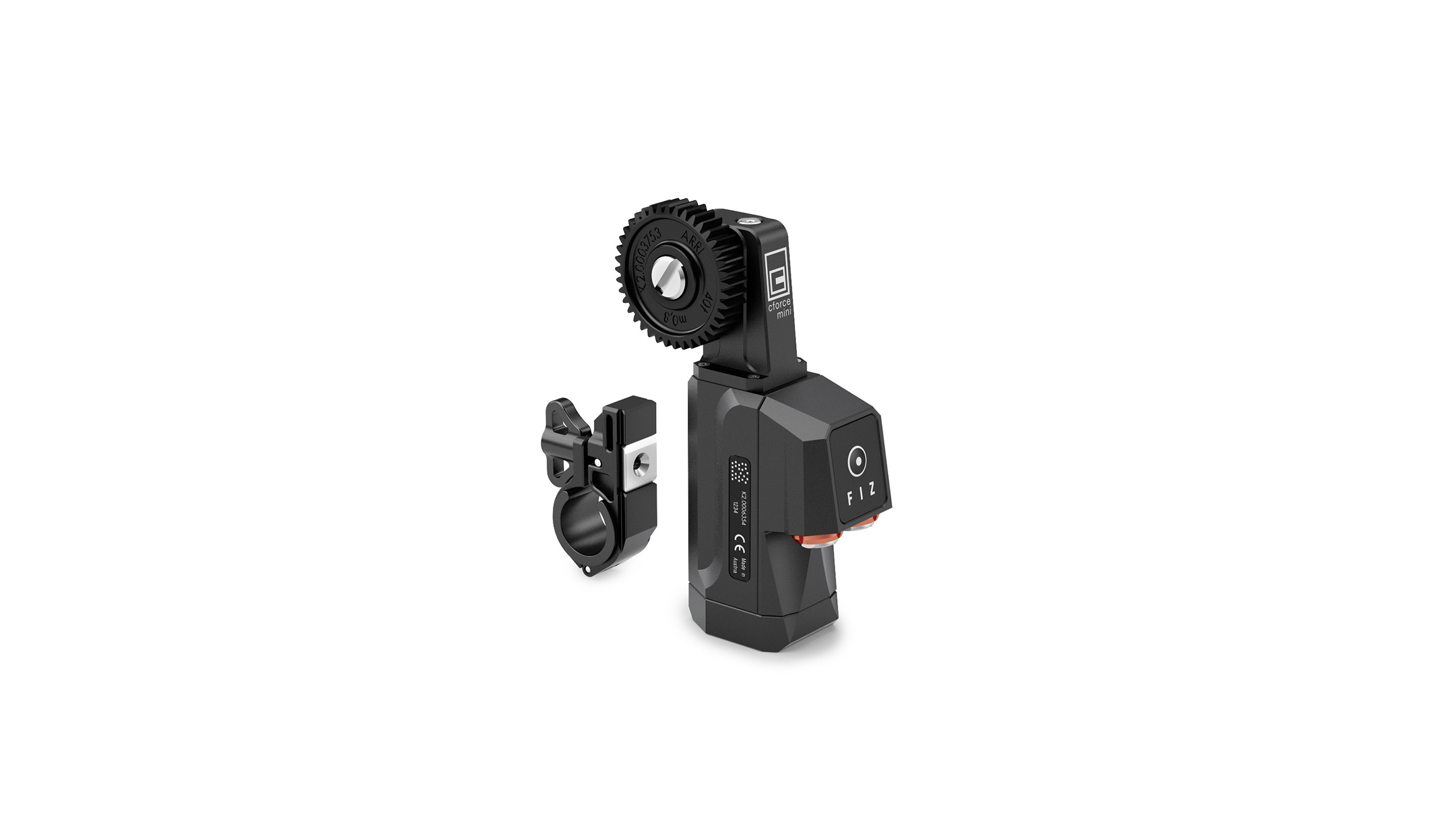

cforce mini Motor Basic Set

K2.0006355

Small and lightweight
Intelligent motor that adjusts lens settings on weight-optimized camera configurations with remarkable speed and torque.
Equipped with twin LBUS connectors and using daisy chain technology, up to three cforce mini motors can be linked in a row.
Connects directly to ALEXA Cameras (LBUS connector on camera body or mount required) providing a super-lightweight, integrated solution.
Connects to the Radio Interface Adapter RIA‑1 as well, making the cforce mini usable with any camera.

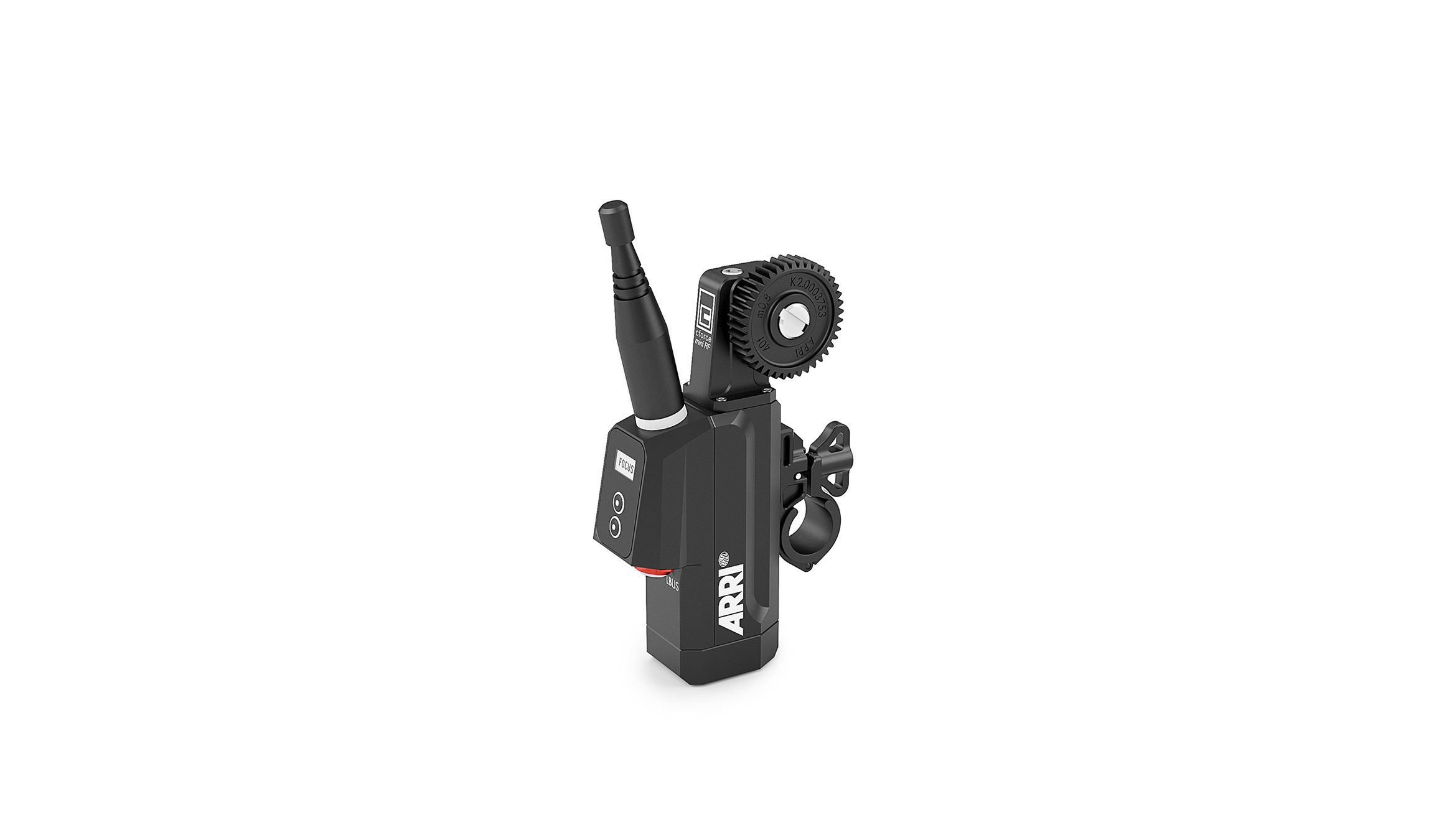

cforce mini RF Basic Set

KK.0016804

Supports Sony and RED camera control licenses for Hi‑5
Can be assigned as AUX axis motor
Supports network mode for split focus, iris, zoom control
Compatible with Hi‑5, WCU‑4, SXU-1 and legacy white-coded radio controllers
Wireless lens file transfer
Fast performance: speed 240 Teeth/sec

Compatibility

WCU‑4 or SXU-1 + cforce mini RF + cforce mini/plus motors + AMIRA

UMC-4 + cforce mini/plus motors

Override Function available

cforce mini RF + cforce mini/plus motors + OCU‑1

cforce mini RF + cforce mini/plus motors + Master Grips

WCU‑4 or SXU-1 + UMC-4 + cforce mini/plus

WCU‑4 or SXU-1 + AMC-1 + cforce mini/plus motor

OCU‑1 – UMC-4 + cforce mini/plus motors

Override Function available

cforce mini

cforce mini Basic Set

K2.0006355
- Show Components
cforce mini Motor Unit

K2.0006354

cforce mini motor unit without gears, cable and bracket.
cforce mini Clamp Console 2

K2.0036610

Compatible with ARRI's CLM-5, cforce mini, cforce mini RF, Operater Control Unit OCU-1 and cmotion's cPro motor. Includes: K2.0038503 1x cforce mini Clamp Insert 2 19/15mm ...
- Show Components
cforce mini Clamp Insert 2 5/8in

K2.0038504

Accessories for cforce mini Motors

CLM-5/cforce mini Clamp Console 19/15mm

K2.0006176

Compatible with CLM-5, cforce mini and cforce mini RF.
- Show Components
CLM-5/cforce mini Clamp Insert 19/15mm

K2.0006175

For 15 mm rods. The clamp insert is compatible to cforce mini, cforce mini RF, cforce plus and CLM-5 clamp consoles.
CLM-5/cforce mini Gear m0.8/32p, 40t

K2.0003753

For ARRI/Zeiss focus/iris/zoom, Panavision focus, Fujifilm PL focus/iris/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.8, 40t, 25mm

K2.0006372

25mm wide gear for moving lens barrels. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.4/64p, 80t

K2.0006367

For Panavision iris, Fujinon ENG iris, Canon ENG iris. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.5, 64t

K2.0006365

For Canon ENG focus/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.6, 56t

K2.0006363

For Fujinon ENG focus/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear 48p, 60t

K2.0006370

For Panavision zoom. Compatible with CLM-5, cforce mini and cforce mini RF.

cforce plus

cforce plus Basic Set

K0.0010103 | KK.0008824
- Show Components
cforce plus Motor Unit

K2.0008819

cforce plus motor unit without gears, cable and bracket.

Accessories for cforce plus Motors

cforce plus Clamp Console 19/15mm

K2.0008678
- Show Components
CLM-4, cforce plus Gear Screw

K2.72127.0

Connects CLM-4 gear flange to motor unit.
cforce plus Gear m0.8/32p, 60t

K2.0009335
CLM-4/cforce plus Gear m0.8/32p, 50t, 25mm

K2.72112.0

25 mm wide gear for moving lens barrels. Includes metal gear flange. Compatible with CLM-4 and cforce plus motors.
CLM-4/cforce plus Gear m0.6, 70t

K2.72111.0

For Fujinon ENG focus/zoom. Includes metal gear flange.
CLM-4/cforce plus Gear 48p, 75t

K2.0002044

For Panavision zoom.
CLM-4/cforce plus Gear m0.5, 80t

K2.72110.0

For Canon ENG focus/zoom. Includes metal gear flange.
CLM-4, cforce plus Gear m0.4/64p, 100t

K2.72109.0

For Panavision iris, Fujinon ENG iris, Canon ENG iris. Includes metal gear flange.
cforce plus Gear m0.8, 60t, 25mm

K2.0010365

25mm wide gear for moving lens barrels.
cforce plus Rod-to-Rod Adapter 15mm

K2.72106.0

15 mm rod adapter that attaches to CLM-4 and cforce plus motors.
cforce plus Rod-to-Rod Bridge 15mm

K2.72107.0

15 mm rod-to-rod adapter that attaches to CLM-4 and cforce plus motors.
cforce plus Rosette for Hill Bracket

K2.72113.0

Rosette adapter that connects CLM-4 and cforce plus motors to Hill brackets.
Motor offset console

K2.52035.0

Offset rod extension for tight spaces and small builds. Fits 19mm or 15mm support rods.

The power you need

Three lens motors offer a range of torque, speed, and size choices. Powerful and fast, the CLM-3 is perfect for heavy lenses in difficult conditions, while the CLM-4 is well suited to all standard lenses. The CLM-5 is an extremely small and lightweight motor designed for demanding setups involving gimbals and aerial drones.

Features Controlled Lens Motors

Controlled Lens Motor CLM-3 Set

K0.60057.0

Strong and Fast, as well as it drives even heavy, difficult-to-operate lenses under extreme low temperature conditions.
The CLM-3's modular concept separates motor unit, gear, cable and bracket to make handling and maintenance much easier.
CLM-3 gear modules can attach on either side of the motor, providing more flexibility and various mounting options. The rod bracket can be mounted horizontally or vertically over a quick clamp shoe. Additional inserts make mounting to 19 mm, 15 mm or 5/8” support systems possible.
Fully compatible to all common lens gear systems.
Available gears include Module 0.8, 0.6, 0.5, 0.4/Pitch 32, 48, 64.

Controlled Lens Motor CLM-4 Set

K0.60185.0

Very quiet lens motor that will drive any standard lens in a smooth and pleasant manner.
The modular concept separates motor unit, gear, cable and bracket to make handling and maintenance much easier.
The system offers various rod-to-rod mounting options, a Hill Bracket rosette, as well as the standard rod bracket for maximum flexibility on set.

Controlled Lens Motor CLM-5 Set

K2.0006361

Super small and lightweight (205 g incl. clamp console, gear and cable)
Fast and responsive motor for smaller, smooth lenses on lightweight camera setups
Easily exchangeable motor cable
Compatible with ALEXA Plus module, UMC-4, SMC-1 and cmotion motor controllers

Compatibility

UMC-4 + CLM motors

Override Function available

WCU‑4 or SXU-1 + UMC-4 + CLM motors

WCU‑4 or SXU-1 + SMC-1 + CLM motor

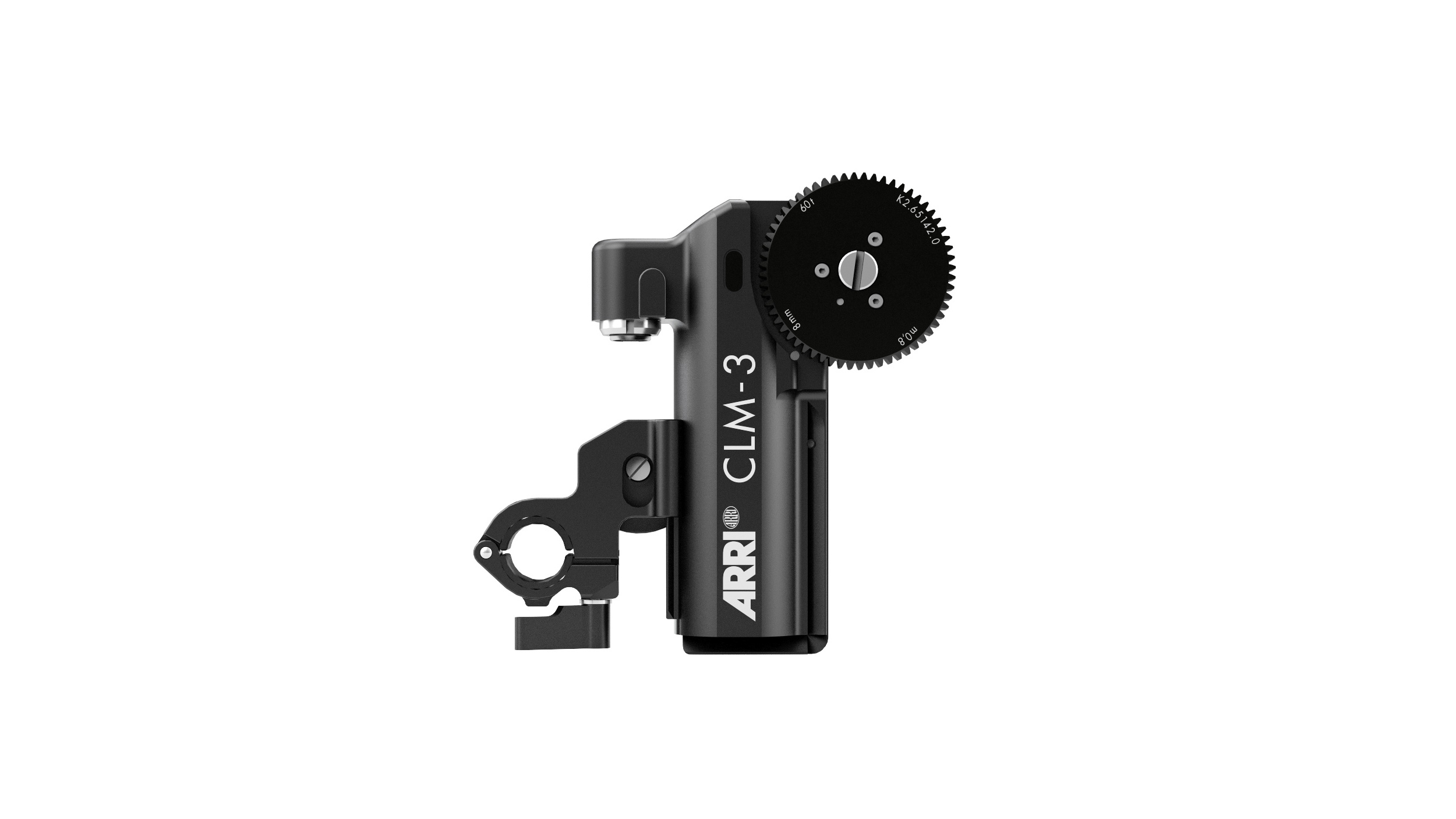

Controlled Lens Motor CLM-3

Controlled Lens Motor CLM-3 Basic Set

K0.60057.0 | KK.0005854
- Show Components
CLM-3 Motor Unit

K2.65143.0

CLM-3 motor unit without gears, cable and bracket.
Cable CLM-3 (7p) - CLM/FIZ (12p) (0,8m/2.6ft)

K2.65145.0

Connects CLM-3 motor with motor controllers.
CLM-3 Standard Clamp Console

K2.65140.0

With integrated dovetail slide; includes magnetic inserts for use with 15mm support rods. Also fits to CLM-4 motor unit.
CLM-3 Clamp Console 2

K2.65141.0

Special clamp console for use with film cameras and short lenses in the area of the camera mirror shutter. With integrated dovetail slide; includes magnetic inserts for use...
19mm to 15mm inserts for CLM-3, pair

K2.0002077

For 15 mm rods.
19mm to 5/8in inserts for CLM-3, pair

K2.66180.0

For Panavsion 5/8 inch rods.
CLM-3 Gear m0.8/32p, 60t

K2.65142.0

For ARRI/Zeiss focus/iris/zoom, Panavision focus, Fujifilm PL focus/iris/zoom.
CLM-3 Gear m0.8/32p, 60t, 25mm

K2.0001256

25 mm wide gear for moving lens barrels.
CLM-3 Gear m0.6, 84t

K2.0001918

For Fujinon ENG focus/zoom.
CLM-3 Gear 48p, 90t

K2.0002055

For Panavision zoom.
CLM-3 Gear m0.5, 96t

K2.0001914

For Canon ENG focus/zoom.
CLM-3 Gear m0.4/64p, 120t

K2.0001911

For Panavision iris, Fujinon ENG iris, Canon ENG iris.

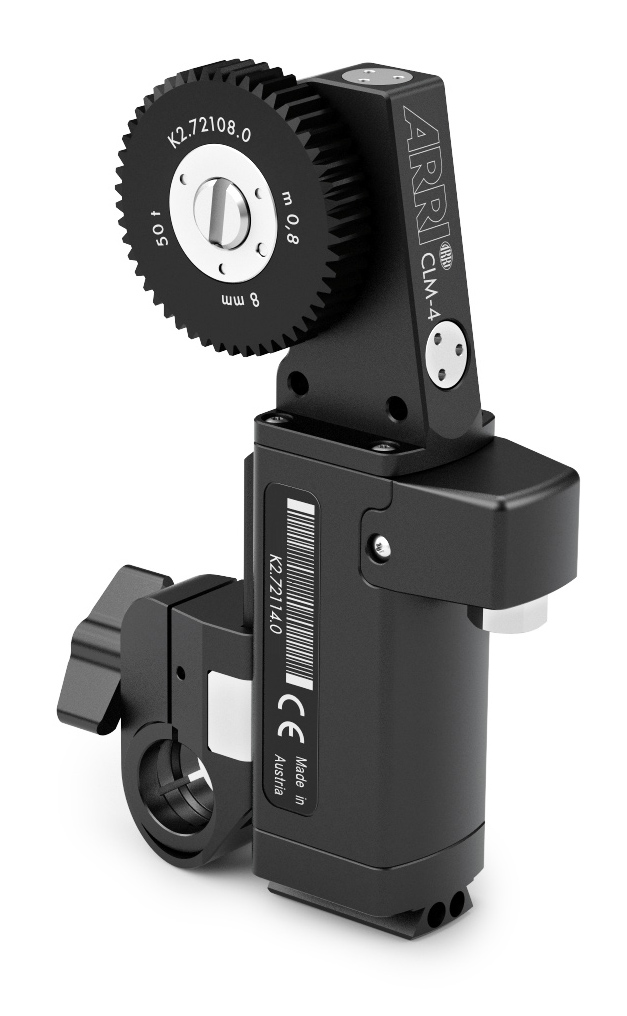

Controlled Lens Motor CLM-4

Controlled Lens Motor CLM-4 Basic Set

K0.60185.0 | KK.0005855
- Show Components
CLM-4 Motor Unit

K2.72114.0

CLM-4 motor unit without gears, cable and bracket.
Cable CLM-4 (8p) - CLM/FIZ (12p) (0,8m/2.6ft)

K2.72099.0

Connects CLM-4 motor with motor controllers.
CLM-4 Standard Clamp Console 19/15mm

K2.72101.0

Includes insert for 15mm rods.
CLM-4 Clamp Insert 19mm to 15mm

K2.0002080

For 15 mm rods.
CLM-4 Clamp Insert 5/8in

K2.72115.0

For Panavision 5/8 inch rods.
CLM-4 Gear Set m0.8, 0.6, 0.5, 0.4

K2.72116.0

Set of gear rings including one metal gear flange.
CLM-4 Gear Flange

K2.0000244

Optional upgrade for those who want to have a metal core gear flange on each gear module.
CLM-4 Gear m0.8/32p, 50t

K2.72108.0

For ARRI/Zeiss focus/iris/zoom, Panavision focus, Fujifilm PL focus/iris/zoom. Includes metal gear flange.

Accessories for CLM-4 Motors

CLM-4, cforce plus Gear Screw

K2.72127.0

Connects CLM-4 gear flange to motor unit.
CLM-4/cforce plus Gear m0.8/32p, 50t, 25mm

K2.72112.0

25 mm wide gear for moving lens barrels. Includes metal gear flange. Compatible with CLM-4 and cforce plus motors.
CLM-4/cforce plus Gear m0.6, 70t

K2.72111.0

For Fujinon ENG focus/zoom. Includes metal gear flange.
CLM-4/cforce plus Gear 48p, 75t

K2.0002044

For Panavision zoom.
CLM-4/cforce plus Gear m0.5, 80t

K2.72110.0

For Canon ENG focus/zoom. Includes metal gear flange.
CLM-4, cforce plus Gear m0.4/64p, 100t

K2.72109.0

For Panavision iris, Fujinon ENG iris, Canon ENG iris. Includes metal gear flange.
cforce plus Gear m0.8, 60t, 25mm

K2.0010365

25mm wide gear for moving lens barrels.
cforce plus Rod-to-Rod Adapter 15mm

K2.72106.0

15 mm rod adapter that attaches to CLM-4 and cforce plus motors.
cforce plus Rod-to-Rod Bridge 15mm

K2.72107.0

15 mm rod-to-rod adapter that attaches to CLM-4 and cforce plus motors.
cforce plus Rosette for Hill Bracket

K2.72113.0

Rosette adapter that connects CLM-4 and cforce plus motors to Hill brackets.
Motor offset console

K2.52035.0

Offset rod extension for tight spaces and small builds. Fits 19mm or 15mm support rods.

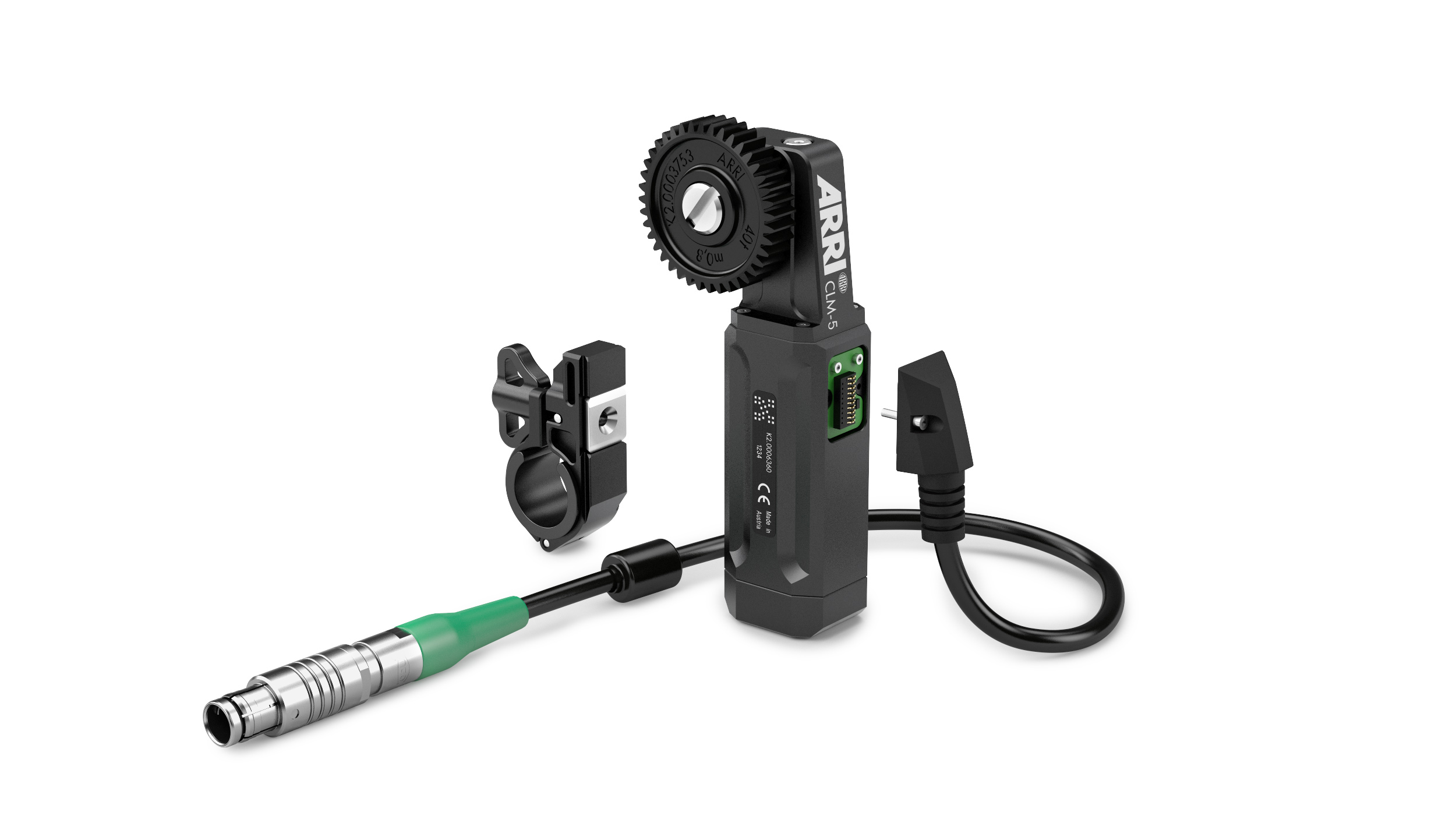

Controlled Lens Motor CLM-5

Controlled Lens Motor CLM-5 Basic Set

K2.0006361
- Show Components
CLM-5 Motor Unit

K2.0006360

CLM-5 motor unit without gears and bracket.
- Show Components

Accessories for CLM-5 Motors

CLM-5/cforce mini Clamp Console 19/15mm

K2.0006176

Compatible with CLM-5, cforce mini and cforce mini RF.
- Show Components
CLM-5/cforce mini Clamp Insert 19/15mm

K2.0006175

For 15 mm rods. The clamp insert is compatible to cforce mini, cforce mini RF, cforce plus and CLM-5 clamp consoles.
CLM-5/cforce mini Gear m0.8/32p, 40t

K2.0003753

For ARRI/Zeiss focus/iris/zoom, Panavision focus, Fujifilm PL focus/iris/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.8, 40t, 25mm

K2.0006372

25mm wide gear for moving lens barrels. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.4/64p, 80t

K2.0006367

For Panavision iris, Fujinon ENG iris, Canon ENG iris. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.5, 64t

K2.0006365

For Canon ENG focus/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear m0.6, 56t

K2.0006363

For Fujinon ENG focus/zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
CLM-5/cforce mini Gear 48p, 60t

K2.0006370

For Panavision zoom. Compatible with CLM-5, cforce mini and cforce mini RF.
cforce mini Clamp Console 2

K2.0036610

Compatible with ARRI's CLM-5, cforce mini, cforce mini RF, Operater Control Unit OCU-1 and cmotion's cPro motor. Includes: K2.0038503 1x cforce mini Clamp Insert 2 19/15mm ...
- Show Components
cforce mini Clamp Insert 2 5/8in

K2.0038504

Lens Data Encoder LDE-1

External lens encoder that connects to UMC-4 or ALEXA Plus motor sockets. Includes 19 mm rod clamp and magnetic inserts for use with 15 mm support rods. Compatible with CLM-3 inserts including the 5/8 inch inserts for Panavision rods.
