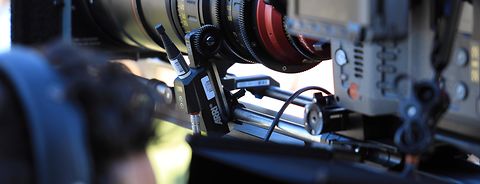

cforce Mini RF an Kamera (1)

cforce mini RF

Direct wireless control

Small and powerful

This integrated RF-EMIP radio module offers wireless connectivity directly to a Hi‑5 or similar hand unit, removing the need for bulky motor controllers. Lens data files are supported internally, and camera control of ARRI, Sony, and RED cameras is possible. The cforce mini RF offers a speed of 240 teeth/sec.

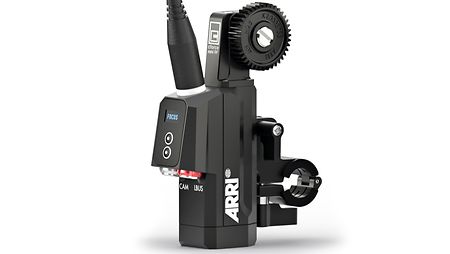

cforce-mini-RF_darkscreen

Integrated wireless module


  • Built-in white-coded RF radio module eliminates the need for an external motor-controller such as RIA‑1, AMC-1, UMC-4
  • Direct wireless control with up to three hand units for simultaneous F/I/Z/AUX control (compatible with Hi‑5, Hi‑5 SX, ZMU‑4, WCU‑4, and SXU-1)
  • Functions as a radio host, with 14 selectable RF channels for reliable operation
  • Allows compact camera builds, reducing system complexity and setup time

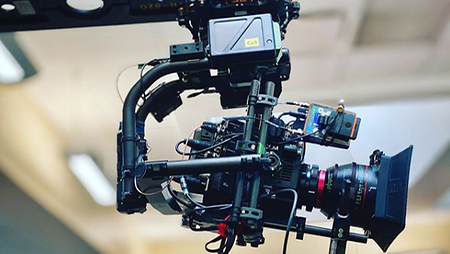

Brian_cforce mini RF_1

Versatile LBUS ecosystem


  • Daisy-chain capability via LBUS supports up to three additional motors (F/I/Z/AUX)
  • AUX axis assignment enables expanded control possibilities
  • Supports OCU‑1, Master Grips, and other hardwired LBUS devices
  • Supports override workflows with OCU‑1 and Master Grips in host mode
  • Direct camera connection enables run/stop and advanced camera control across ARRI, RED, Sony, Canon, and Blackmagic systems

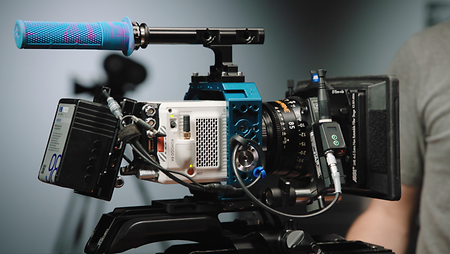

cforce mini RF with RED camera

Precise calibration


  • Wide calibration range to support large-diameter cine lenses
  • Manual calibration via Hi‑5/Hi‑5 SX for exact setting of lens end stops for focus/iris/zoom limits - ideal for sensitive lenses or lenses that lack hard stops
  • “Calibrate all” functionality for simultaneous multi-motor calibration
  • Encoder mode enables manual lens rotation while maintaining lens data recording

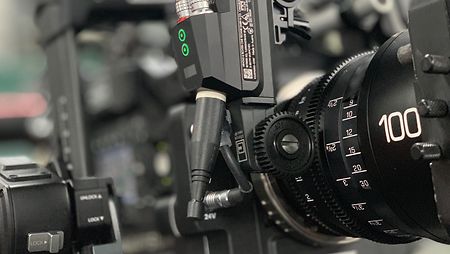

ARRI Australia cforce mini RF_2

Lens metadata in real time


  • The motor can store and utilize custom lens tables, facilitating accurate lens data even with non-LDS lenses
  • Lens metadata can be transfered into ARRI cameras, as well as non-ARRI cameras such as the Sony VENICE or VENICE 2
  • Supports ARRI’s extended camera data, including enhanced sensitivity, sensor mode, recording resolution, and sensor overdrive (ALEXA 35, ALEXA 35 Xtreme)

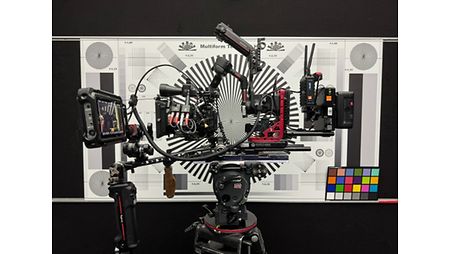

cforce mini RF_1

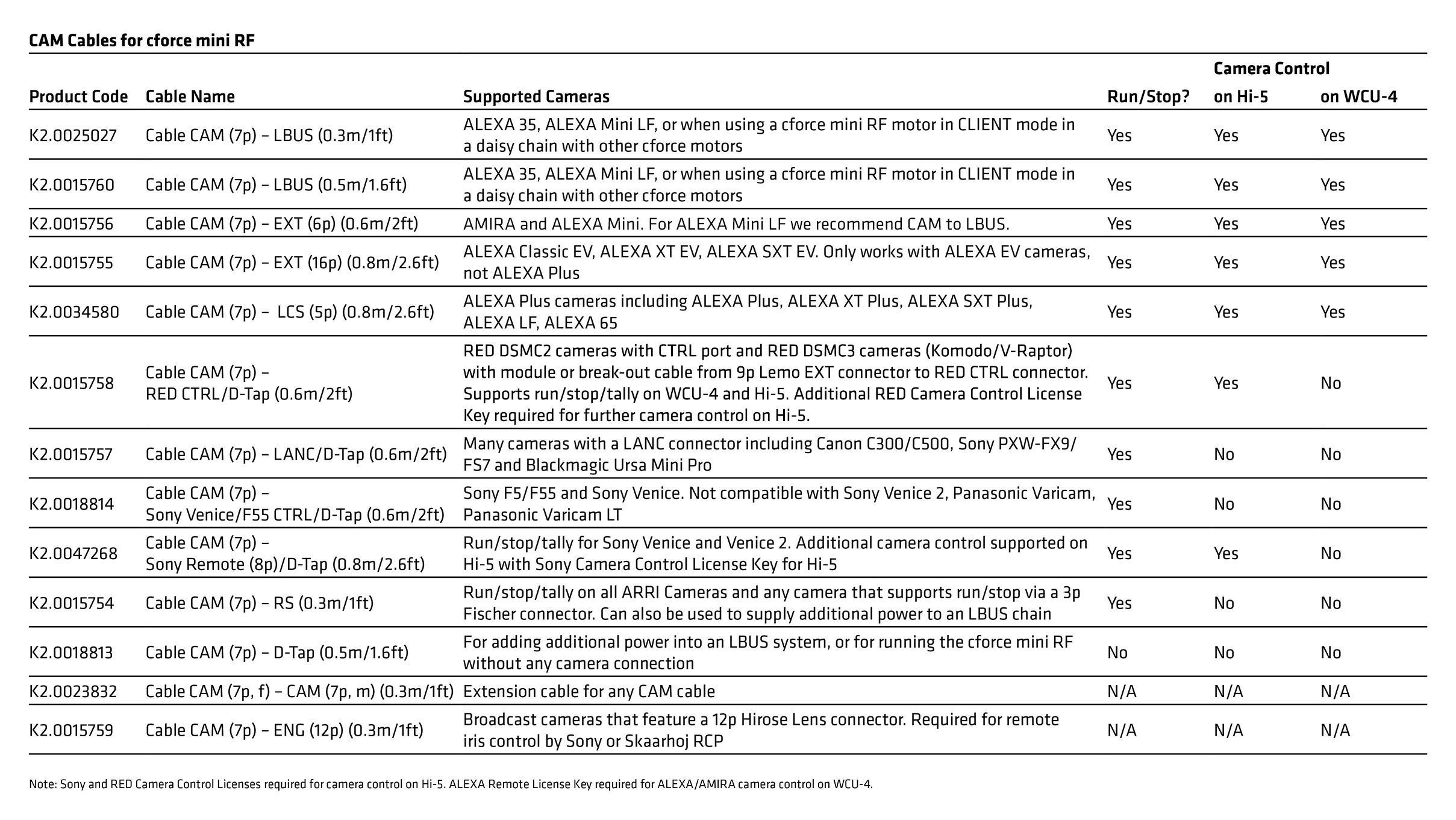

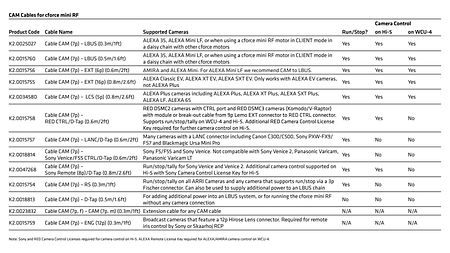

CAM cables for cforce mini RF
