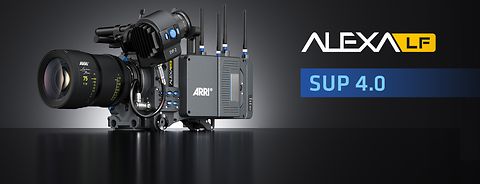

ALEXA LF Software Update Package 4.0

New anamorphic de-squeeze factors

  • 1.65x for Panavision Ultra Vista Anamorphic lenses
  • 1.80x for Cooke Anamorphic/i Full Frame Plus lenses

LBUS support

  • The LCS to LBUS cable (K2.0007318) allows use of ARRI LBUS accessories
  • Including cforce mini motors, Operator Control Unit OCU-1 with override, Master Grips, LCUBEs and others

Other Features

  • EXT Sync: sensor sync and settings sync
  • Separate MAGNIFY values for each sensor mode
  • Project frame rate changes sensor and SDI frame rates
  • Improved dynamic defect pixel correction

PLEASE NOTE that the ALEXA LF 3.0 Software & Hardware Upgrade is a prerequisite for updating ALEXA LF cameras with LF SUP 4.0. If you still have an ALEXA LF with LF SUP 2.0, contact ARRI Service to schedule the ALEXA LF 3.0 Software & Hardware Upgrade.

If you already have LF SUP 3.0, simply download the LF SUP 4.0 and install it on your ALEXA LF:

    • If your ALEXA LF has LF Software Update package (SUP) 2.0 or 2.1: contact ARRI Service to schedule your free upgrade to "ALEXA LF 3.0 Software and Hardware". More details about the "ALEXA LF 3.0 Software and Hardware" upgrade can be found here. As part of the upgrade, ARRI service will then also install LF SUP 4.0.
    • If your ALEXA LF has LF SUP 3.0: Download the LF SUP 4.0 and install.
  • See table above

  • Yes, since LF SUP 4.0 the ALEXA LF supports ARRI LBUS accessories. By connecting an LCS to LBUS cable (Cable LCS (5p) - LBUS (0.8m/2.6ft) - K2.0007318) to one of the two LCS connectors on the ALEXA LF, it is now possible to use the majority of ARRI LBUS accessories with the ALEXA LF. LBUS devices can daisy chain, but it is also possible to connect one cable each to the two ALEXA LF LCS connectors to support even more LBUS devices.

    LBUS accessories compatible with ALEXA LF are:

    • cforce mini lens motors
    • cforce plus lens motors
    • cforce mini RF lens motors

    - Needs cforce mini RF SUP 1.1

    - The cforce mini RF motor must be set to "client mode". Then it works like a cforce mini motor without the RF functionality, which the ALEXA LF has built-in anyway.

    • Master Grips

    - Needs at least Master Grip/OCU-1 SUP 1.1.2

    - For override function it needs Master Grip/OCU-1 SUP 2.0

    • Operator Control Unit OCU-1

    - Needs Master Grip/OCU-1 SUP 2.0

    • LCUBE CUB-1

    - With the CUB-1 it is possible to connect an ARRI Ultrasonic Distance Measure (UDM) to an LBUS connector. While a different cable can also connect the UDM directly to the ALEXA LF EXT connector, the CUB-1 option might come in handy if the EXT connector is in use otherwise (e.g. for sensor sync, for instance).

    • LCUBE CUB-2

    - The CUB-2 allows an ARRI LBUS device (for instance the Master Grips or Operator Control Unit OCU-1) to control the internal motors in ENG lenses.

    • cmotion pan-bar zoom
    • cmotion steady zoom
    • cmotion cfinder III

    Please note that when using cforce motors with ALEXA LF, separate power must be provided to the cforce lens motors from the other side of the daisy chain, for instance from an LBUS to D-tap cable (LBUS - D-Tap - K2.0006758) connected to an on-board battery. This is because the power output from the ALEXA LF LCS connectors cannot provide sufficient power to the cforce motors. If cforce motors are powered from the LCS connectors, calibration may malfunction, fast motor movements may result in stuttering motor movements and a whining noise could be generated during slow motor speeds.

    Please note that for OCU-1 override function, the WCU-4 needs WCU-4 SUP 3.2 (planned for Q4 2018).

  • The EVF-2 requires an ALEXA LF with software LF SUP 3.0 or later. All ALEXA LF cameras shipping from availability of LF SUP 3.0 on will be delivered with the EVF-2. The EVF-2 will not work with ALEXA LF with LF SUP 2.0/2.1 or with any other ALEXA model.

  • Yes, from LF SUP 4.0 on, the ALEXA LF supports EXT Sync. Like in the Super 35 ALEXA cameras, the ALEXA LF supports precise synchronization of two sensors (Sensor Sync) and of the settings of two ALEXA LF cameras (Settings Sync) for 3D shooting or other applications that require a tight synchronization of the sensors.

  • When first released, the ALEXA LF (with Software Update Package (SUP) 2.0 or 2.1) could record to SXR Capture Drives 1TB and 2 TB (ProRes or ARRIRAW). Since LF SUP 3.0 it can also can record to SxS PRO+ 256 GB cards (ProRes only).
