Sony VENICE Extension System Mini I ARRI Pro Camera Accessories

Inspired by real-world production challenges. Designed to solve them.

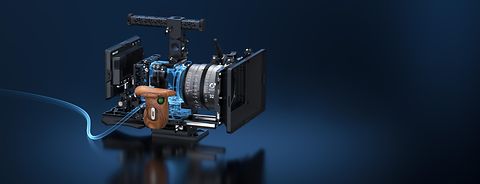

Meet ARRI's Support System for the Sony Venice Extension System Mini camera, featuring a lightweight, compact, and highly versatile cage design with top plate, base plate, side brackets, back plate, and dedicated top handle. The system also includes newly designed ergonomic handgrips, specially developed for the Sony Venice Extension System Mini.

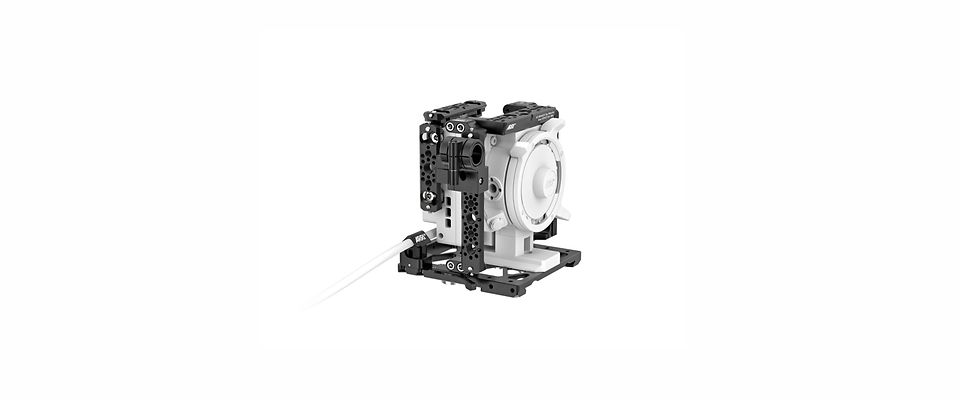

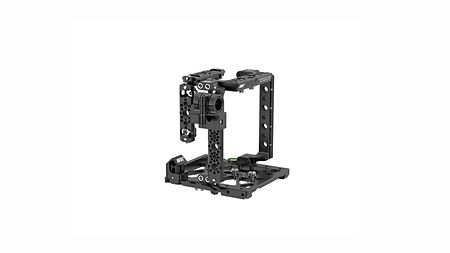

KK.0054193 Basic Set for Sony VENICE Ext Mini - camera

Build your rig. Your way.

Embodying the proven quality and durability of ARRI Pro Camera Accessories, the cage is engineered for tough shooting conditions and ensures total reliability on set – whether handheld, tripod-mounted, on a gimbal, or in a car rig. Built for Sony Venice Extension System Mini; ready for anything.

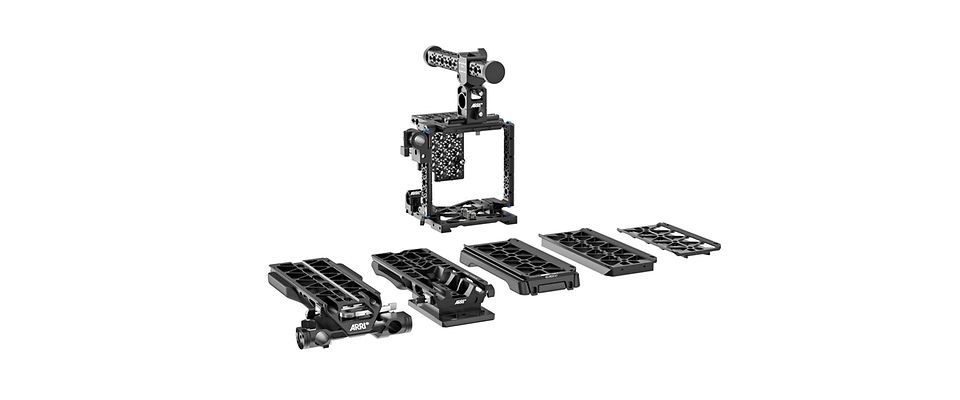

Sony VENICE Ext Mini - Multi Base Plate Image

New BUD base plate

Fully compatible with all ALEXA 35 base plates and ARRI SAM plates, the Balance Utility Dovetail (BUD) system supports quick transitions between tripod, stabilizer, and handheld setups while ensuring optimal camera balance. A second BUD base plate can be added to a side bracket for vertical 9:16 shooting, and an integrated cable clamp protects the camera’s tethering cable.

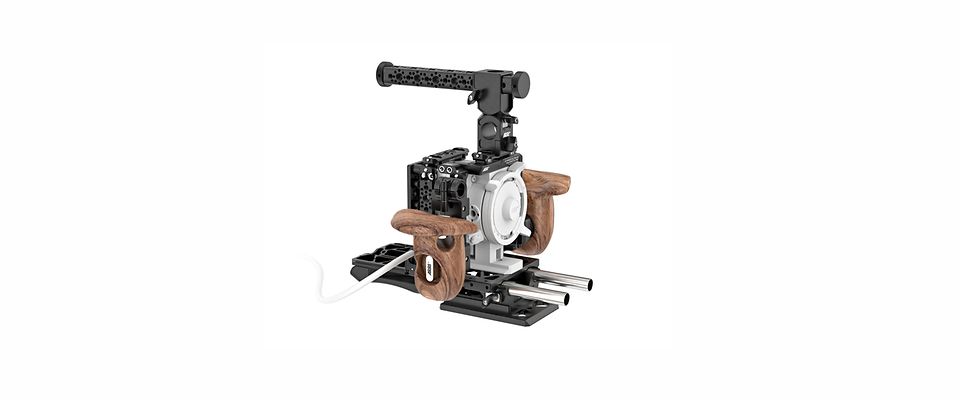

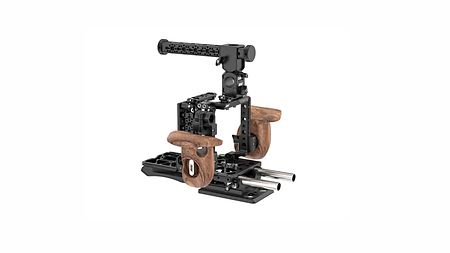

KK.0054192 Pro Set for Sony VENICE Ext Mini - camera

Ergonomic Wooden Handgrips

Made from responsibly sourced walnut, ARRI’s new WHG-3 handgrips provide comfortable hand placement while operating. They can be mounted tool-free via the integrated M6 thumb screw and feature a standard ARRI rosette for universal compatibility.

Unhindered access to the camera’s filter slot

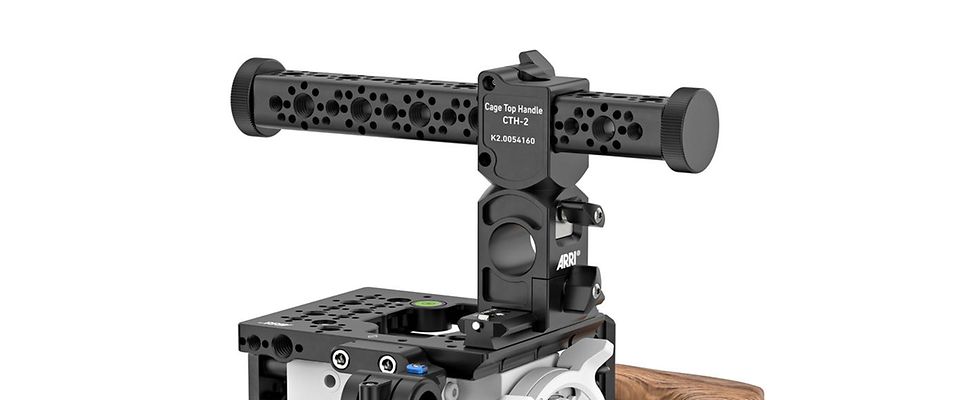

The new top plate includes an opening to allow unhindered access to the camera’s filter slot. This works in tandem with the new CTH-2 top handle, which rotates through 360° so camera assistants can quickly swing it aside for a filter change and return it to the desired position without affecting the balance of harnesses like the Easyrig.

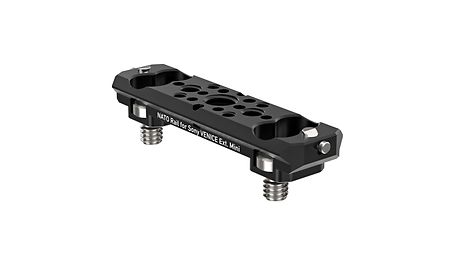

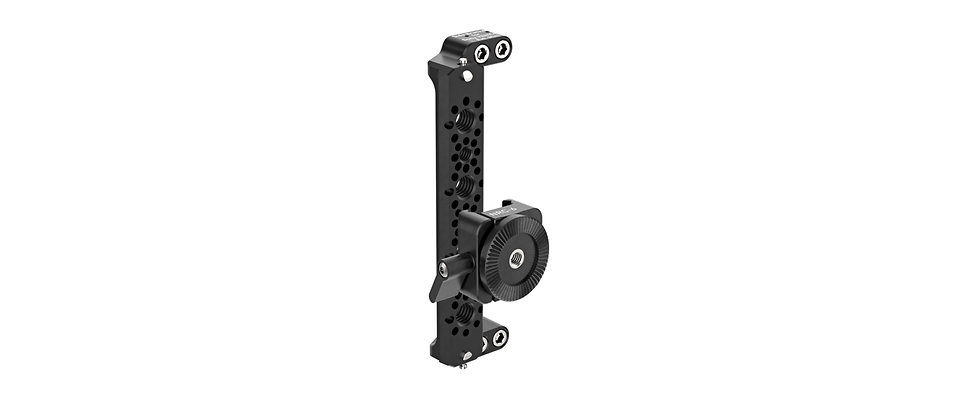

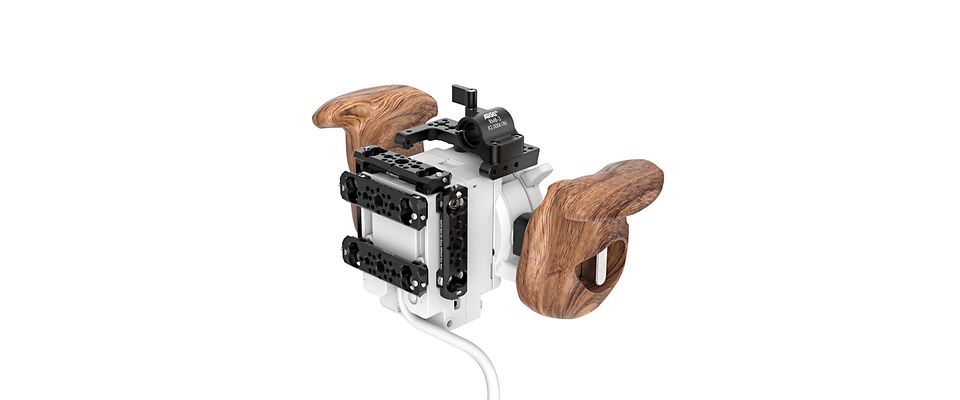

NATO rail integration

The side brackets are designed as NATO rails and feature an integrated safety release mechanism, enabling quick and tool-less attachment of ARRI NATO rail clamps such as the new NRC-6, which offers a quick-release ARRI rosette for handgrips.

Optimized mounting versatility

Featuring multiple Pin-Lock 3/8"-16 and 1/4"-20 mounting points, as well as M4 pairs for commonly used brackets, the cage system offers personalized setups and complete compatibility with the ARRI ecosystem. All screws follow the ARRI Multi-Hex standard and support multiple hex keys, including 3 mm, 4 mm, 5 mm, or 5/32”.

Sets

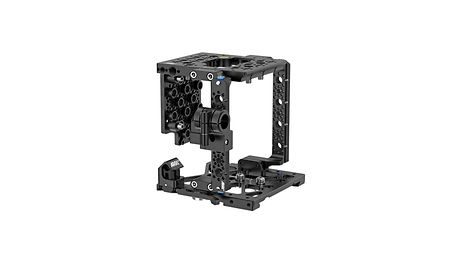

Basic Set for Sony Venice Extension Mini

KK.0054193
- Show Components

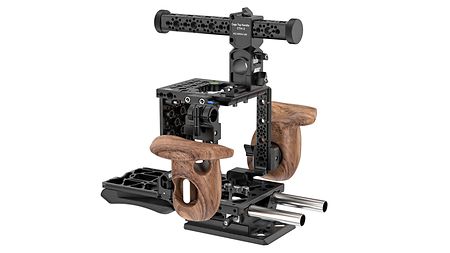

Pro Set for Sony Venice Extension Mini

KK.0054192
- Show Components

Individual parts

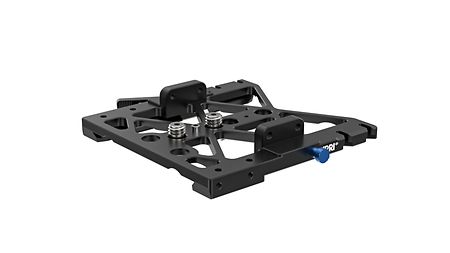

Base Plate for Sony Venice Extension Mini

K2.0054187

The Base Plate is designed as a Balance Utility Dovetail (BUD) and mounts directly to the underside of the camera. Its integrated dovetail enables extensive fore-aft balanc...

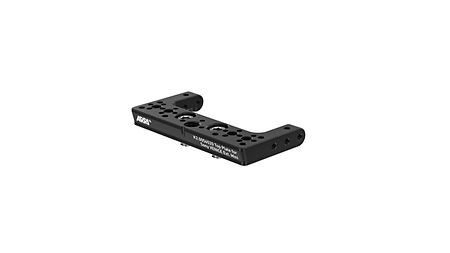

Top Plate for Sony Venice Extension Mini

K2.0054178

Lightweight design with cut-out for unobstructed access to the drop-in ND cartridge system at the camera. The Top Plate is attached to the Sony Venice Ext. Mini with four A...

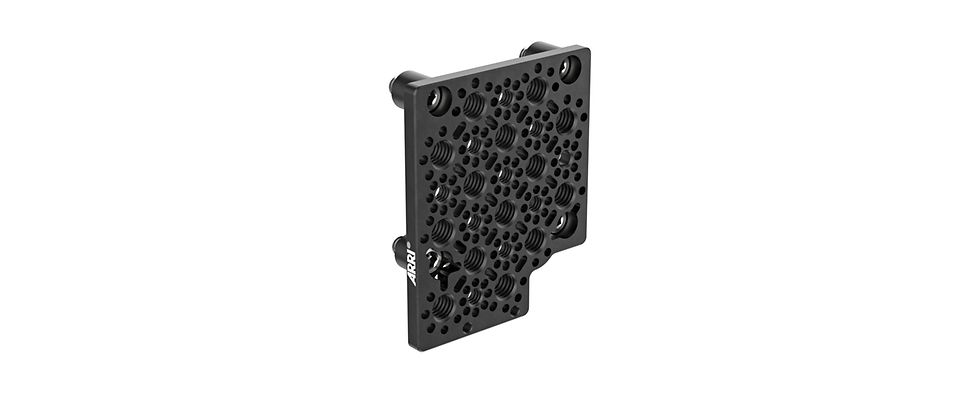

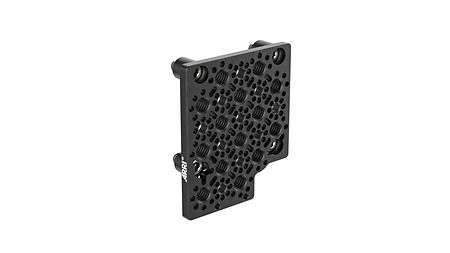

Back Plate for Sony Venice Extension Mini

K2.0054189

The Back Plate is attached to the Sony Venice Ext. Mini at the top of the back with four ARRI Multi-Hex screws. It offers multiple interfaces (ARRI Pin Lock 3/8 and 1⁄4 inc...

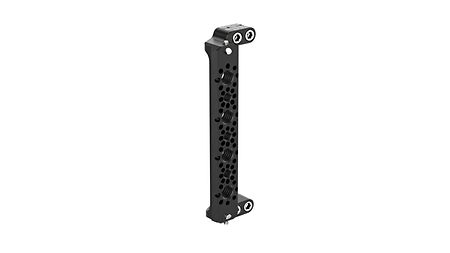

Side Bracket for Sony Venice Extension Mini

K2.0054179

Offers protection and the possibility to attach accessories. NATO Rail included with safety release mechanism. Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 an...
NATO Rail Clamp NRC-6 (Rosette)

K2.0054184

ARRI rosette attachment bracket for hand grips to be used with NATO rails. Allows smooth vertical adjustment along the rail for flexible positioning and comfort.

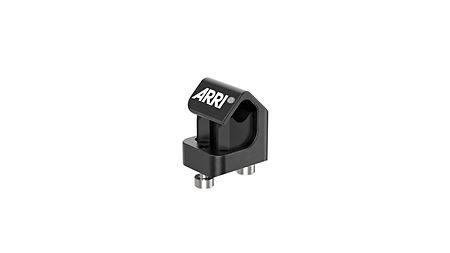

Cable Clamp for Sony Venice Extension Mini

K2.0054201

The Cable Clamp provides strain relief for the cable connecting the Sony Venice Extension System Mini to the camera body and recording unit. It can be mounted to the right,...

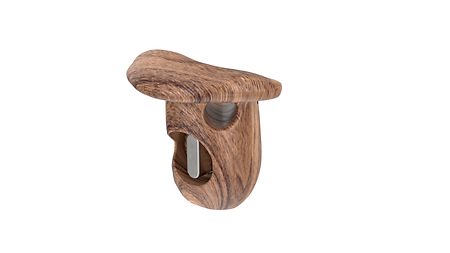

Wooden Handgrip WHG-3 right

K2.0054216

Ergonomically shaped wooden handgrip providing comfortable hand placement during operation, and they’re made from responsibly sourced walnut. It can be mounted tool-free vi...

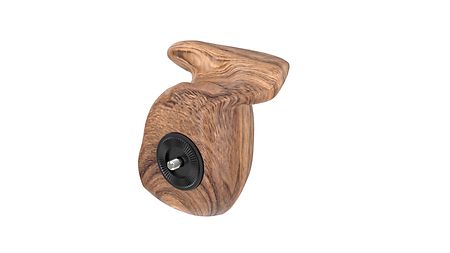

Wooden Handgrip WHG-3 left

K2.0054215

Ergonomically shaped wooden handgrip providing comfortable hand placement during operation, and they’re made from responsibly sourced walnut. It can be mounted tool-free vi...
Cage Top Handle CTH-2

K2.0054160

A 360° rotatable top handle designed as a classic T-handle, mounted on a NATO rail and adjustable along both the X-axis (forward/backward) and Y-axis (left/right) for optim...

Recommended products

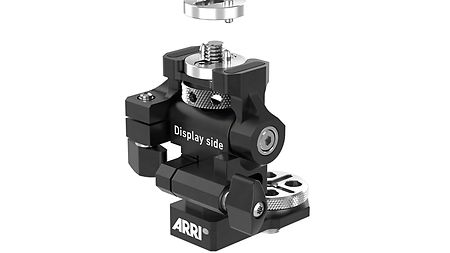

Monitor Arm for Camera MAC-1

K2.0048394

The two-axis MAC-1 monitor arm allows for rapid positioning of the CCM-1 without affecting the horizon relative to the camera. The MAC-1 features an adjustable friction sys...

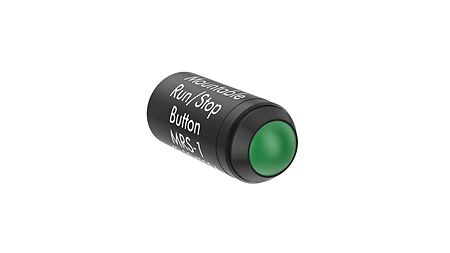

Mountable Run Stop Button MRS-1

K2.0045006

Provides camera REC start/stop functionality and fits into any standard 19mm rod opening.

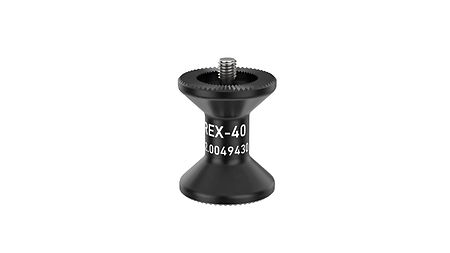

Rosette Extension REX-40

K2.0049430

Offsets ARRI rosettes with a short aluminum rod that extends the handgrip 40mm / 1,57in further from the camera body, either to the left or right. ARRI Multi-Hex screw impl...

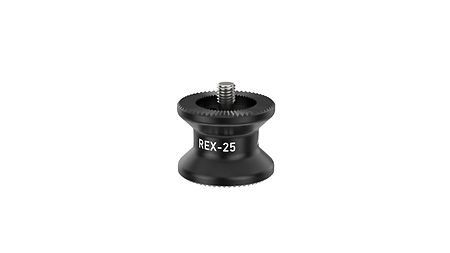

Rosette Extension REX-25

K2.0048040

Offsets ARRI rosettes with a short aluminum rod that extends the handgrip 25mm / 0,98in further from the camera body, either to the left or right. ARRI Multi-Hex screw impl...
Handle Extension Set

KK.0037820

The Handle Extensions follow the design of the Camera Center Handle CCH-4. The number of each HEX refers to the number of 3/8”-16 interfaces on the top (HEX-1 has one and H...
- Show Components
Wooden Shell for HEX

K2.0037131

The Wooden Shell is part of ARRI´s Handle Extension family. It improves the haptic and can be attached directly to the HEX-5 or HEX-4. It can also be combined with the shor...
Plastic Shell for HEX

K2.0037132

The Plastic Shell is part of ARRI´s Handle Extension Family. It improves the haptic and can be attached directly to the HEX-5 or HEX-4 but also to combined shorter HEX thro...
Handle Extension HEX-1

K2.0019791

The HEX-1 is the shortest part of ARRI´s Handle Extension family. It follows the design of the Camera Center Handle CCH-4 and offers 3/8”-16 and RMB-3 interfaces. The diffe...
Handle Extension HEX-2

K2.0019792

The HEX-2 is part of ARRI´s Handle Extension family. It follows the design of the Camera Center Handle CCH-4 and offers a number of 3/8”-16 and RMB-3 interfaces. The differ...
Handle Extension HEX-3

K2.0019797

The HEX-3 is part of ARRI´s Handle Extension family. It follows the design of the Camera Center Handle CCH-4 and offers a number of 3/8”-16 and RMB-3 interfaces. The differ...
Handle Extension HEX-4

K2.0019798

The HEX-4 is part of ARRI´s Handle Extension family. It follows the design of the Camera Center Handle CCH-4 and offers a number of 3/8”-16 and RMB-3 interfaces. The differ...
Handle Extension HEX-5

K2.0036917

The HEX-5 is the longest part of ARRI´s Handle Extension family. It follows the design of the Camera Center Handle CCH-4 and offers a number of 3/8”-16 and RMB-3 interfaces...
Handle Extension HEX-90

K2.0019810

The HEX-90 is part of ARRI´s Handle Extension family. It can be used to extend the handle system behind the camera or battery downwards to build a so-called "Hollywood Hand...
15mm LWS Rod Console

K2.65264.0

Can be mounted to several ARRI support accessories and offer optional front and rear or top mounted 15mm LWS rods.

Technical data


Weight:	0.62 kg / 1.38 lbs Basic Set for Sony Venice Extension Mini 1.60 kg / 3.53 lbs Pro Set for Sony Venice Extension Mini
Mounting Points:	ARRI Pin Lock 3/8", 1/4", and M4
