Powerful and extremely flexible

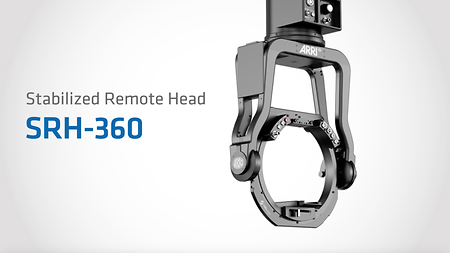

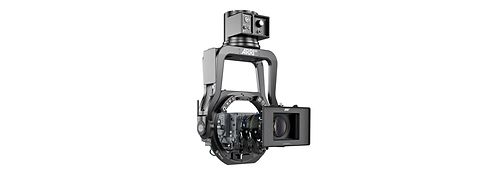

The SRH‑360 is an upgraded version of ARRI's SRH‑3.
The major improvement with the SRH‑360 is to the pan axis functionality: A new slip ring permits unlimited rotation of the head. At the same time, the torque of the pan motor has been increased by 50%, allowing it to compensate for powerful centrifugal forces when shooting high-speed camera moves. This makes the SRH‑360 even more flexible for dynamic environments such as action, stunts, vehicle work, sports, and live music performances.
Stabilized Axis | 3 (Pan, Tilt, Roll) |
Max. Payload | up to 30Kg/66lbs |
Height | 65,2cm/25.67in |
Width | 41,2cm/16.22in |
Depth Head | 15 cm/5.9in |
Depth Base | 24,6cm/9.68in |
Ring Diameter | 26cm/10.23in |
Ring Height centre | 20,9cm/8.23in |
Weight | 11,6Kg/25.57lbs |
Max. Tilt Range | +60° / - 110° |
Max. Roll Range | +/- 90° |
Max. Pan Range | Slip Ring, Unlimited |
Max. Pan Rate | 240° / Sec. |
Max. Tilt Rate | 240° / Sec. |
Operating Voltage Head | 24V - 36V |
Output Camera | 12V & 24V |
Current | 10 Amps |
LBUS socket | Yes |
RS socket | Yes |
Video | up to 12 G single link support |
SAM plates compatible | Yes |
Environmental | -20° to +50° / -4° F to 122° F |
